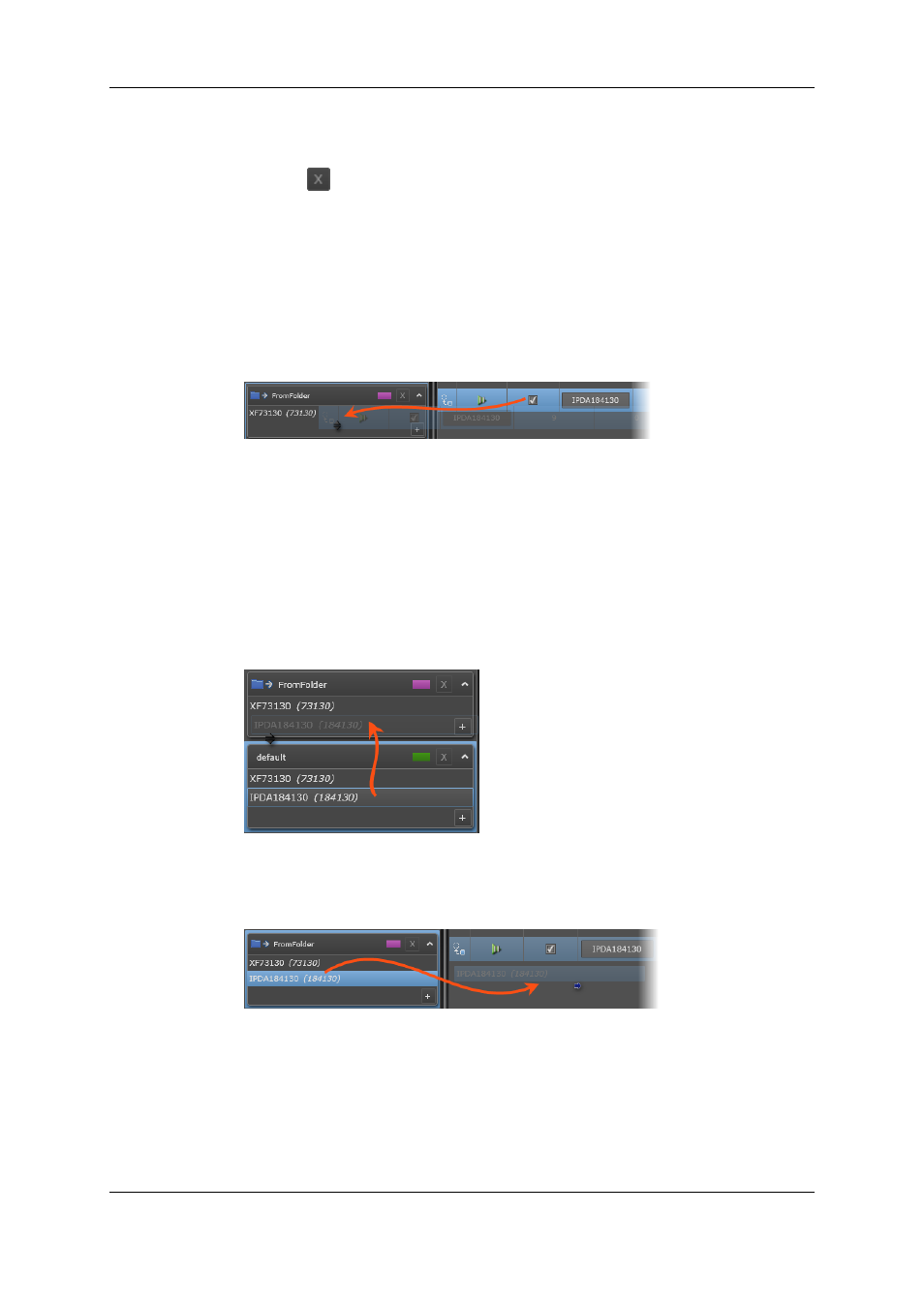

Remove a cluster
• Click the button next to the cluster name you want to remove.
The cluster is removed, and the orchestration configuration of the engines associated to
this cluster is updated accordingly.
Add an engine to a cluster
You can assign an engine to several clusters, and several engines to the same cluster.
• Drag the engine from the Engine area and drop it into the requested cluster in the
Cluster area:
If the engine assigned to a cluster is already assigned to another cluster, the engine will
not be removed from the originally assigned cluster. The workload on this engine will be
spread among two clusters, and you have to define this in the Orchestration field in the
Engine area (See section "Configuring Engines" on page 37).
Move an engine from a cluster to another cluster
You can remove an engine from a cluster and assign it to another cluster as follows:
• Drag the engine from the cluster it should be removed from and drop it to the cluster it
should be added to:
Remove an engine from a cluster
• Drag the engine from the Cluster box and drop it into the Engine area:
