Area Description
The table below describes the various parts of the Orchestration window:
Part Name Description
1. Cluster area Area displaying the defined clusters. You can add new clusters
from there.
See section "Cluster Area" on page 27 and "Managing Engine
Clusters" on page 35.
2. Engine area Area displaying metadata on all engines associated to Xsquare.
See section "Engine Area" on page 30 and "Configuring
Engines" on page 37.
3. Selected
Cluster
Information
area Area displaying detailed information on the engine selected in
the Engine area.
See section "Selected Cluster Information Area" on page 32.
4. Action
buttons Buttons allowing users to save/cancel, undo/redo actions
performed in the Orchestration window. You will find a short
description of each button in the table below.

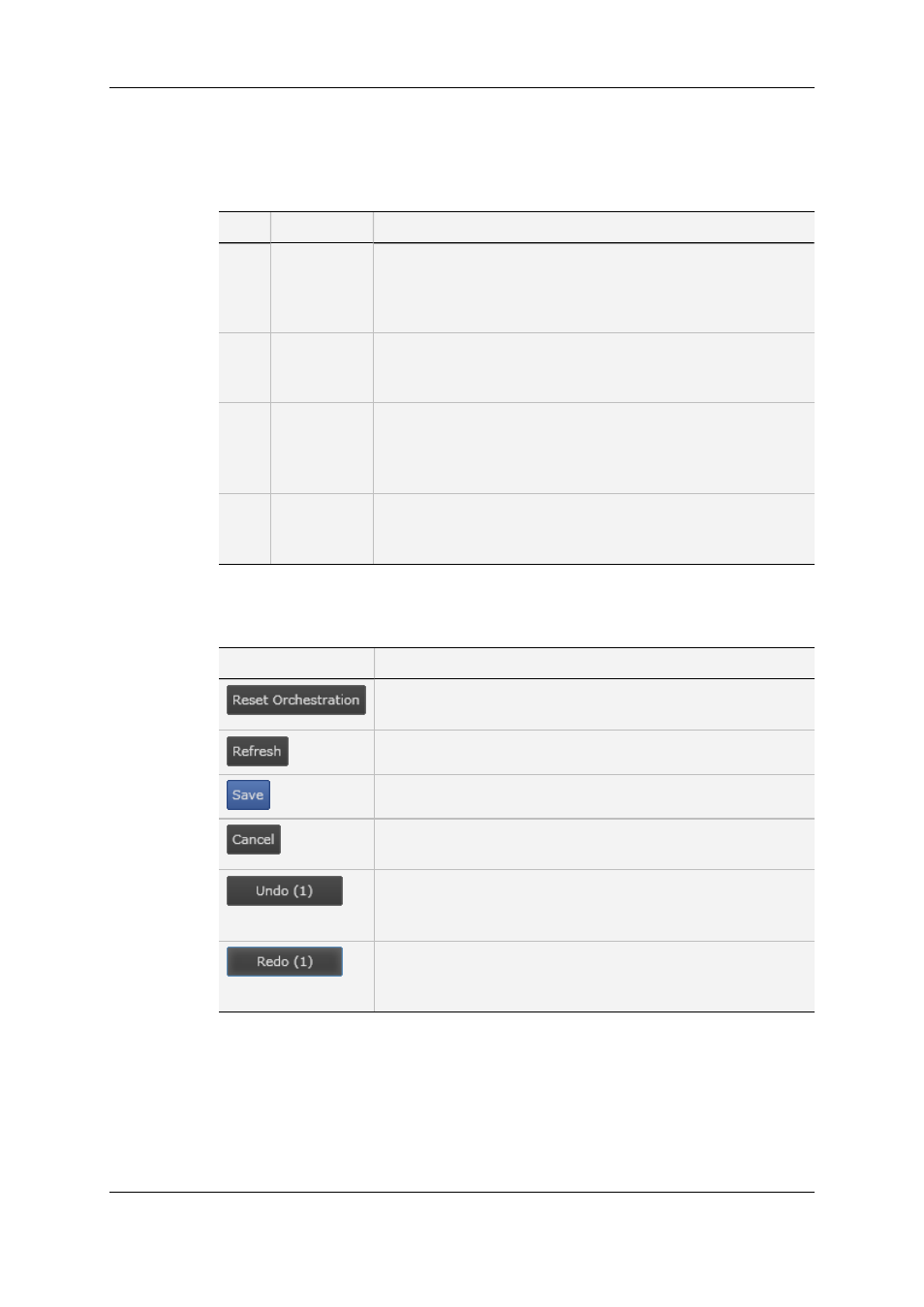

General Action Buttons
Button Description
Resets the orchestration configuration to the default values
(single default cluster, no engine configuration).
Refreshes the Orchestration window.
Saves the actions performed in the Orchestration window.
Cancels all actions performed in the Orchestration window
since the save or since you opened the window.
Allows to undo, one by one, the actions stored in the undo
buffer. The number of actions in the buffer is specified between
brackets.
Allows to redo, one by one, the actions stored in the redo buffer.
The number of actions in the buffer is specified between
brackets.
