P-334WHD User’s Guide
Chapter 17 UPnP 183

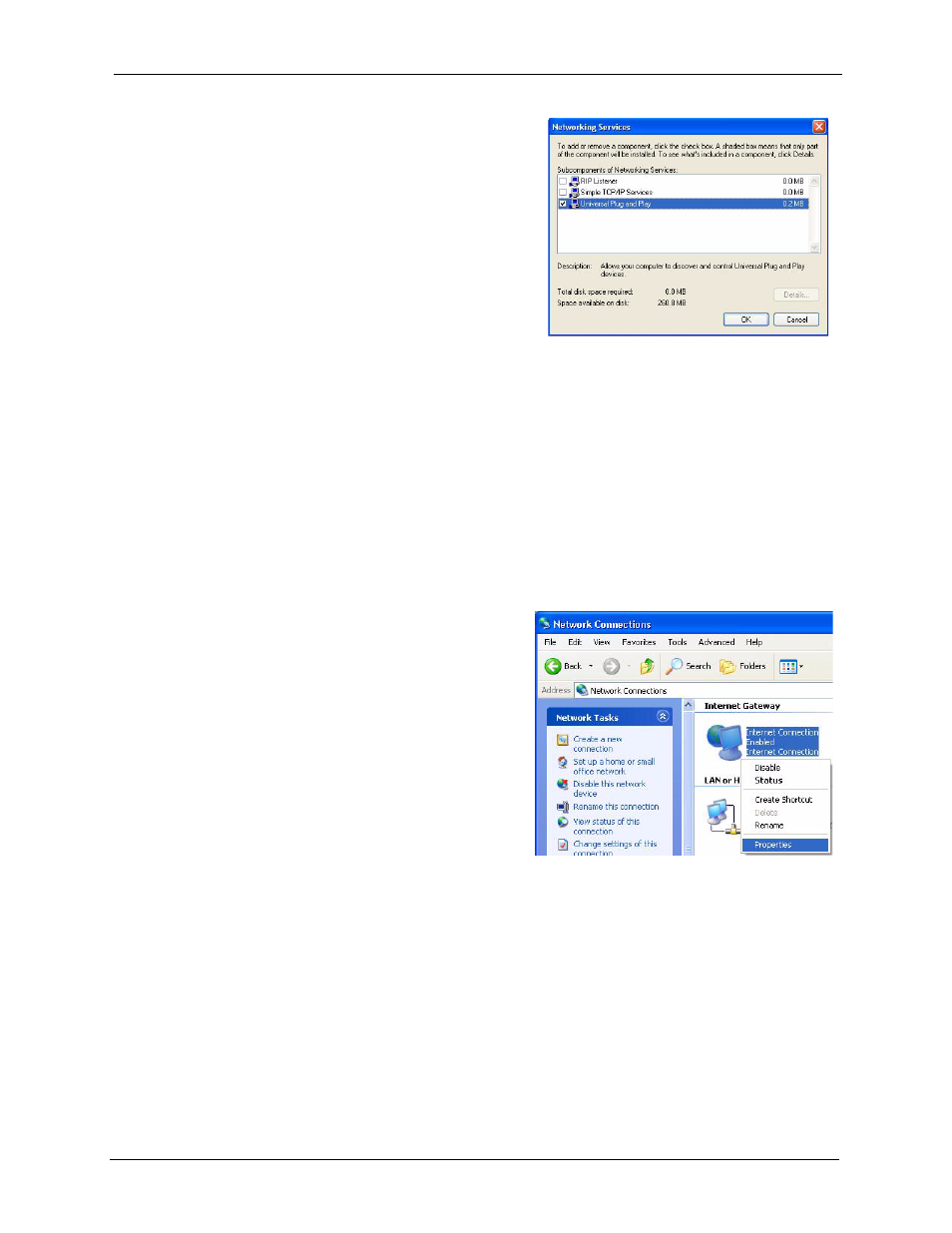

5 In the Networking Services window,
select the Universal Plug and Play check
box.
6 Click OK to go back to the Windows
Optional Networking Component
Wizard window and click Next.
17.5 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have
UPnP installed in Windows XP and UPnP activated on the ZyXEL device.
Make sure the computer is connected to a LAN port of the ZyXEL device. Turn on your
computer and the ZyXEL device.
17.5.1 Auto-discover Your UPnP-enabled Network Device
1 Click Start and Control Panel. Double-
click Network Connections. An icon
displays under Internet Gateway.
2 Right-click the icon and select
Properties.
3 In the Internet Connection Properties window, click Settings to see the port mappings
that were automatically created.
4 You may edit or delete the port mappings or click Add to manually add port mappings.
Note: When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
