Prestige 643 ADSL Router
Hardware Installation & Setup 2-1
Chapter 2
Hardware Installation & Initial Setup
This chapter describes the physical features of the Prestige and how to make cable connections .
2.1 Front Panel LEDs of the P643
The LED indicators on the front panel indicate the operational status of your Prestige. The table below the
diagram describes the LED functions:

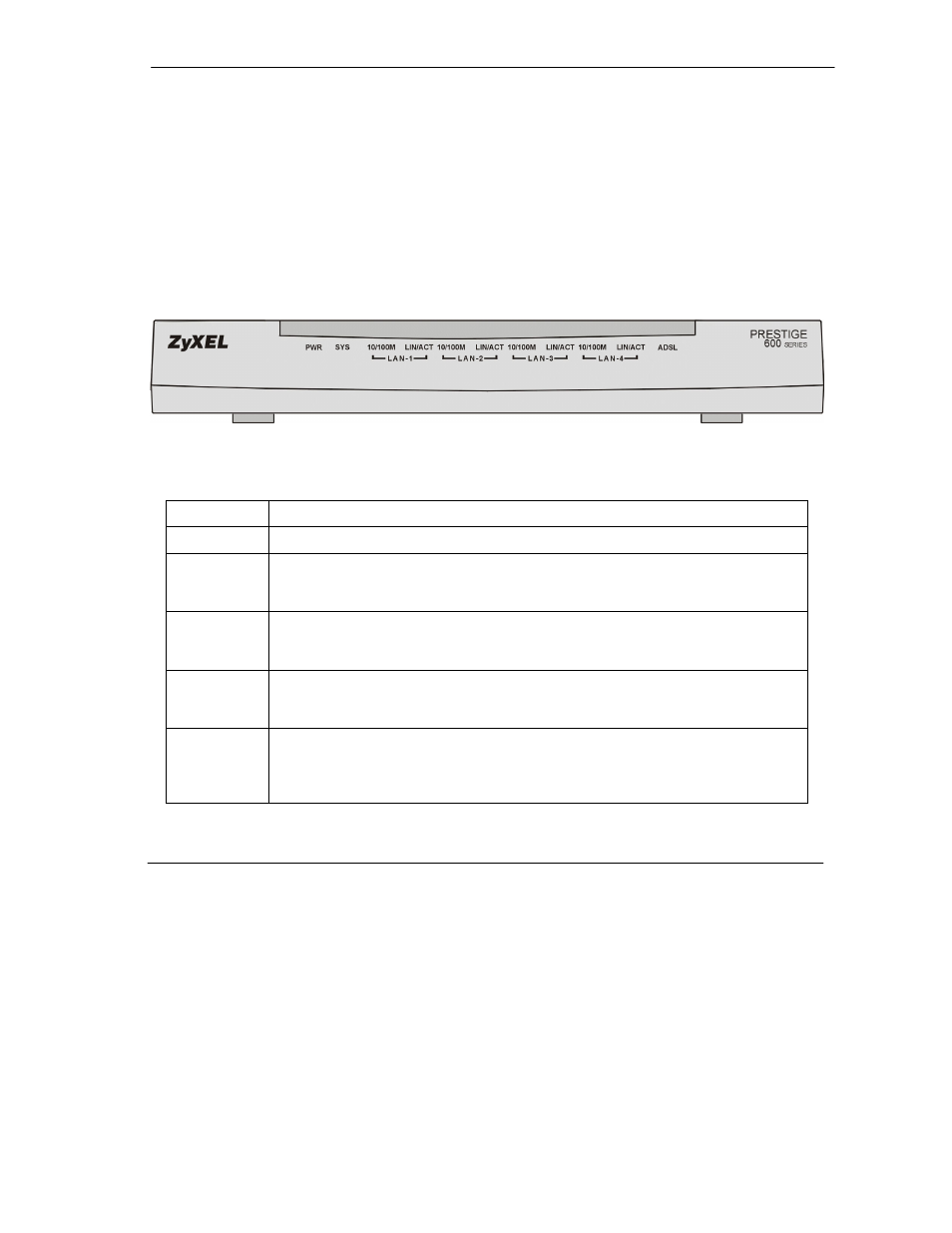

Figure 2-1 Prestige 643 Front Panel.
Table 2-1 Front Panel LED Description
LED NAME DESCRIPTION
PWR The PWR (Power) LED is on when power is applied to the Prestige.
SYS The SYS (System) LED is on when the Prestige is functioning properly.
The SYS LED blinks when the Prestige is rebooting.
The SYS LED is off when the system is not ready or has malfunctioned.
LAN 10/100M The LAN (Local Area Network) 10/100M LED is on when the Prestige has a
successful 100Mb Ethernet connection.
The LAN LED is off when the Prestige has a successful 10Mb Ethernet connection.
LIN/ACT The LIN/ACT LED is on when the Prestige has a successful Ethernet connection.
The LIN/ACT LED blinks when data is sent or received.
The LIN/ACT LED is off when the system is not ready or has malfunctioned.
ADSL The ADSL (Asynchronous Digital Subscriber Line) LED is on when the Prestige is
linked successfully to a DSLAM.
The ADSL LED blinks when initializing or when data is sent/received.
The ADSL LED is off when the link is down.
