3-4 I/O Circuits
3-4-2 I/O circuit and connection example

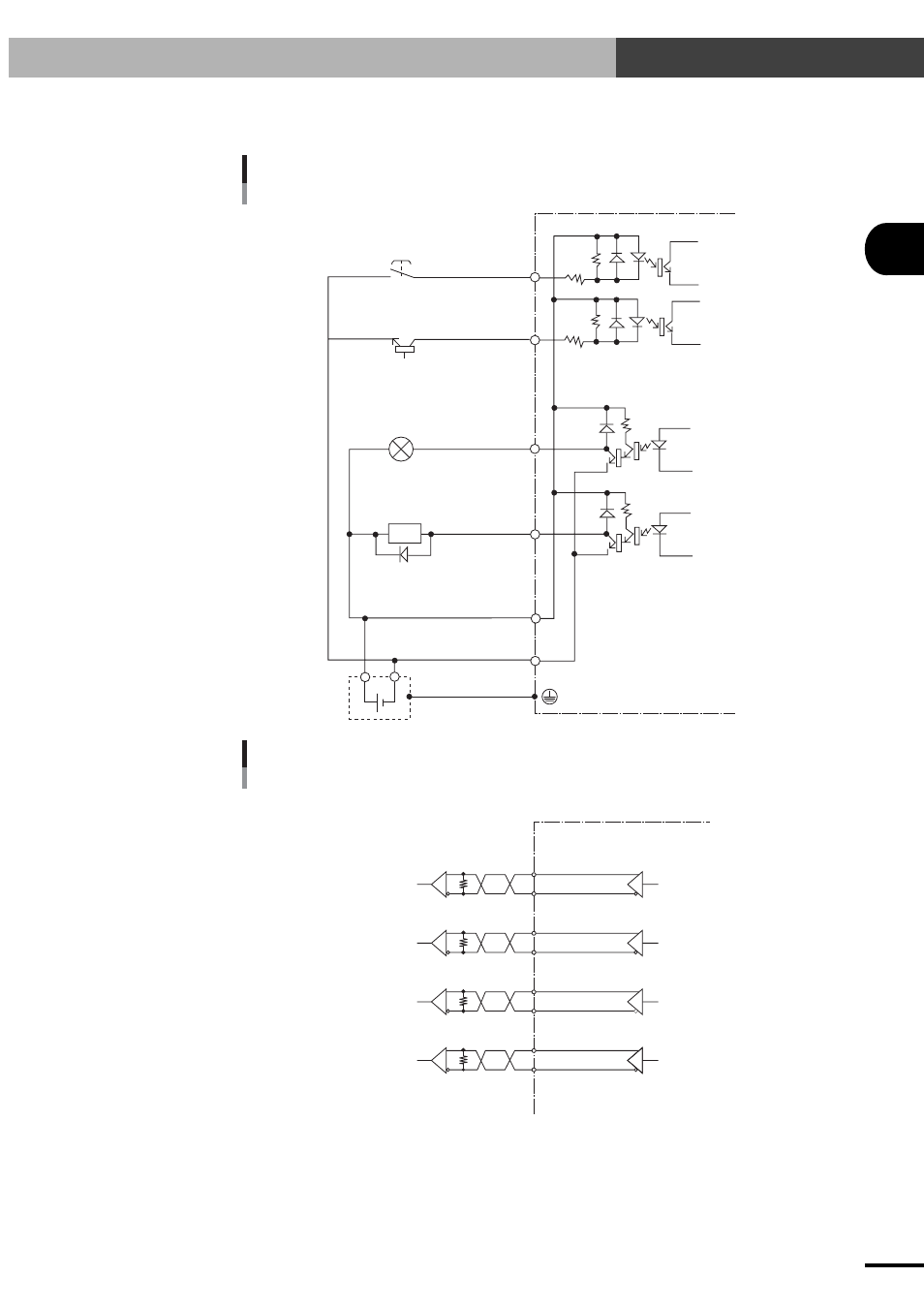

I/O circuit and connection example
External DC24V
power supply
Push-button
NPN transistor
Incandescent lamp
Solenoid valve
Input signal
Photocoupler
Output signal
Controller side
DI
DO
DO
DI
24V
24G
FG
+
-
Pulse output circuit connection example
26LS32 or equivalent
26LS31 or equivalent
Controller side
PA+
PA-
PB+
PB-
PZ+
PZ-
PZM+
PZM-
