PKG-PRC007-EN
48

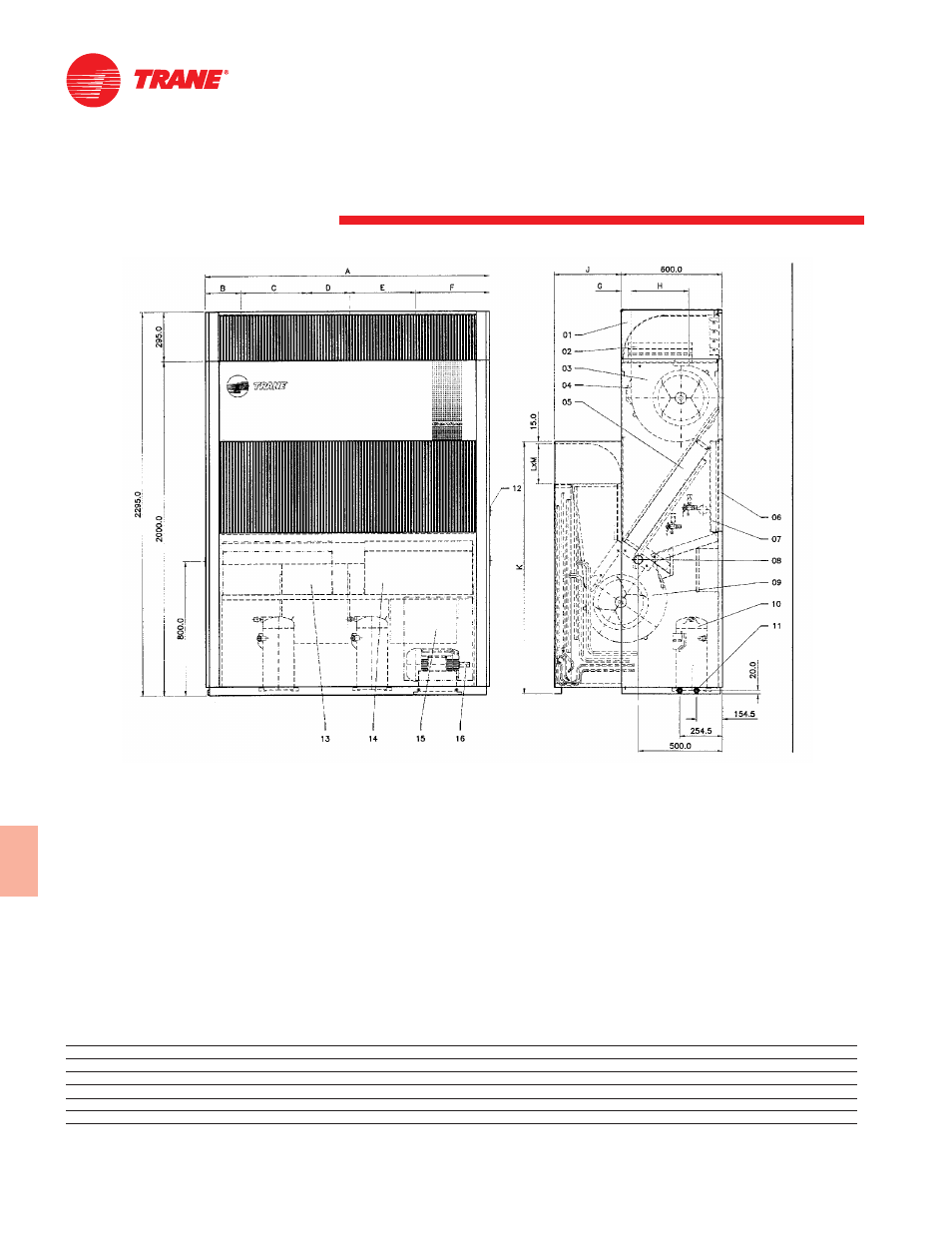

01 - Plenum box with optional supply screen
02 - Resistor box for heating (optional)
(control and power panel for external heating)
03 - Double [intake / exhaust] (evaporator) Centrifugal fan
04 - Supply motor
05 - Evaporating coil
06 - Return screen (optional)
07 - Filters
08 - Spacing for energy intake wire f 46.5 (right/left)
09 - Double [intake / exhaust] (condenser) Centrifugal fan
10 - Scroll compressor
11 - Drain f 1/2” BSP (left)
12 - Spacing for remote thermostat wire f 46.5
13 - Electric panel for electric control model 100/125/150 (optional)
14 - Electric panel
15 - Electric panel for electric control model 050/075 (optional)
16 - Shell and tube condenser
Dimensions
SRVE
Model
A
B
C
D
E
F
G
H
J
K
L
M
050
38 (960)
9 (230)
13 (333)
–
–
16 (397)
5 (127)
11 (289)
5 (120)
47 (1180)
10 (258)
36 (920)
075
47 (1190)
15 (367)
16 (396)
–
–
17 (427)
2 (57)
13 (341)
5 (120)
47 (1180)
10 (258)
45 (1150)
100
59 (1500)
7 (175)
13 (333)
9 (230)
13 (333)
17 (429)
5 (127)
11 (289)
9 (230)
48 (1210)
10 (247)
58 (1460)
125
67 (1700)
8 (210)
16 (396)
10 (255)
16 (396)
17 (443)
2 (57)
13 (341)
16 (400)
50 (1280)
9 (240)
65 (1660)
150
67 (1700)
8 (210)
16 (396)
10 (255)
16 (396)
17 (443)
2 (57)
13 (341)
16 (400)
59 (1510)
9 (240)
65 (1660)
All dimensions are in
