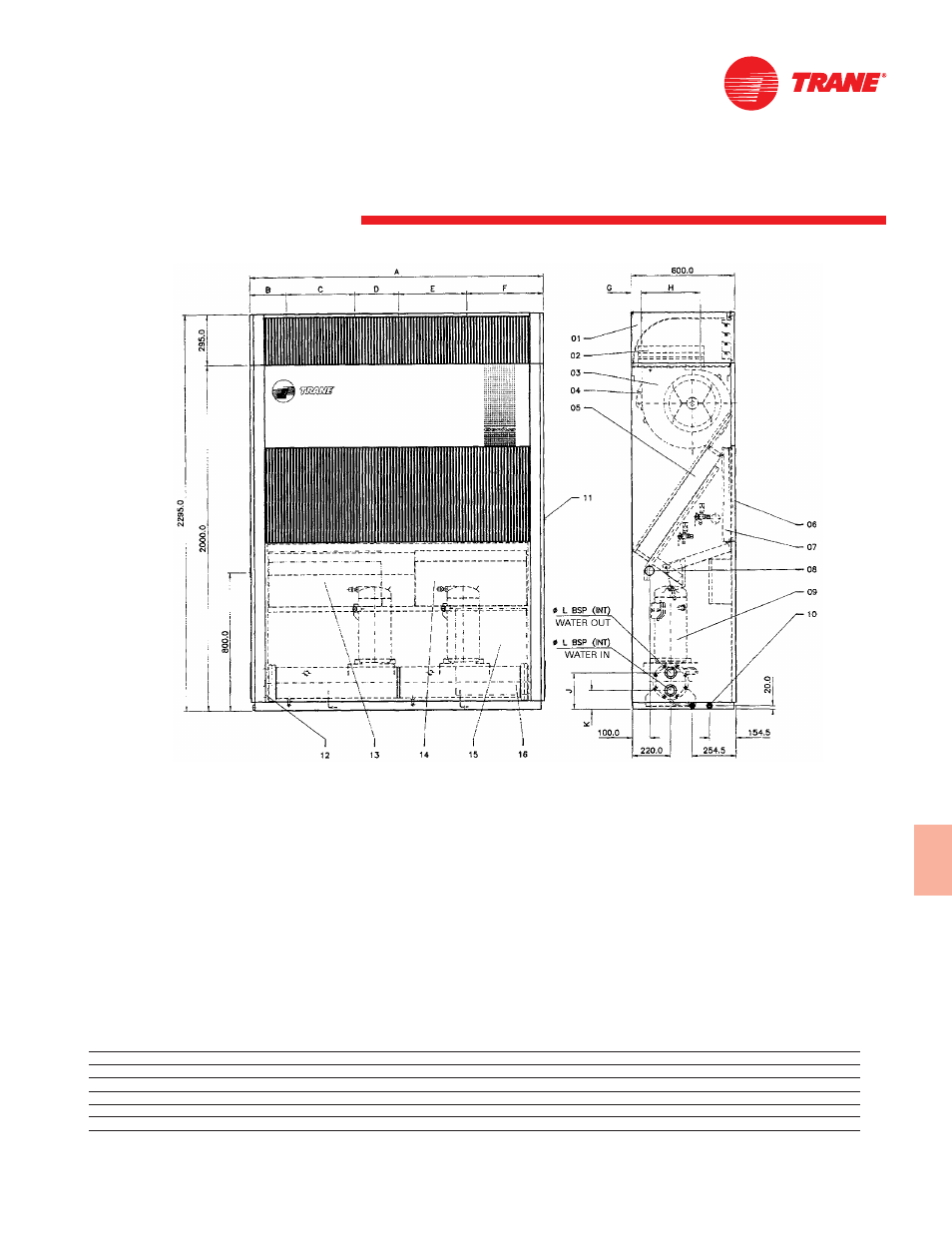

Dimensions
01 - Plenum box with optional supply screen
02 - Resistor box for heating (optional)
(control and power panel for external heating)
03 - Double [intake / exhaust] (evaporator) Centrifugal fan
04 - Supply motor
05 - Evaporating coil
06 - Return screen (optional)
07 - Filters
08 - Spacing for energy intake wire f 46.5 (right/left)
09 - Scroll compressor
10 - Drain f 1/2” BSP (left)
11 - Spacing for remote thermostat wire f 46.5
12 - Water intake and outlet (left/right)
13 - Electric panel for electric control model 100/125/150 (optional)
14 - Electric panel
15 - Electric panel for electric control model 050/075 (optional)
16 - Shell and tube condenser
SAVE
Model
A
B
C
D
E
F
G
H
J
K
ø L
050
38 (960)
9 (230)
13 (333)
–
–
16 (397)
5 (127)
11 (289)
10 (263)
5 (113)
1”
075
47 (1190)
15 (367)
16 (396)
–
–
17 (427)
2 (57)
13 (341)
10 (263)
5 (113)
1”
100
59 (1500)
7 (175)
13 (333)
9 (230)
13 (333)
17 (429)
5 (127)
11 (289)
8 (213)
4 (111)
1 1/2”
125
67 (1700)
8 (210)
16 (396)
10 (255)
16 (396)
17 (443)
2 (57)
13 (341)
8 (213)
4 (111)
1 1/2”
150
67 (1700)
8 (210)
16 (396)
10 (255)
16 (396)
17 (443)
2 (57)
13 (341)
8 (213)
4 (111)
1 1/2”
All dimensions are in
