Toro 12 User Manual
Page 11
MV/
PUMP
1 2 3 4 5 6 7 8 9 10 11 12
MV/
PUMP
1 2 3 4 5 6 7 8 9 10 11 12
VC/
COM
VC/
COM
13 14 15 16 17 18 19 20 21 22 23 24
VC/
COM
37 38 39 40 41 42 43 44 45 46 47 48
37 38 39 40 41 42 43 44 45 46 47 48
25 26 27 28 29 30 31 32 33 34 35 36
25 26 27 28 29 30 31 32 33 34 35 36
VC/
COM
VC/
COM
VC/
COM
VC/
COM
13 14 15 16 17 18 19 20 21 22 23 24
VC/
COM
5
6
7
10
11
12
13
8
9

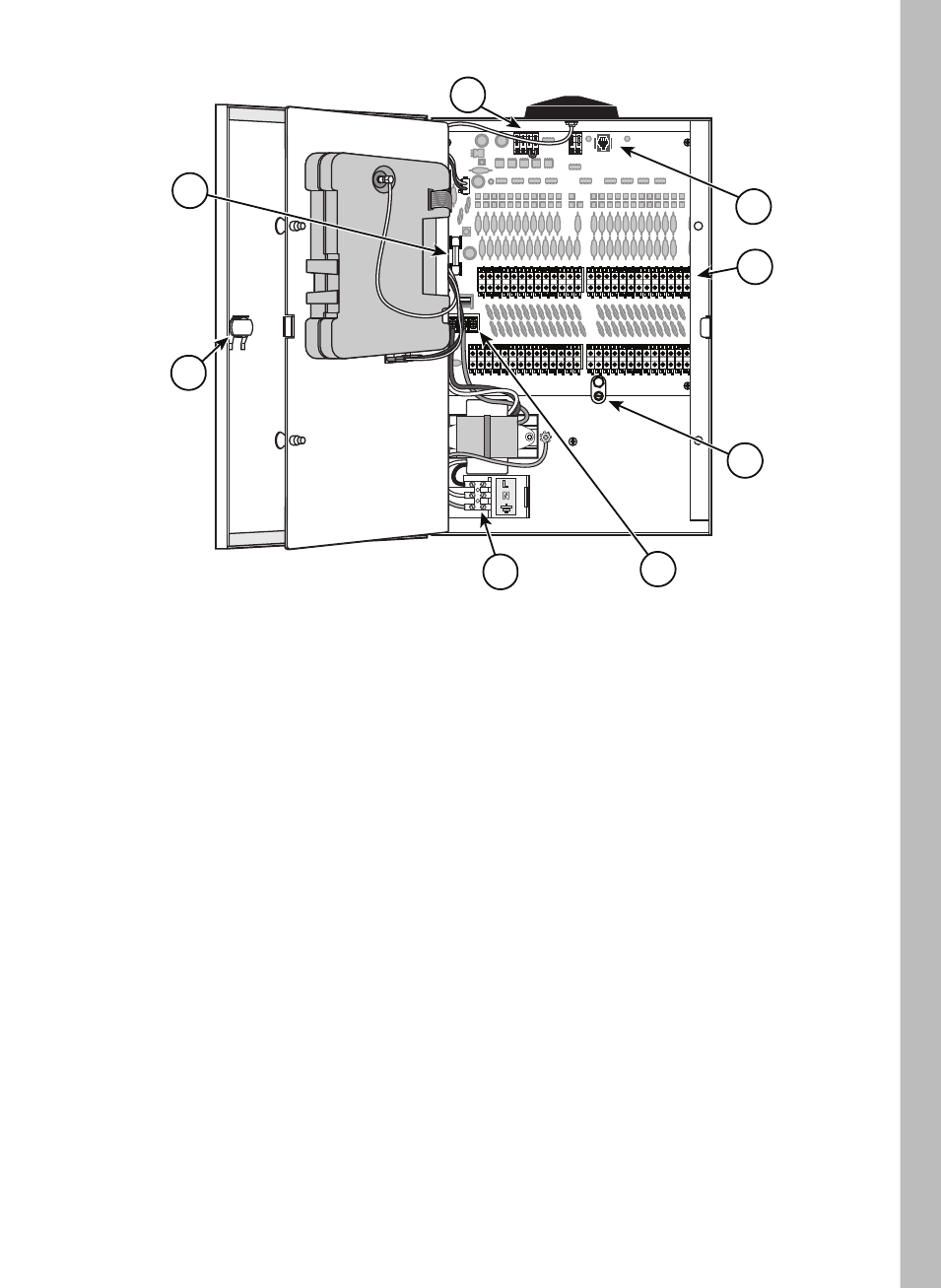

6 - Control Module Latch
- Enables control module to be
easily removed without disturbing controller installation.
7 - Fuse -
2A Slo-Blo fuse provides short-circuit protection
on the 24 VAC output circuit.
- Flow and Rain Sensor Connection Terminal Block
Quick release wire terminals for easy, secure connections.
- TMR-1 Handheld Remote Connections -
Provides
RJ-11 plug receptacle and 24 VAC power source for
TMR-1 handheld remote reciever connection.
- Valve Wire Connection Terminal Blocks
- Screwless,
quick release control wire terminals for easy installation.
11 - Earth-ground Lug -
Heavy-duty ground lug accepts
10 AWG solid-copper wire from earth ground device.
12 - Hot Post
- Provides a constant 24 VAC power source
to assist in valve identification for initial installation,
system service and troublshooting procedures.
13 - Main Power Connection Terminal Block
- Screw
terminals for 120 VAC input power wires.
8
10
9
