– 88 –

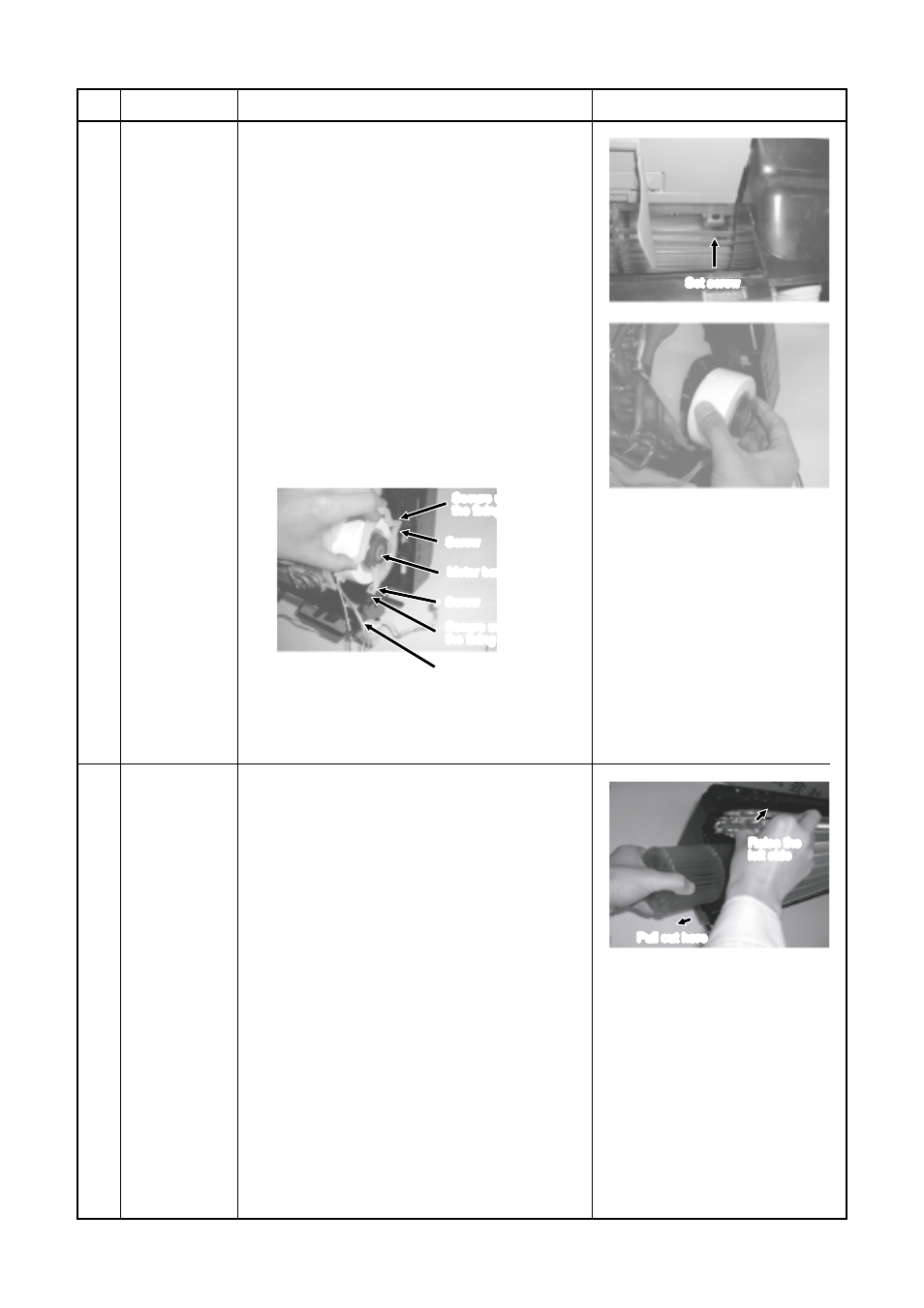

No.
‡
Part name
Fan motor
Procedures
1) Follow to the procedure in the item
ƒ
.
2) Loosen the set screw of the cross flow fan.
3) Remove two fixing screws of the motor band
(Right), and then remove the motor band
(Right).
4) Pull the fan motor outward.
In assembling work, install the fan motor as
follows.
• When assembling the fan motor, the fan
motor must be installed in such a way that
the fan motor leads will be taken out is
positioned at the bottom front.
• After assembling the two hooking claws of
the motor band (right) into the main body,
position the fan motor, insert it, and then
secure the motor band (right) using the two
fixing screws.
Remarks
1) Follow to the procedure in the item
†
.
2) Remove the heat exchanger fixing holder by
removing the two fixing screws used to
secure it.
3) Loosen the set screw of the cross flow fan.
4) Lift the left side of the heat exchanger, and
pull out the cross flow fan.
Cross flow fan
ˆ
Set screw
Screw
Screw
sing Secure using
screw the fixing screw
using Secure using
g screw the fixing screw
nd (Right) Motor band (Right)
Fan motor leads
Raise the
left side
Pull out here
