Page 48
– 48 –

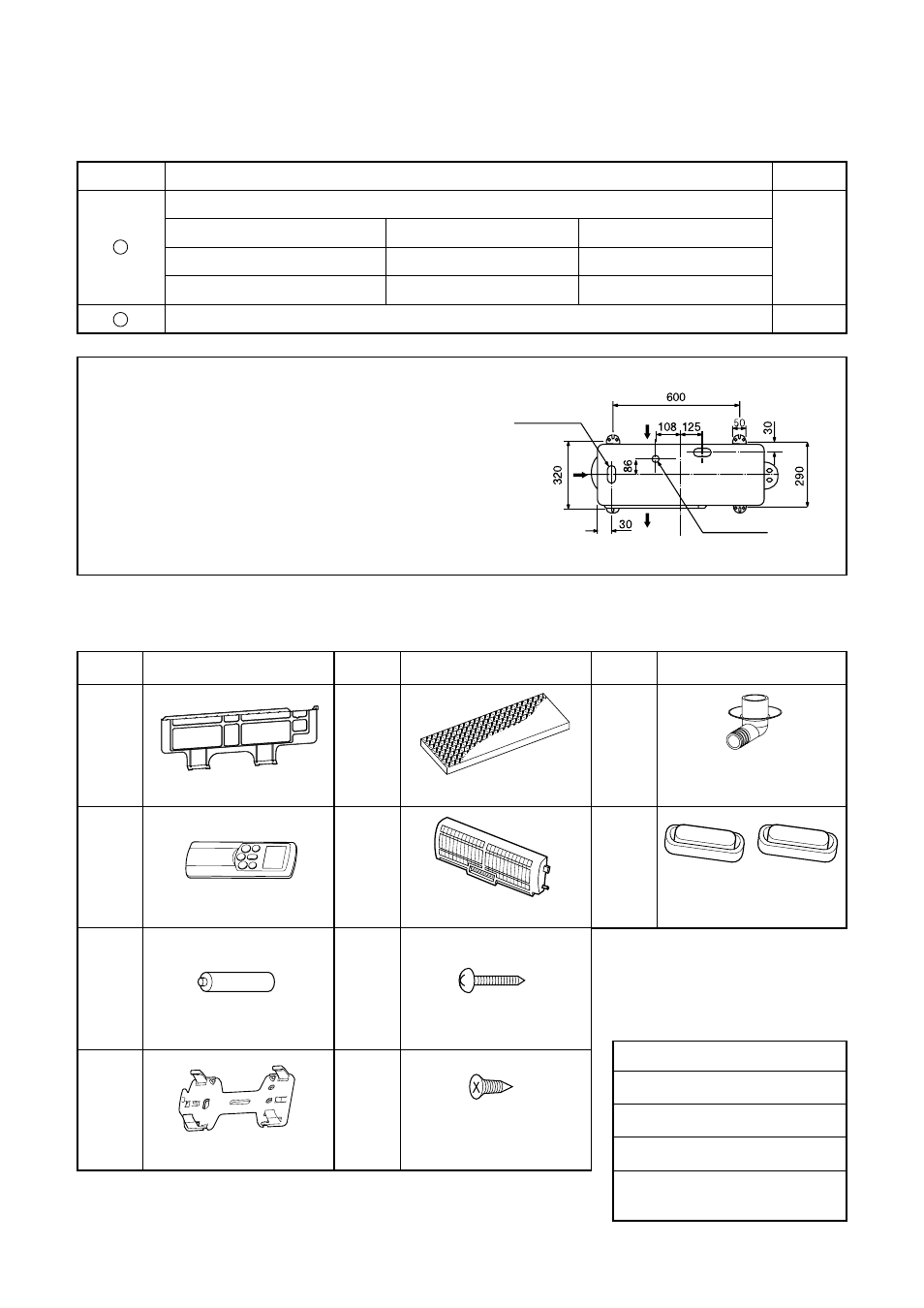

10-2. Optional Parts, Accessories and Tools
10-2-1. Optional Installation Parts
Part Code
Y
Z
Parts name
Refrigerant piping
Indoor unit name
Liquid side (Outer diameter)
Gas side (Outer diameter)
RAS-B10GKVP-E, B13GKVP-E
6.35 mm
9.52 mm
RAS-B16GKVP-E
6.35 mm
12.7 mm
Shield pipe (for extension drain hose) (polyethylene foam, 6 mm thick)
Q’ty
1 ea.
1
Attachment bolt arrangement of outdoor unit
• Secure the outdoor unit with the attachment bolts and
nuts if the unit is likely to be exposed to a strong wind.
• Use Ø8 mm or Ø10 mm anchor bolts and nuts.
If it is necessary to drain the defrost water, attach drain
nipple to the base plate of the outdoor unit before
installing it.
10-2-2. Accessory and Installation Parts
Suction side
Diffuser
Elongated
drain hole
(
)
Drain hole
(
)
Part name (Q’ty)
Installation plate × 1
Wireless remote control × 1
Battery × 2
Remote control holder × 1
Part No.
Part name (Q’ty)
Zeolite-plus filter × 1
Plasma pure filter × 1
Mounting screw Ш4 Ч 25L × 6
Remote control
holder mounting screw
Ш3.1 Ч 16L × 2
Part No.
Part name (Q’ty)
Drain nipple* × 1
(RAS-10GAVP-E,
13GAVP-E, 16GAVP-E)
Water-proof rubber cap* × 2
(RAS-10GAVP-E,
13GAVP-E, 16GAVP-E)
Name
Owner’s manual
Installation manual
Important information and warning*
B/W strips*
(Energy efficiency labels)
Parts marked with asterisk (*) are
packaged with the outdoor unit.
This model is not equipped with an extension drain hose.
Part No.
