Toshiba RAS-B13GKVP-E - Manual (Page 105)

– 105 –
Location
Part Description
No.
701 43050422 Sensor, TE
702 43050423 Sensor, TS
703 43050427 Sensor, TO
704 43062228 Base, P.C. board
Location
Part Description
No.
705 43160566 Terminal Block, 6P
706 43050430 Sensor, TD
707 4306S737 P.C. board Ass’y, MCC5009

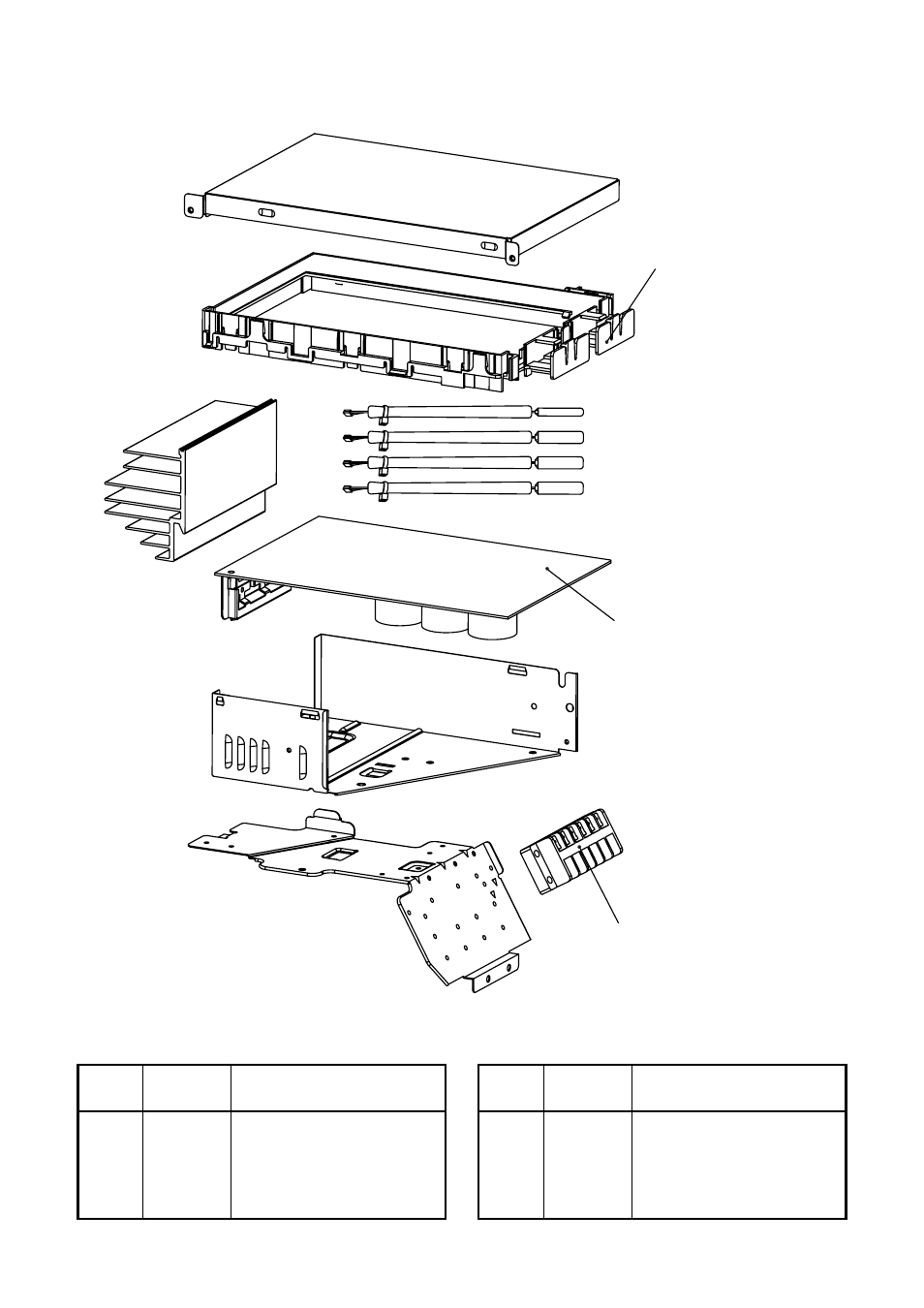

13-3. P.C. Board Layout
704 Base, P.C. Board
707 P.C. Board Ass’y
705 Terminal (6P)
706 Sensor, TD (Ø4)
701 Sensor, TE
702 Sensor, TS
703 Sensor, TO
∗
The parts in the following parts list are conformed to RoHS.
Therefore be sure to use the following parts for repairing and replacing.
