– 83 –
No.

Part name
Front panel
Procedures

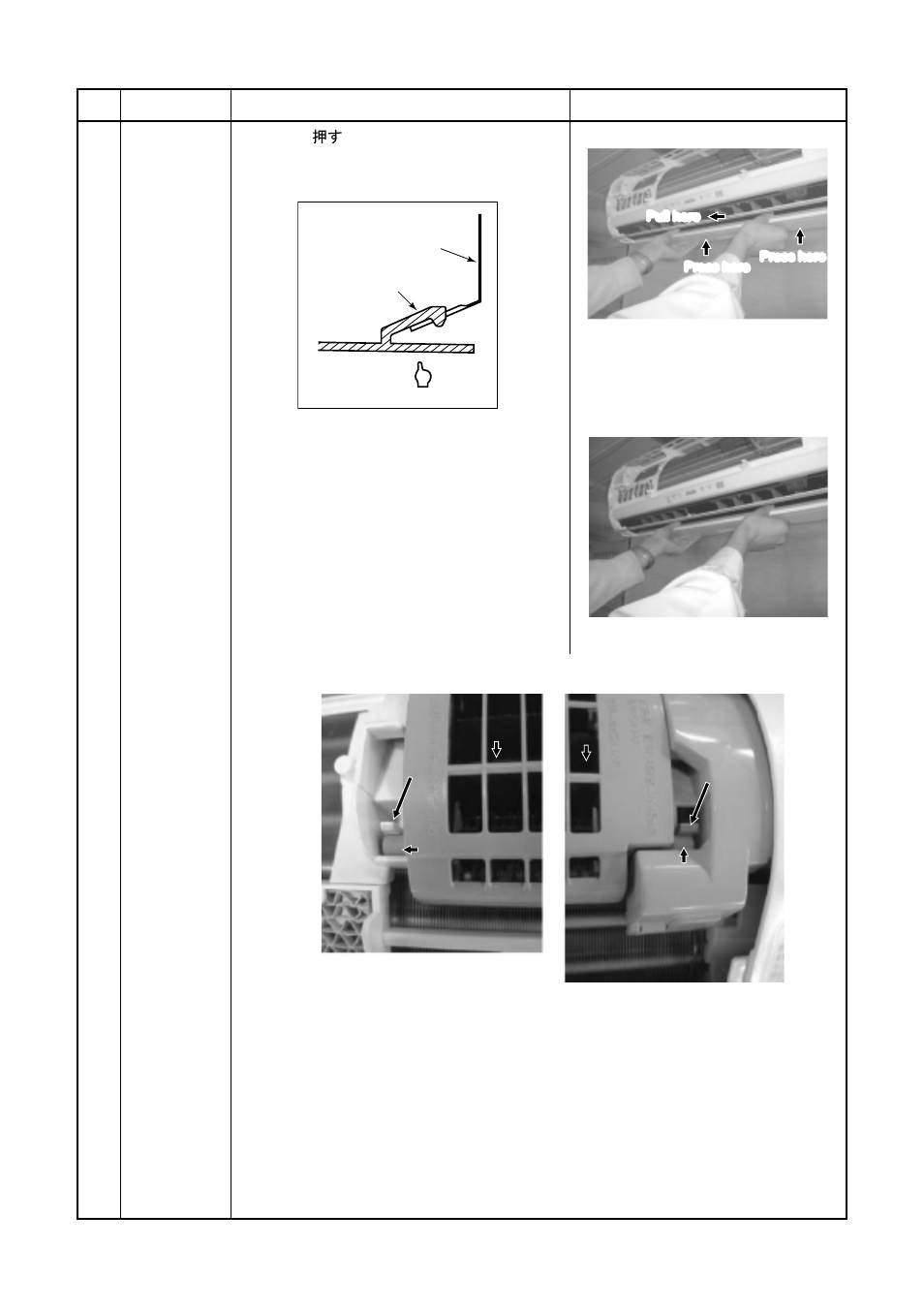

4) Press “ ” part under the front panel
and remove hooks of the front panel from
the installation plate.
Remarks
Pull here
Press here
Press here
Press
Front panel
Installation plate
Holder Holder
Protrusion Protrusion
Electric dust Electric dust
collector collector
Holder Holder
Protrusion Protrusion
Electric dust Electric dust
collector collector
Holder
Protrusion
Electric dust
collector
Holder
Protrusion
Electric dust
collector
5) Remove the front panel fixing screws.
(2 pcs.)
6) Press the electric parts box with the right
thumb while pulling the both sides of the
front panel toward you.
1) Press three center positions and two lower center positions of the air outlet, and
then hang the hanging hooks (4 pcs.) at the top side of the front panel to the rear
plate.
2) Insert the electric dust collector and left and right air filters.
Press in the electric dust collector until the protrusions on both sides are completely
inserted into the holders.
If installation is incomplete, the FILTER indicator (orange) may light.
3) Tighten two screws.
• Incomplete hanging or incomplete pressing may cause a dewdrops or generation
of a fluttering sound.
