Screw
Bearing
base
Screw
Raise the left side
Remove in this direction
Bearing base
Bearing
Drain pipe
Bearing base
Drain pipe
No.
†
Part name
Bearing

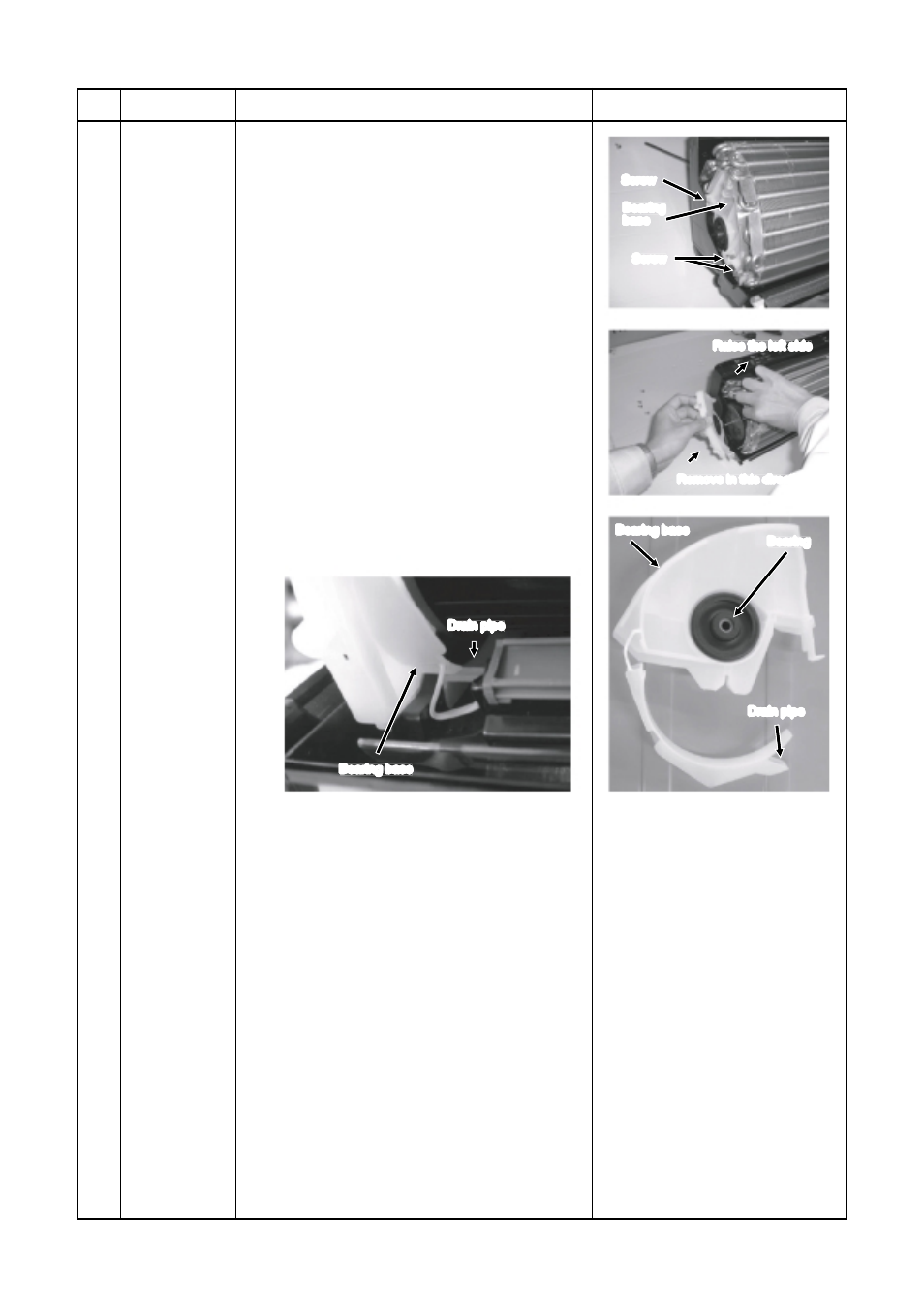

Procedures
1) Follow to the procedure in the items

.
2) Remove the two fixing screws used to secure
the left edge panel of the heat exchanger, and
remove the two screws used to secure the
bearing base.
3) Raise the left side of the heat exchanger
slightly, and remove the bearing base.
• If the bearing is out from the housing, push it
into the specified position and then incorporate
it in the main body.
• After assembling the bearing base, check that it
is fitted into the stepped part of the drain pipe.
Remarks
