19
Getting Ready
fig.ACPdlConnect.eps

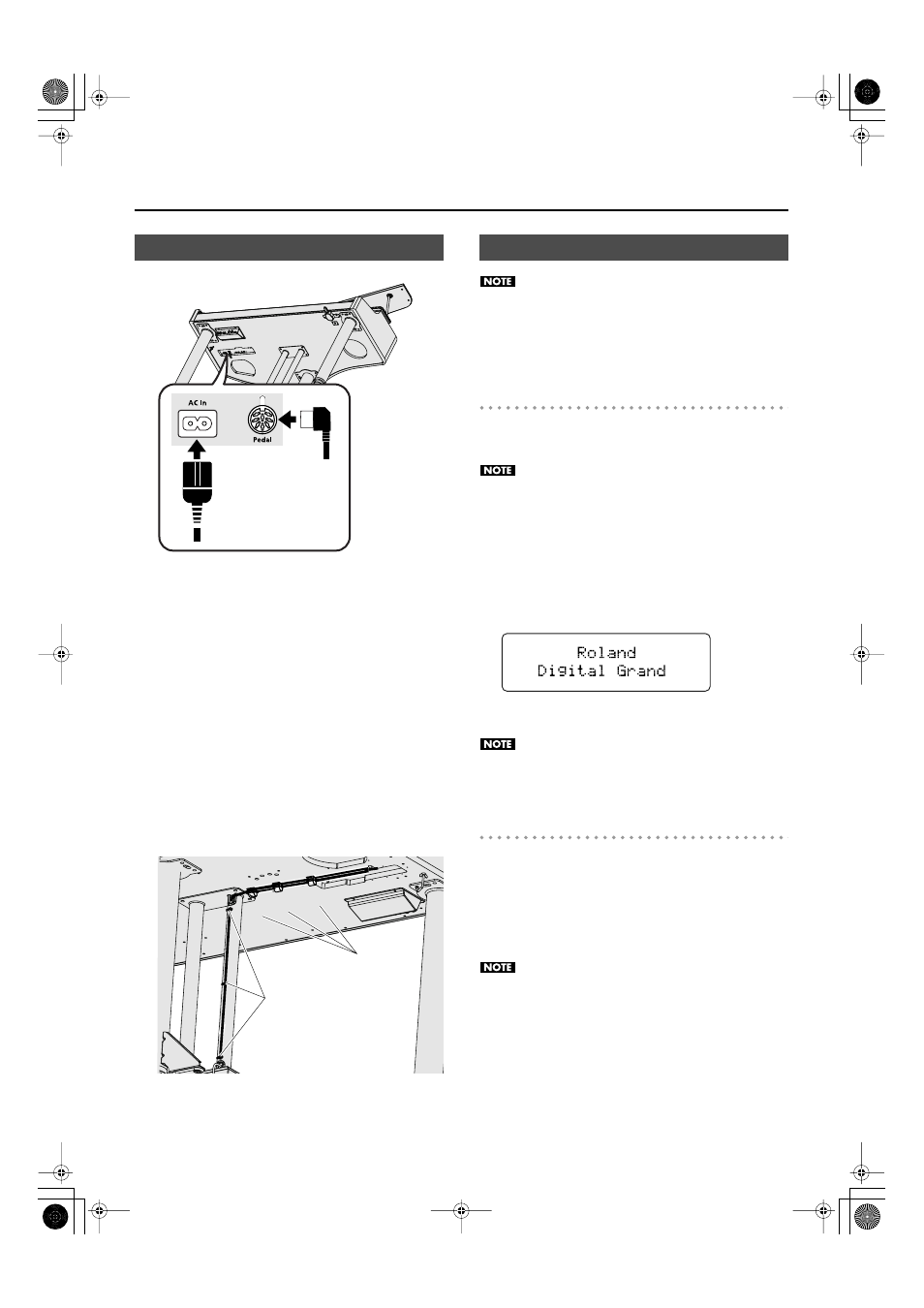

1. Connect the pedal cord to the Pedal connector of the jack
panel located on the bottom left of the piano.
2. Connect the power cord to the AC inlet of the jack panel.
3. Use the cord clamps (with double-sided tape) to fasten
the pedal cord and power cord at locations A, B, and C
(recommended) shown below.
4. Fasten the power cord.
For the RG-1F:
Attach the cord clamps (with screws) to locations D, E, and F
shown below, and use them to fasten the cable.
For the RG-3F:
Attach cord clamps (with double-sided tape) to locations D,
E, and F (recommended) shown below, and use them to
fasten the cable.
fig.CordClamp_e.eps
5. Connect the power cord to an electrical outlet.
941
Once the connections have been completed (p. 19), turn
on power to your various devices in the order specified.
By turning on devices in the wrong order, you risk
causing malfunction and/or damage to speakers and
other devices.
Turning the power on
1. Turn the front panel [Volume] knob all the way to the
left.
943
Always make sure to have the volume level turned
down before switching on power. Even with the volume
all the way down, you may still hear some sound when
the power is switched on, but this is normal, and does
not indicate a malfunction.
2. Press the [Power] switch.
The power will turn on, and the front panel display will show
the following.
fig.d-PowerOn.eps
After a short while, sound will be heard when you play the
keyboard. Use the [Volume] knob to adjust the volume.
942
This unit is equipped with a protection circuit. A brief
interval (a few seconds) after power up is required
before the unit will operate normally.
Turning the power off
1. Turn the front panel [Volume] knob all the way to the left
to minimize the volume.
2. Press the [Power] switch.
The front panel display will go dark, and the power will turn
off.
945
If you need to turn off the power completely, first turn
off the [Power] switch, then unplug the power cord
from the power outlet. Refer to “Power Supply” (p. 7).
Connecting the Pedal Cord and Power Cord
A A
B B
C C
A
B
C
D D
E E
F F
D
E
F
Cord clamps
(RG-1F: with screws,
RG-3F: with double-sided tape)
Cord clamps
(with double-sided tape)
Turning the Power On/Off
