Ricoh AP2610N User Manual
Page 188
Troubleshooting
86
5
GGGG

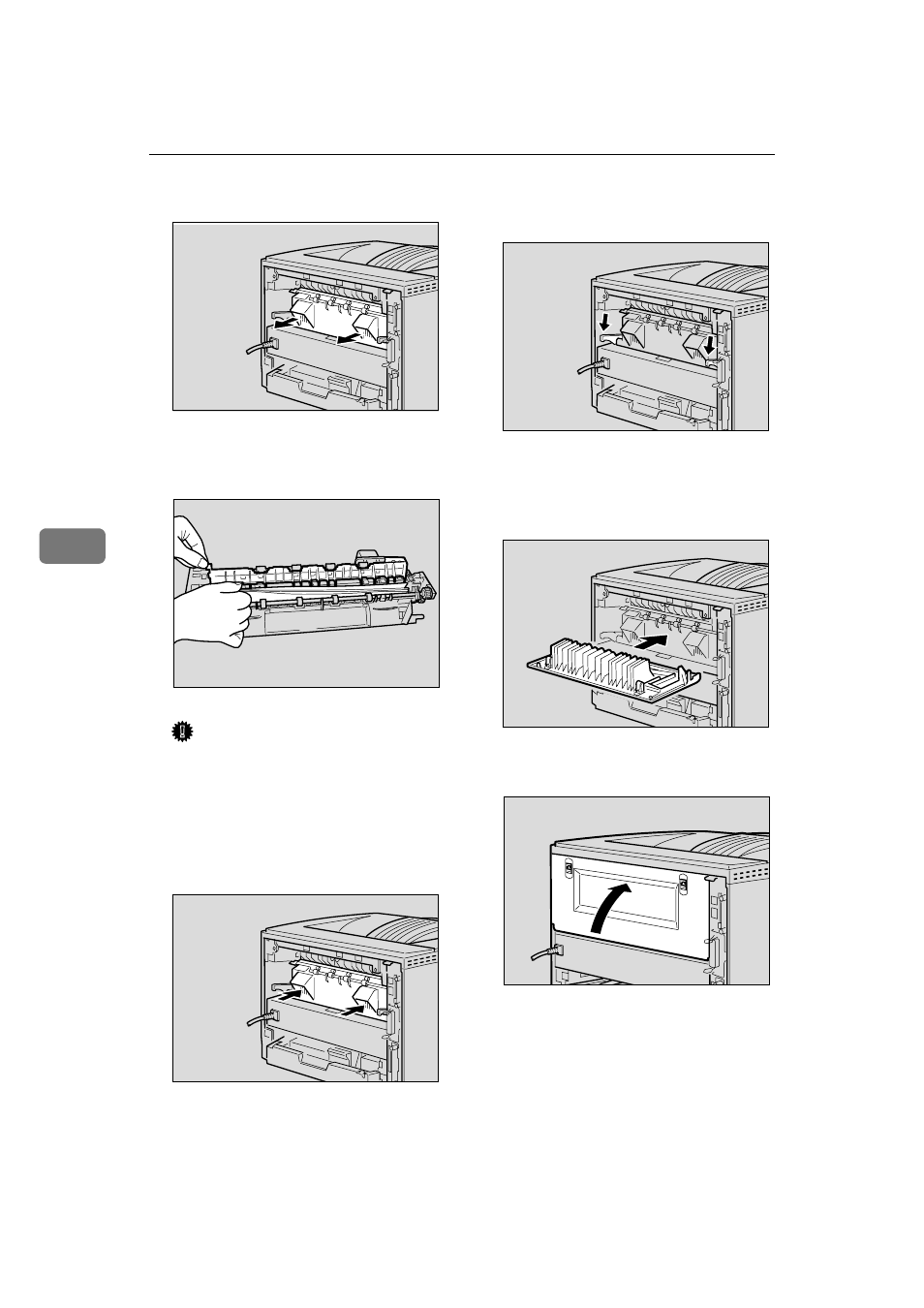

Pull the fusing unit out.
HHHH
While holding the tab, remove
the misfed paper.
Important
❒ Do not touch the metal part of
the fusing unit. It becomes very
hot. Touching it could result in a
burn.
IIII
Insert the fusing unit until it
stops.
JJJJ
Push the lock levers of the fusing
unit down until it clicks.
KKKK
Insert the rear cover to the inside
grooves on both sides of the print-
er in a horizontal direction.
LLLL
Close the rear cover.
ZGDX223N
ZGDY410J
ZGDX224N
ZGDX225N
ZGDX221J
ZGDX211N
