Ricoh AP2610N User Manual
Page 187
Removing Misfed Paper
85
5
BBBB

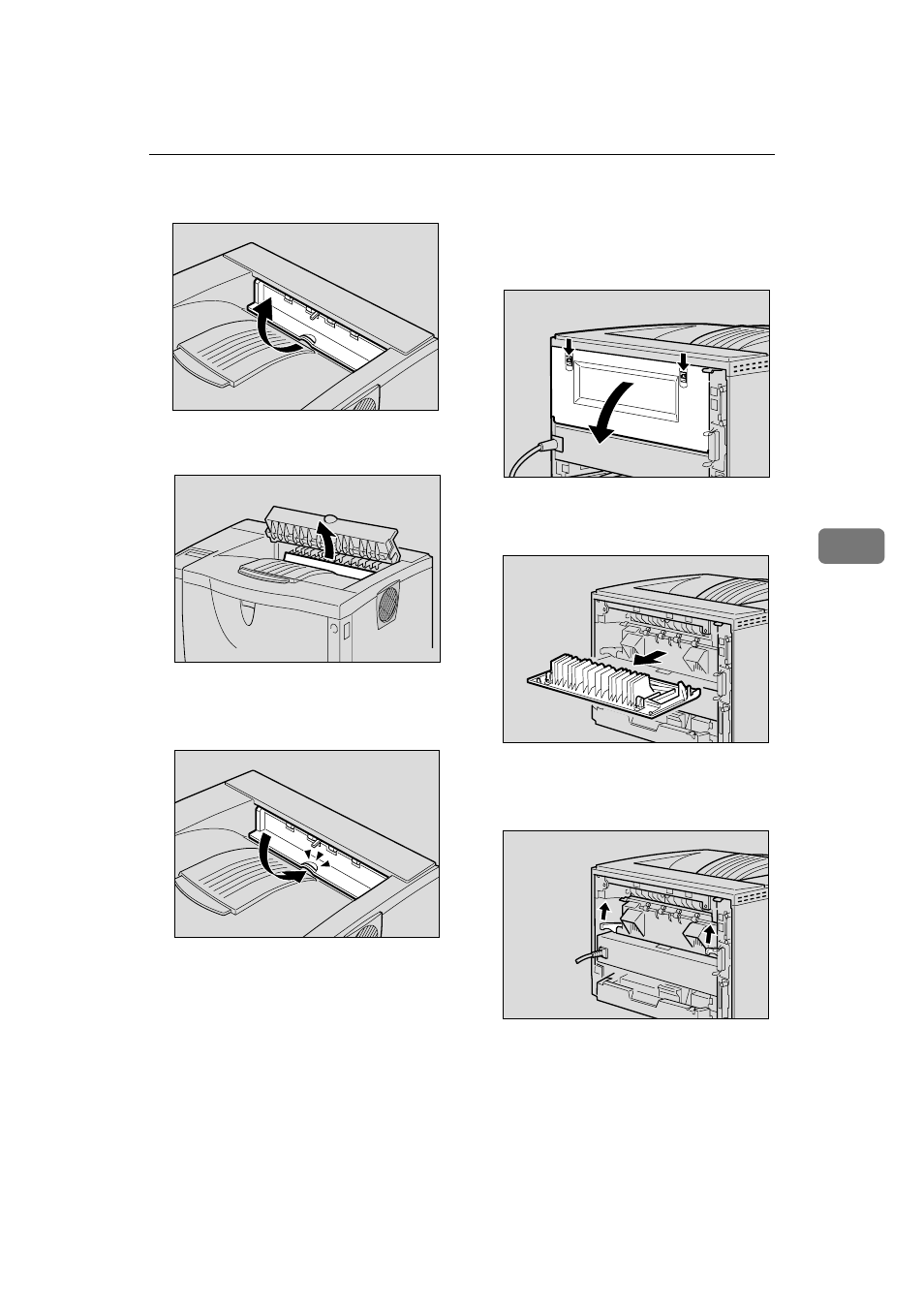

Open the paper exit cover.
CCCC
Remove the misfed paper.
DDDD
Close the paper exit cover until it
clicks.
EEEE
If the misfed paper is in the fus-
ing unit, remove it.
A Open the rear cover by push-
ing the two knobs.
B Remove the rear cover in a hor-
izontal direction.
FFFF
Lift the lock levers of the fusing
unit as shown in the illustration.
ZGDY390J
ZGDY380J
ZGDY400J
ZGDX210J
ZGDX220J
ZGDX222N
