30
3.4.8 Reset Pin Settings
[Only if the FDM or E8Direct is selected] Select the ‘Operating Mode’ and ‘Clock Mode’ and if ‘User
Defined’, set the Reset pin settings. Set the ‘Reset Outputs’ and the ‘Reset Setting’ for the mode
required immediately after disconnection. Click the ‘Finish’ button. “*Mode Outputs” sets which pins
are driven by the FDM, “*Mode Setting” sets whether output pins are driven High (checked) or Low
(Unchecked).
Notes: Setting the mode pins using the FDM or E8Direct requires caution. Please confirm the pin
settings with the hardware manual even if a default setting is available. Note that in some devices,
changing the mode pin setting changes the maximum supply voltage.

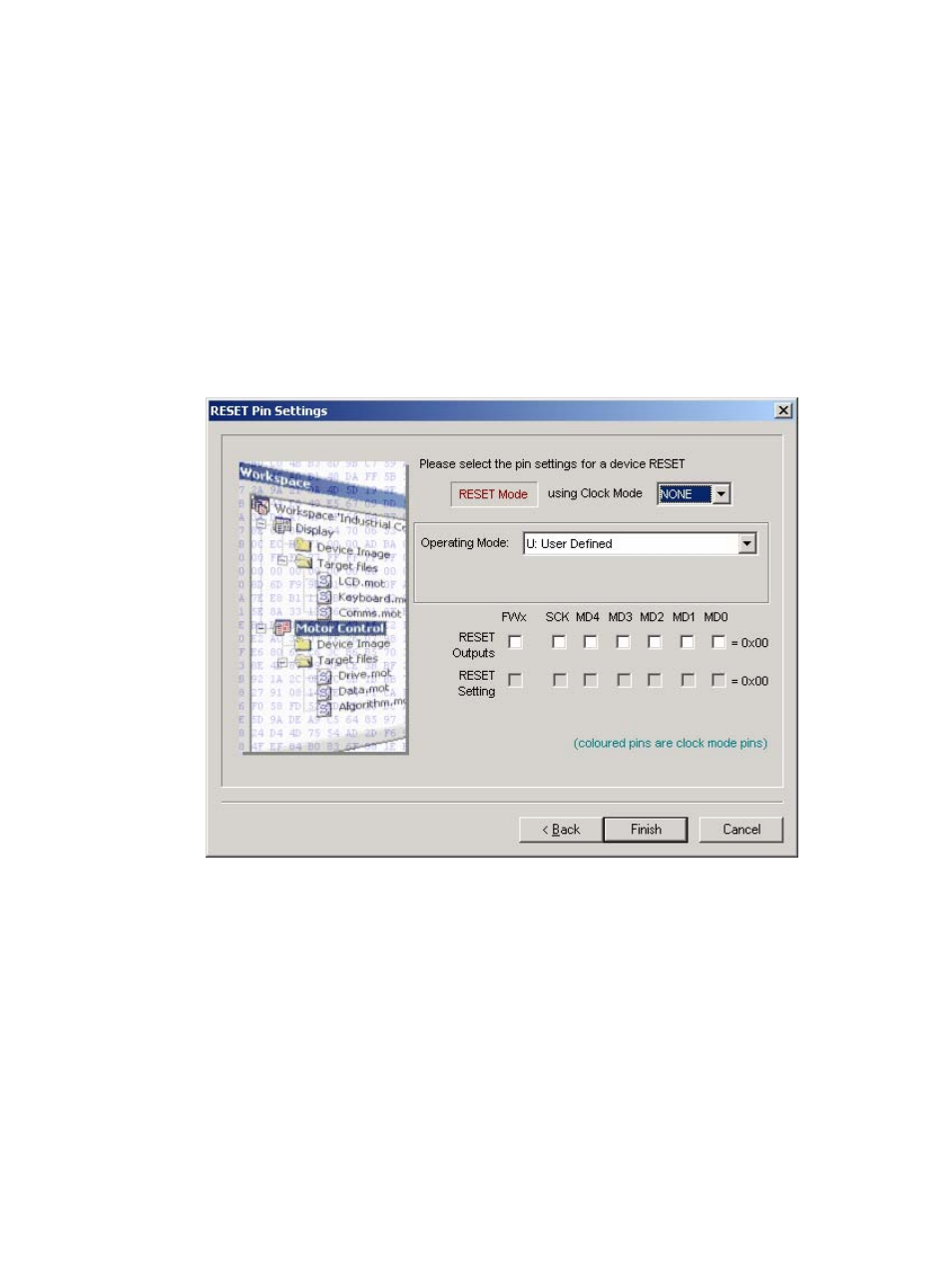

Figure 3-10 FDM RESET Pin Settings
