82 Dialing Plan configuration

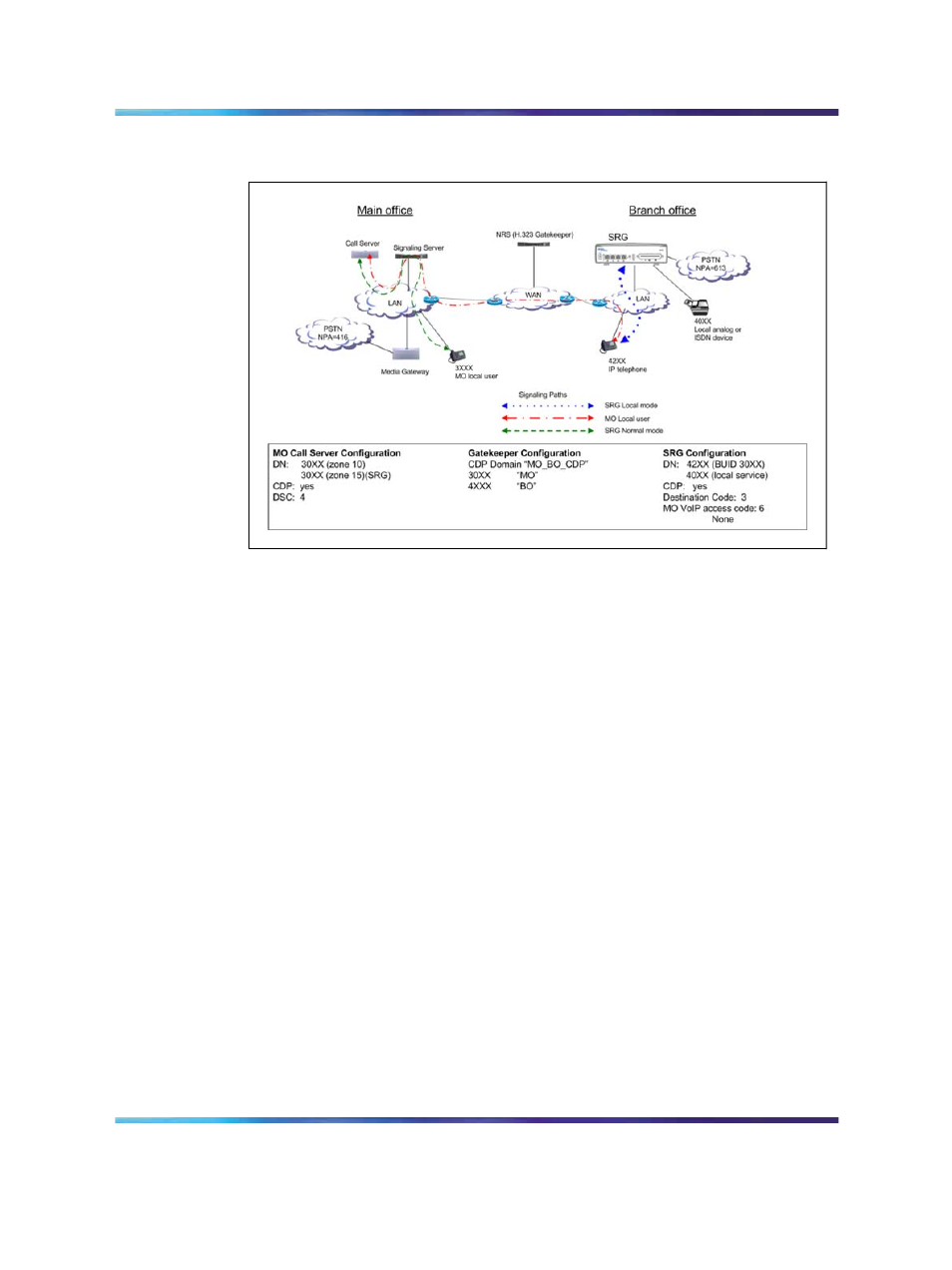

Figure 23
CDP Option 3
Call scenarios Common call scenarios for this CDP option are listed
in "Call scenarios" (page 65) . The following additional call scenarios are
unique to this CDP option:
• Normal Mode: An SRG analog phone calls an SRG IP Phone and a
main office IP Phone registered to the main office.
In this scenario, the telephone registered to the SRG can either dial the
SRG DN or the main office DN for the SRG IP Phone. In Local Mode,
the SRG IP telephone is reached only with the SRG DN.
In Normal Mode, the display on the IP Phone displays the main office
DN (3xxx) for the IP Phone. In Local Mode, the SRG DN (4xxx) is
displayed. The WAN is up: SRG analog phone calls an SRG IP Phone
and a main office IP Phone registered to the main office (Normal Mode).
Figure 24 "SRG analog phone calls an SRG IP Phone and a main office
IP Phone registered to the main office" (page 83)
shows this scenario.
