Configuring number qualifiers, Figure 27 trunkgroup provisioning – Nortel Networks 5100 User Manual
Page 74
74
IP Peer Networking and Call Server configuration

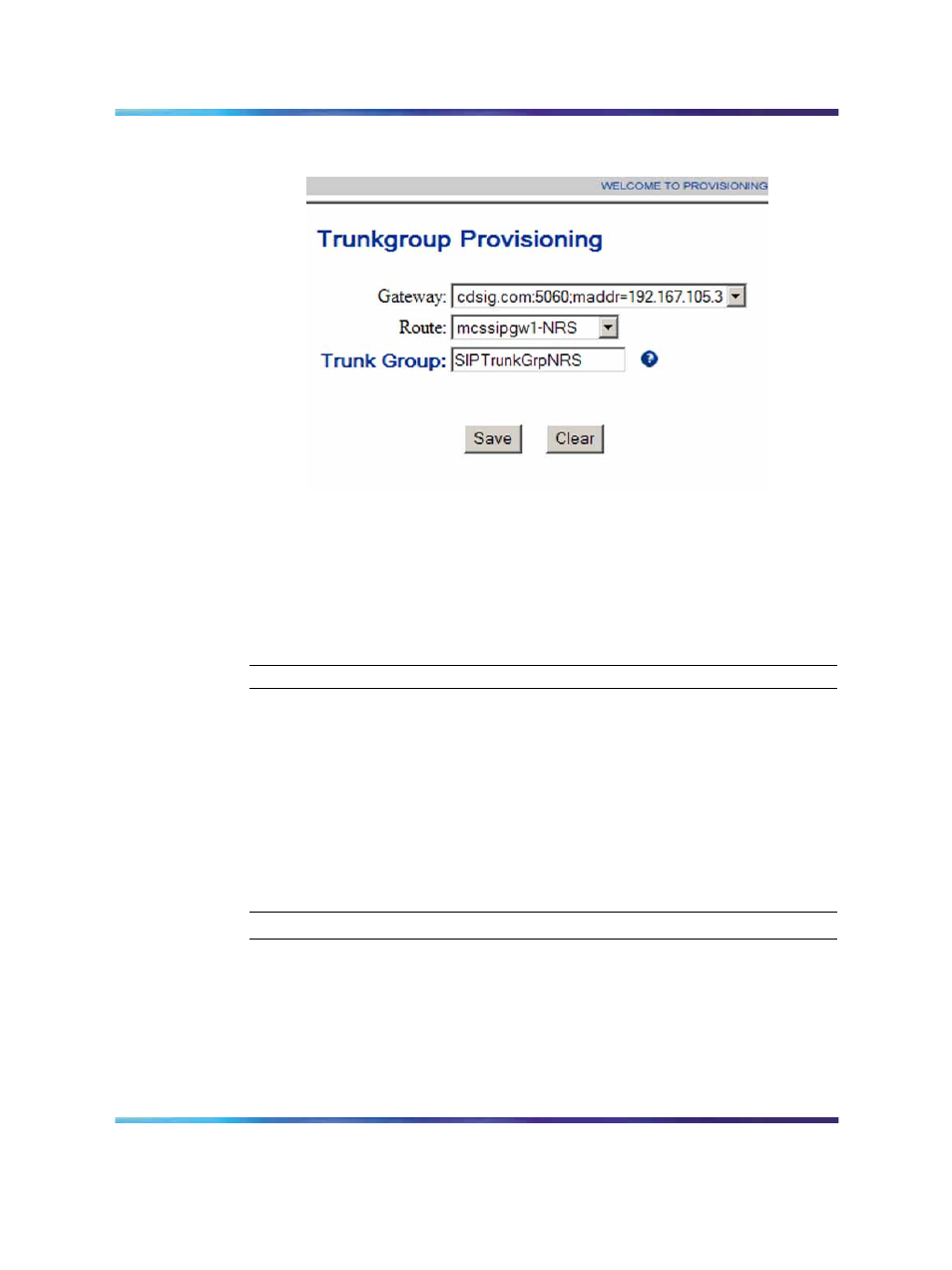

Figure 27
Trunkgroup Provisioning
4
Select a Gateway.
5
Select a Route.
6
For Trunk Group, type a description for the new trunk group.
7
Click Save.
—End—
Configuring Number Qualifiers
Perform the following procedure to configure Number Qualifiers.
When you configure the Number Qualifiers, the information must match the
configured information for the CS 1000 SIP URI Map and the CS 1000 NRS
SIP URI. Refer to the procedure
"Configuring the Signaling Server" (page
for more about the CS 1000 SIP URI Map configuration.
Configuring Number Qualifiers
Step
Action
1
Log on to the MCS Provisioning Client.
2
Under the Provisioning folder, expand the Domains folder.
3
Expand the folder for the domain that you are configuring.
4
Expand the Telephony Routes folder.
Enterprise: Common
Solution Integration Guide for Communication Server 1000/Multimedia Communication Server 5100
NN49000-301
01.01
Standard
Release 4.5
27 October 2006
Copyright © 2006, Nortel Networks
Nortel Networks Confidential
.
