MCS 5100 configuration 73
3 Click Add Route.
The Modify gateway route page appears. See
Figure 26 "Modify
gateway route" (page 73) .

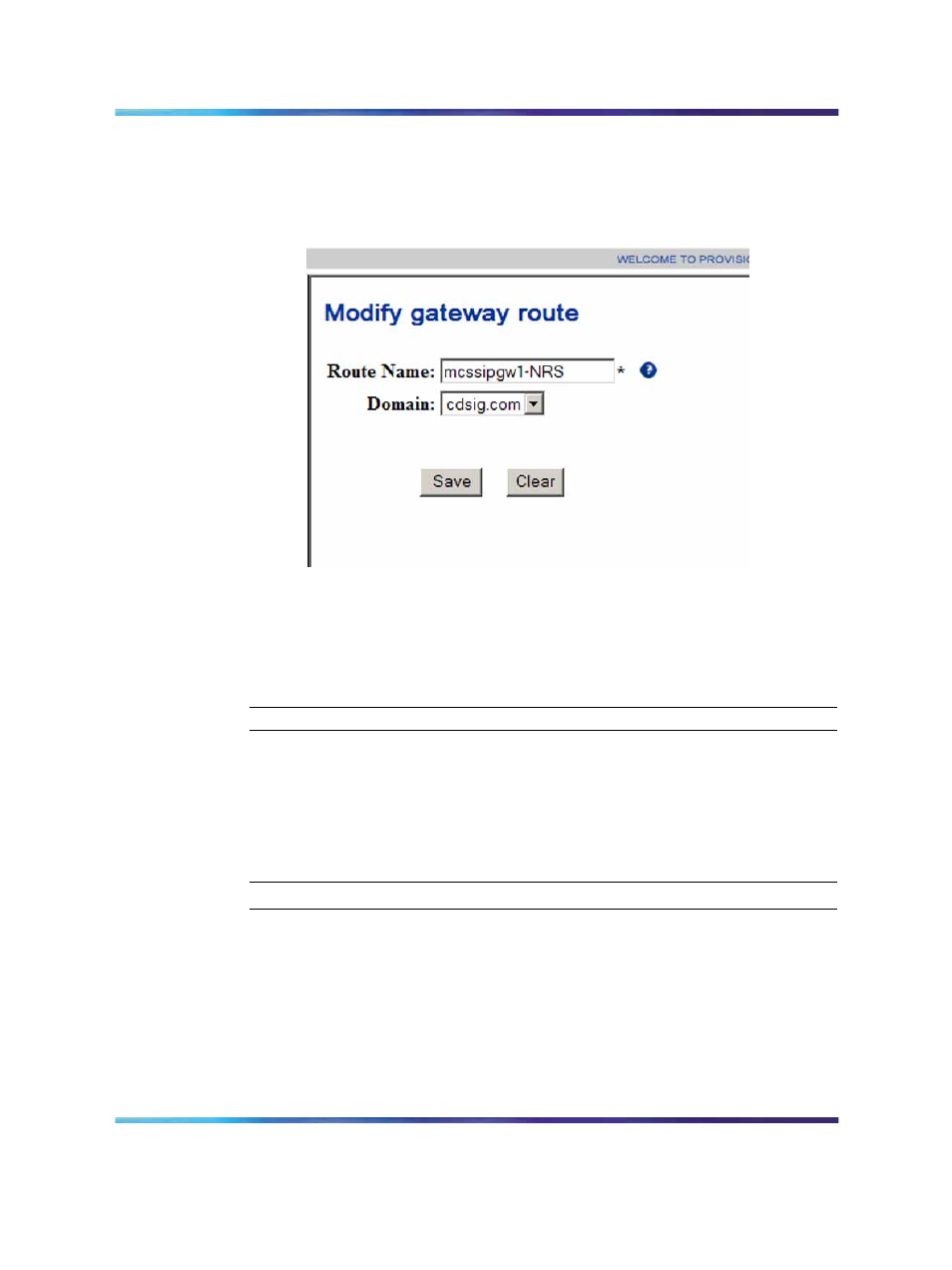

Figure 26
Modify gateway route
4 For Route Name, type a description for the new route.
5 For Domain, select a domain to associate with the new route.
6 Click Save.
—End—
Adding a trunk group directed to the Gateway route
Perform the following procedure to add a trunk group directed to the
Gateway route.
Adding a trunk group directed to the Gateway route
Step Action
1 Log on to the MCS Provisioning Client.
2 Under the Provisioning folder, expand the Gateways folder.
3 Click Add TrunkGroup. The Trunkgroup Provisioning page appears.
See
Figure 27 "Trunkgroup Provisioning" (page 74) .
