Chapter 6 Cabling External Cabling
NEAX 2000 IPS Configuration Guide
NDA-24347, Issue 1
Page 69
Data Port
Controller (DPC) The PN-2DPCB card provides 2-line V.11/X.21 or V.24/V.28 2-line interface ports
for data.
V.11/X21 Interface (Asynchronous/Synchronous: 600 ~ 64 kbps)

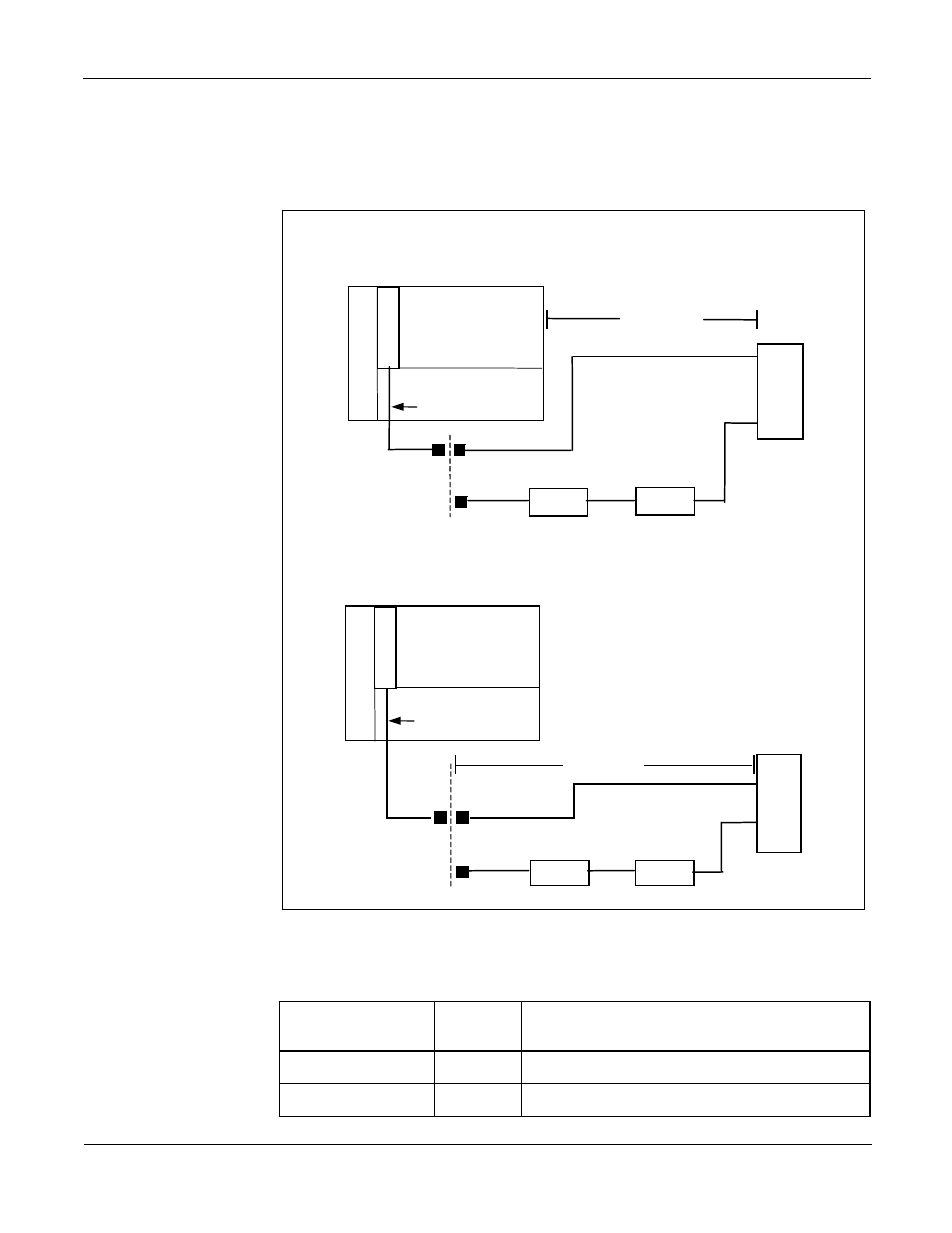

Figure 6-15 DPC Cable Connection
Table 6-13 DPC Cable
NAME CODE
PART
NUMBER
REMARKS
DPC V11 CA 151014 V.11/X.21 Interface Cable, 13.1 ft. (4 m)
DPC RS CA 151017 V.24/V.28 Interface Cable, 13.1 ft. (4 m)
V.11/X21 Interface (Asynchronous/Synchronous: 600 - 64 kbps)
V.24/V.28 Interface (Synchronous: 600 - 19.2 kbps)
Slot 00 to 11 PIM
2
D
P
C
B
DPC RS CA 13.1 ft.
(4 m)
Installation Cable
MODEM MODEM
DTE
Maximum
49.2 ft. (15 m)
Slot 00 to 11 PIM
Maximum
3280 ft. (1000 m)
2
D
P
C
B
DPC V11 CA 13.1 ft.
(4 m)
Installation Cable
MODEM MODEM
DTE
15p (F)
