Wall-mounting installation, Figure 2-3 – NEC NEAX 2000 IPS User Manual
Page 20
NEAX 2000 IPS Configuration Guide
Page 10
NDA-24347, Issue 1
Wall-mounting Installation
Chapter 2 System Configuration
Wall-mounting Installation
The NEAX 2000 IPS can be wall-mounted in a single or multiple PIM configuration.
A maximum of eight PIMs can be mounted in this way.

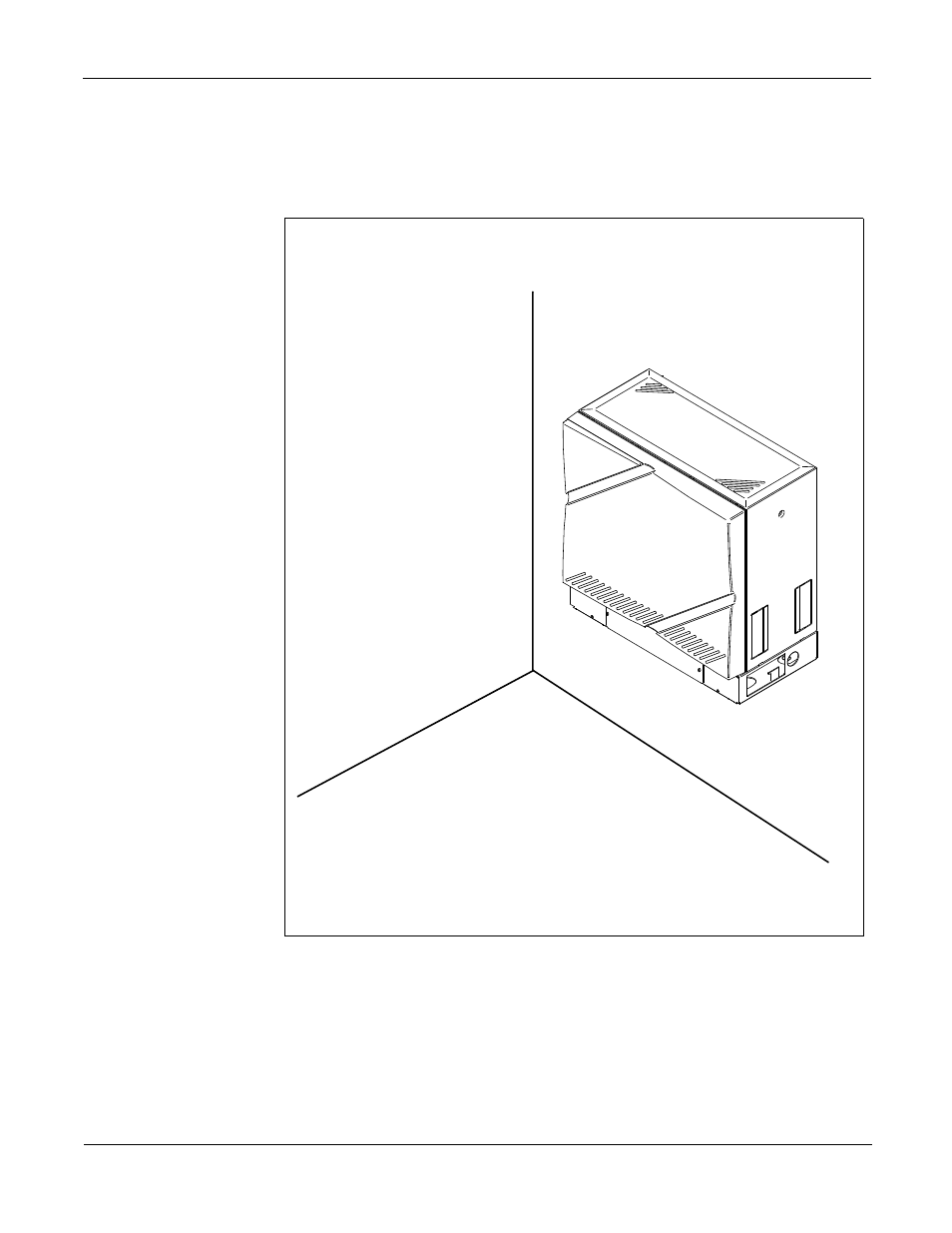

Figure 2-3 Wall-mounting Installation
