NEAX 2000 IPS Configuration Guide
Page 4 NDA-24347, Issue 1
NEAX 2000 Internet Protocol Server (IPS) Chapter 1 Introduction
• One-board Main Processor (MP) with Integrated Functionality
NEAX 2000 IPS Main Processor (MP) is the heart of pure IP connections and
TDM-based connections. The MP employs a high-speed CPU, which is
equivalent with Pentium. With this processing power and System On Chip (SOC)
technology, the MP integrates Device Registration Server (DRS), AP01 (OAI)
functions, which are provided by an additional card in the previous NEAX 2000
IVS series. Also, by means of LSI technology, the MP card size is minimized and
an Ethernet Interface Card is mounted on the MP without using an additional slot
space in the PIM. This interface card is linked with LAN for call control
processing of Dterm IP and inter-work with MATWorX and OAI server.

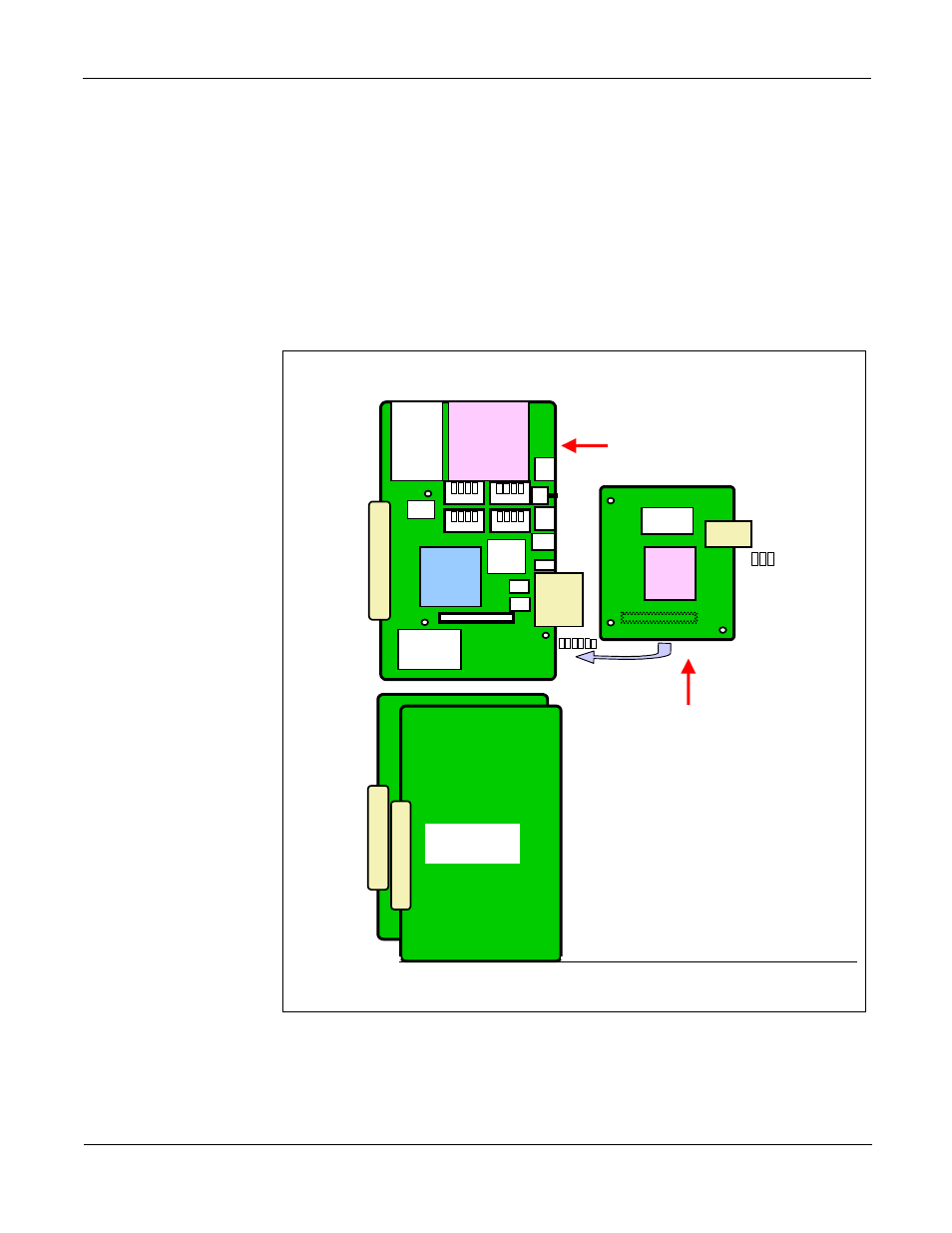

Figure 1-4 NEAX 2000 IPS MP and IP-PAD Configuration
(Pentium-
equivalent)
OSC
Connector
New
Engine
Chip RS
Driver
Power
Supply
Circuit
Alarm and
DK Circuit
MOH
Source Ethernet
Transformer
Connector
RS
Driver
PZ-M606-A
PN-CP24-A
AP01 Function and TCP/IP
protocol are integrated into MP
NIC
IP PAD
PN-32IPLA
+
PN-16VCTA
osc
MOH
Source
