External Cabling Chapter 6 Cabling
Remote Connection
• Remote connection is available via an internal modem in the MP or external
modem.

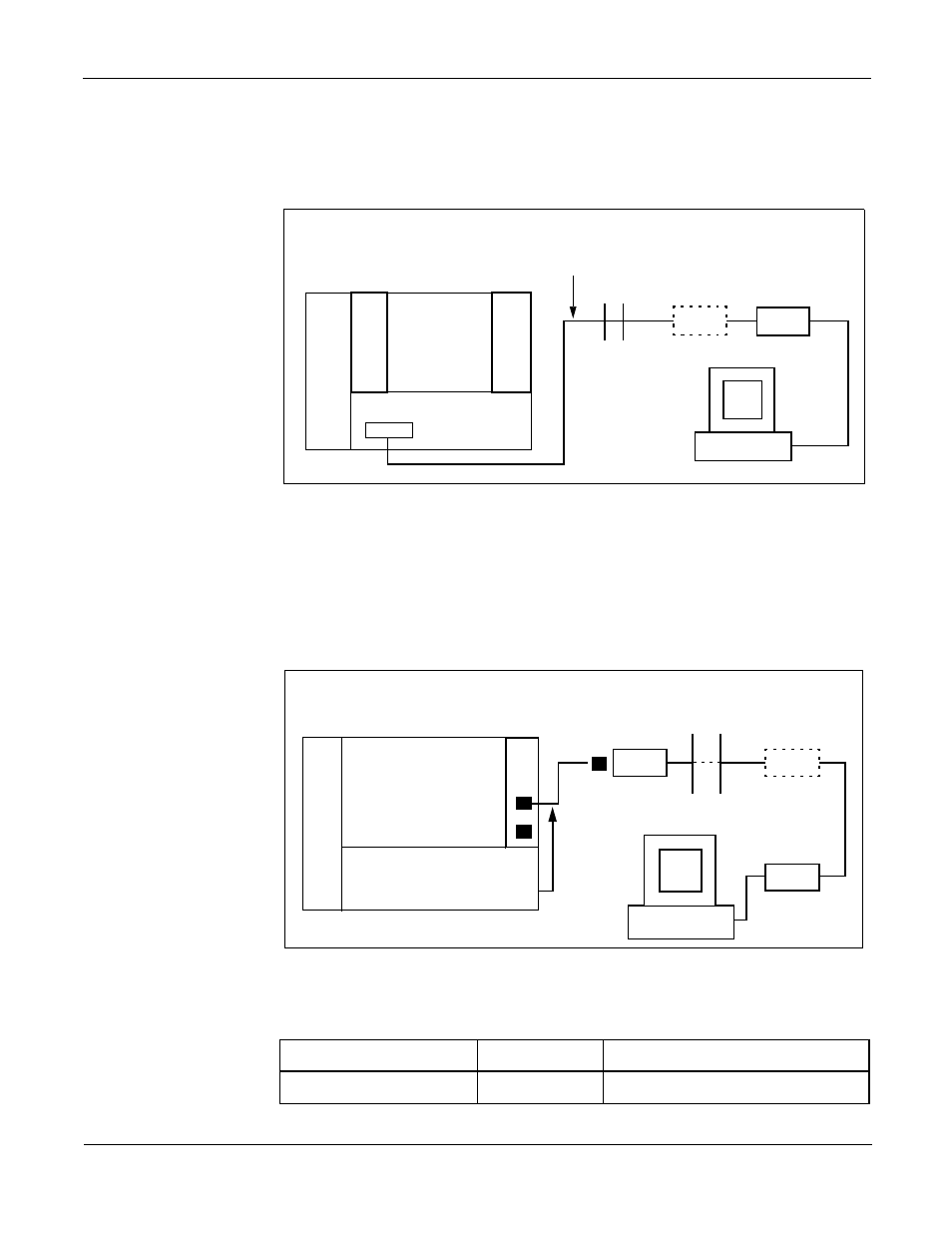

Figure 6-9 MAT Cable Connection (Remote Connection via Internal Modem)
Note 1:
The installation cable is connected to LTC 0, LTC 1, LTC 2 or LTC 3
connector depending on the installed location of the COT card.
Note 2:
The MP to COT connection is made through internal switching of the Time
Division Switch.
Figure 6-10 MAT Cable Connection (Remote Connection via External Modem)
Table 6-9 MAT Cable (Remote Connection via External Modem)
NAME CODE PART NUMBER REMARKS
RS NORM-4S CA-A 151004 RS-232C Cable, 13.1 ft. (4 m)
PIM
MAT
C
O
T M
P
LTC 0
PSTN MODEM
MDF
Installation Cable
Remote Connection via Internal Modem
RS 1
RS 0
M
P
MAT
MODEM
MODEM
PSTN
MDF Slot 13 25p DSUM (M)
RS NORM-4S CA-A 13 ft. (4 m)
Remote Connection via External Modem
