Chapter 6 Cabling Internal Cabling
NEAX 2000 IPS Configuration Guide
NDA-24347, Issue 1
Page 59
AC Cord The AC cord provides a connection between the AC/DC power card and base unit.

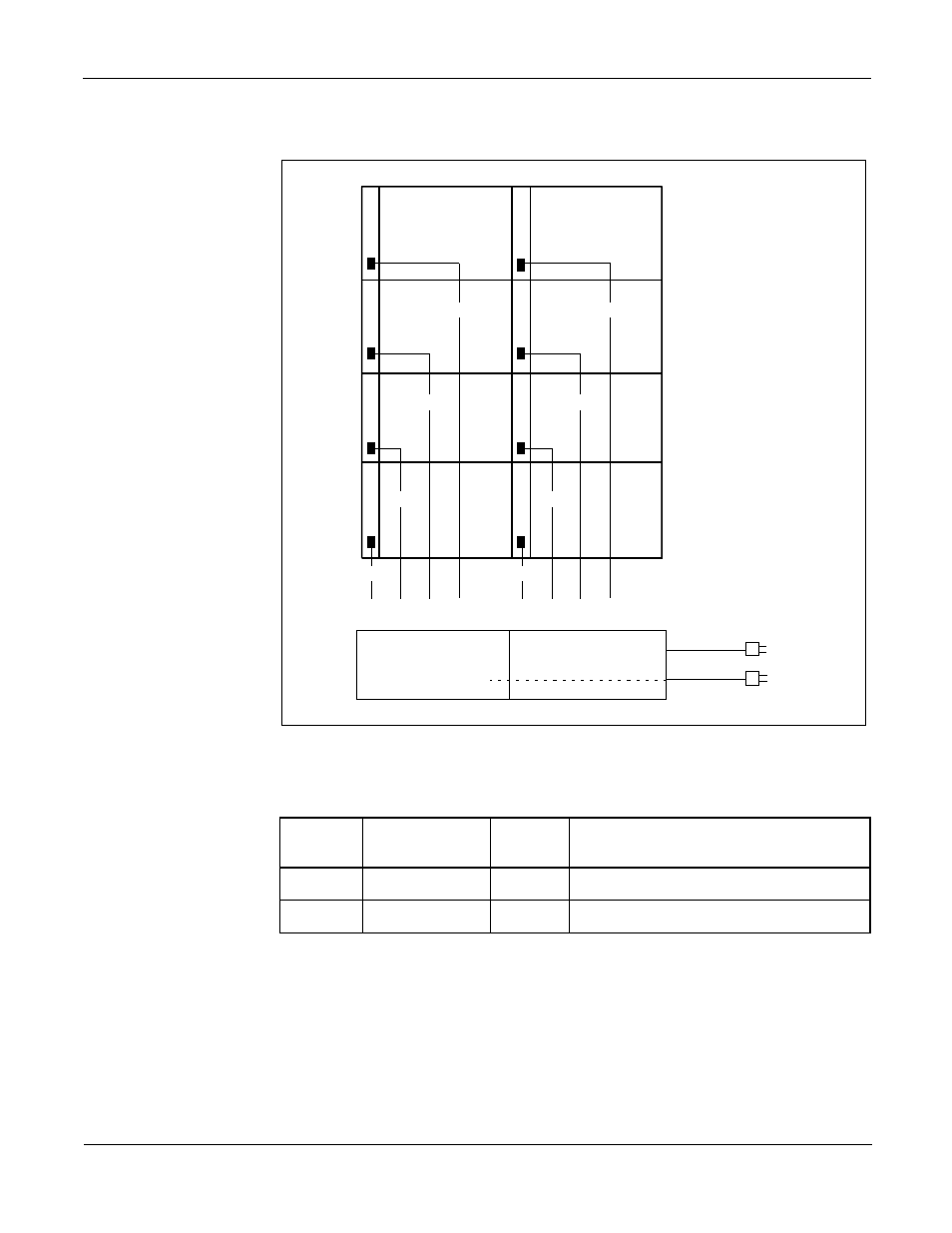

Figure 6-4 AC Cord Connection
Table 6-5 AC Cord
SYMBOL NAME CODE
PART
NUMBER
REMARKS
A AC CORD-B-U 151010 AC Power Cable (Included in PIM)
B AC CORD-D-U 151033 AC Power Cable for Base (Included in Base)
P
W
R
P
W
R
P
W
R
P
W
R
P
W
R
P
W
R
P
W
R
P
W
R
PIM 3
PIM 2
PIM 2
PIM 0
PIM 7
PIM 6
PIM 5
PIM 4
A
A
A
A
A
A
A
A
To Base Unit
B
To AC Commercial Power
Base Unit
