NEAX 2000 IPS Configuration Guide
Page 22
NDA-24347, Issue 1
LAN Cable Connection of IP-PAD Card
Chapter 2 System Configuration
LAN Cable Connection of IP-PAD Card
Connect the LAN connector on the IP-PAD card and the Switching HUB by using a
100 BASE-TX cable.

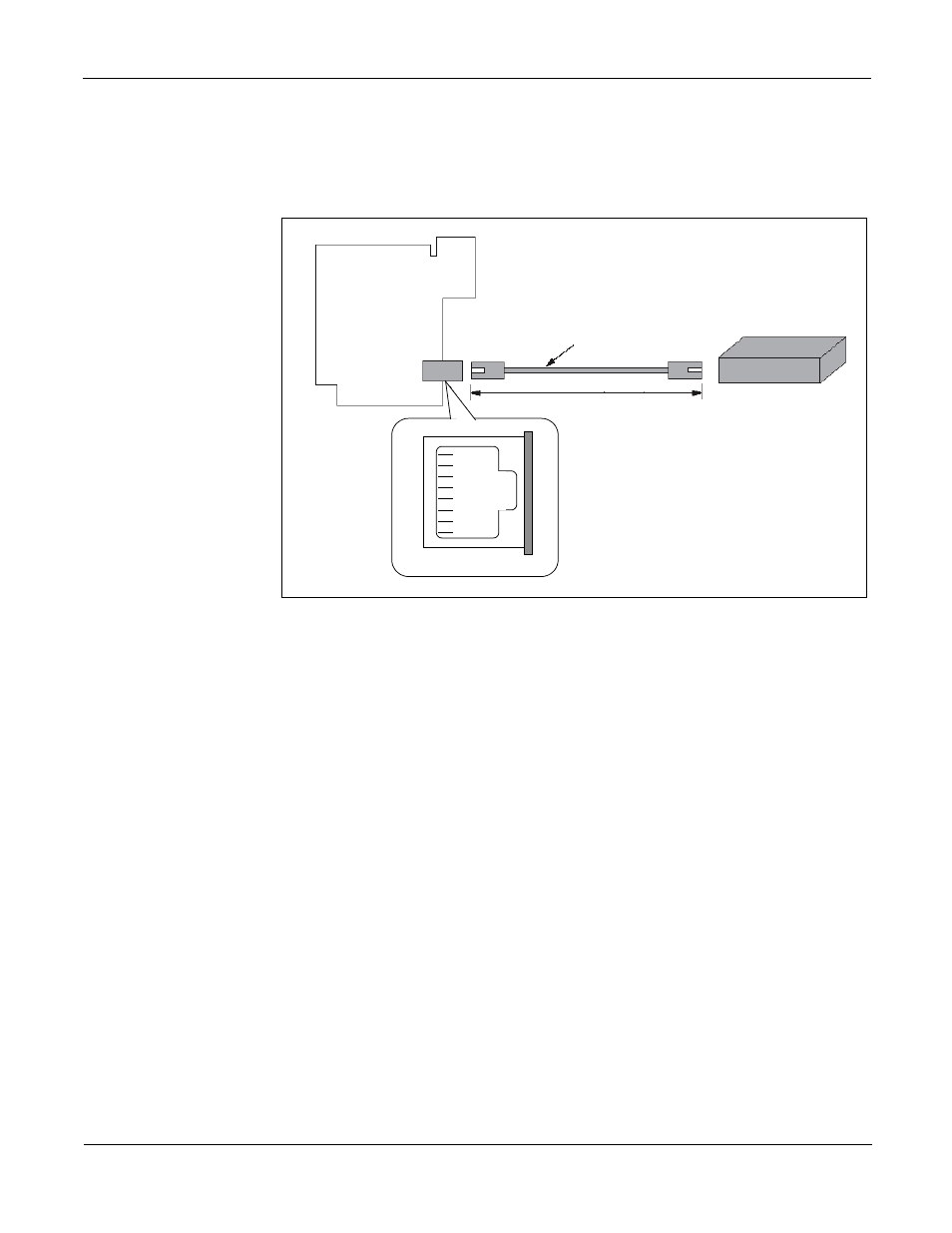

Figure 2-12 IP-PAD - Switching HUB Cable Connection
Maximum 328 ft. (100 m)
100 BASE-TX Cable
Switching HUB
IP-PAD
LAN
Pins (RJ-45 Connector)
8 Not used
7 Not used
6 RD-
5 Not used
4 Not used
3 RD +
1 TD +
Pins (RJ-45 Connector)
2 TD -
