NEAX 2000 IPS Configuration Guide

Page 60

NDA-24347, Issue 1

External Cabling

Chapter 6 Cabling

External Cabling

IP Connection

MP with PZ-M606-A and IP PAD

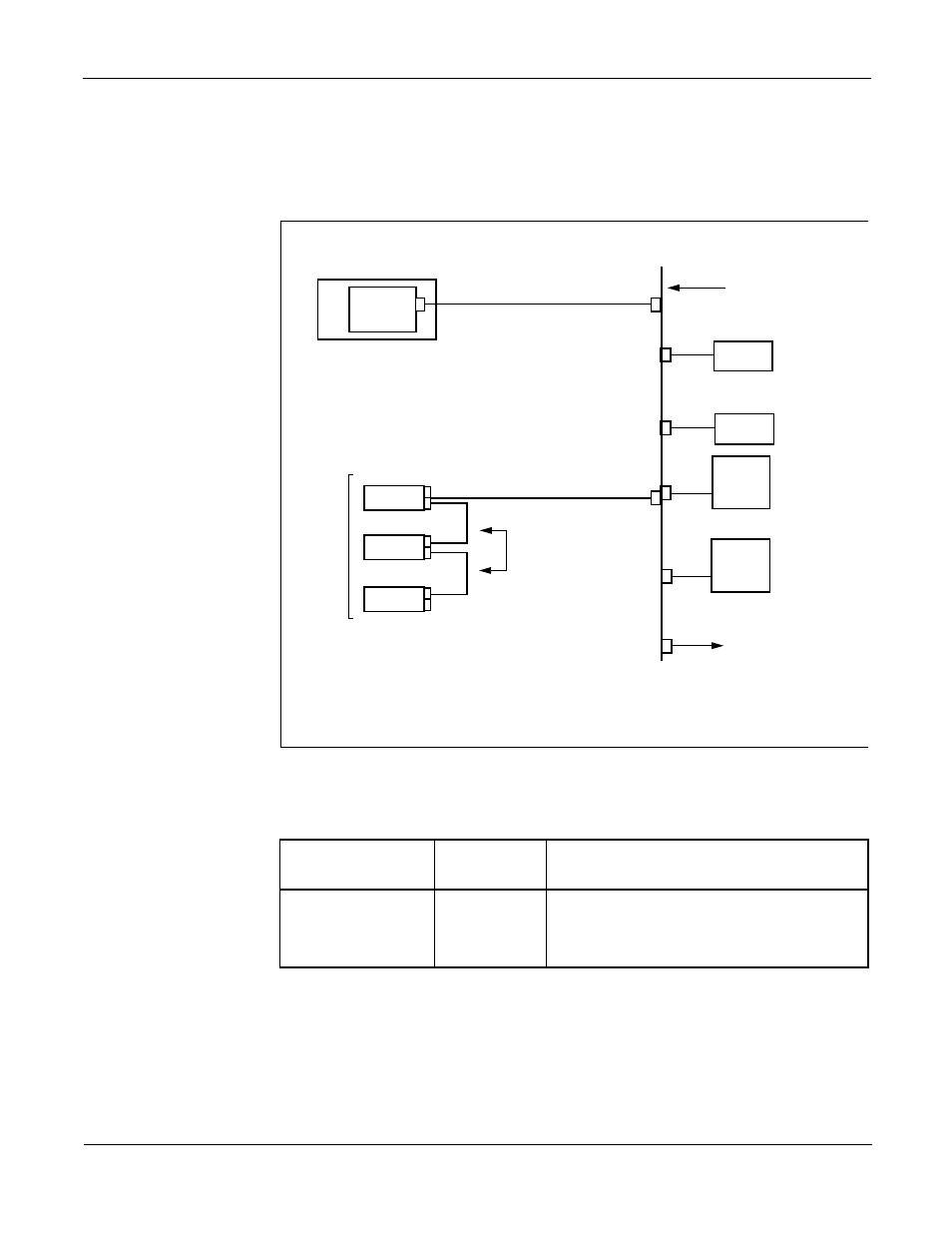

Figure 6-5 IP BUS Cable Connection (IP PAD)

Table 6-6 IP BUS Cable (IP PAD)

NAME CODE

PART

NUMBER

REMARKS

IP TRK BUS CA

151036

IP TRK BUS Cable
• 0.33 ft. (0.1 m)

(Included in SPN-16VCTA IP PAD)

M606-A

10 BASE-T/100 BASE-TX

(Local Supply)

10 BASE-T/100 BASE-TX

(Local Supply)

IPELC

16VCT

IP TRK BUS CA

ETHERNET

Dterm IP

MATWorX (Maximum of two)

OAI Server (Maximum of four)

CCIS over IP via
IP Network
(Linked with distant
NEAX 2000 IPS)

IP PAD
