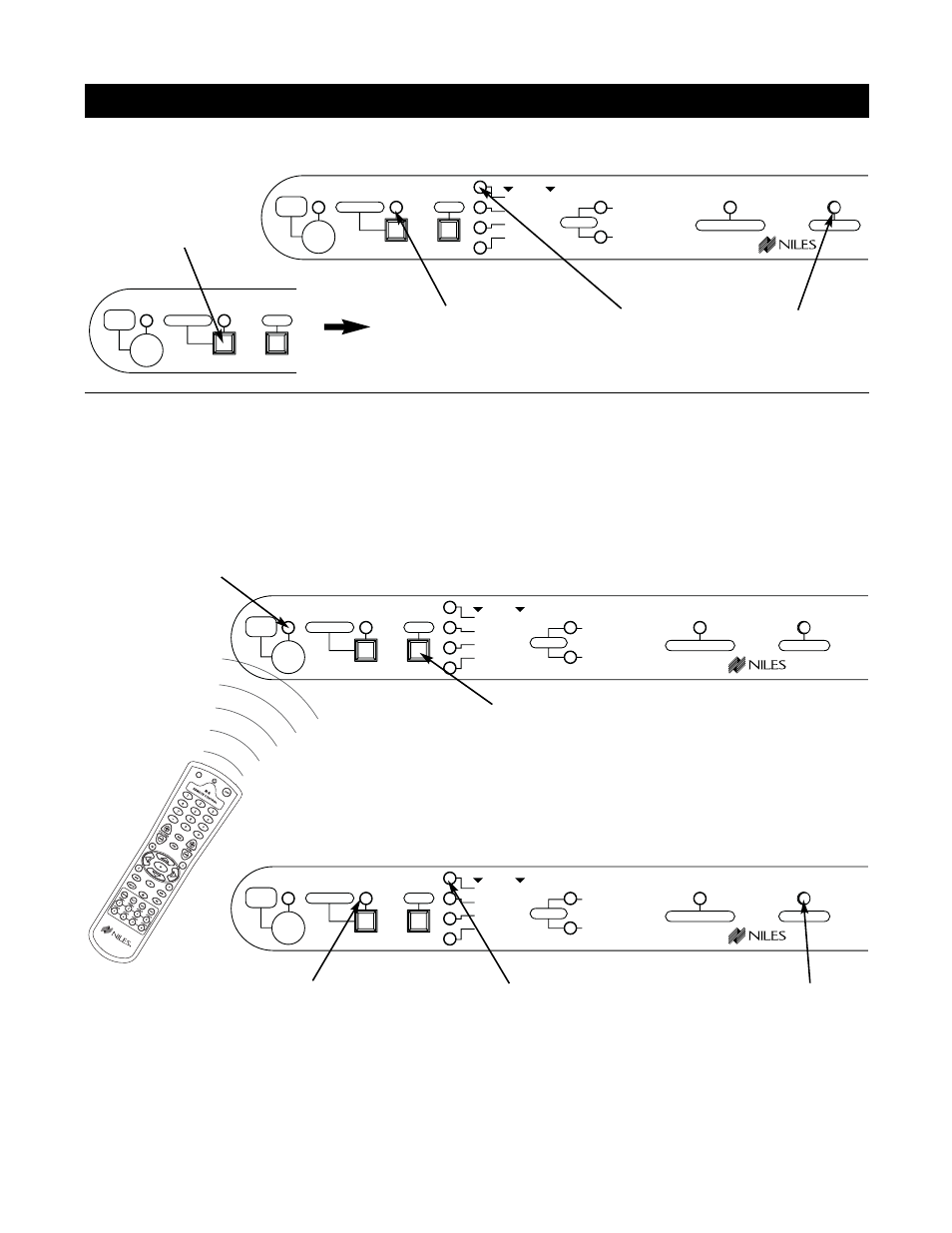

SYSTEM PROGRAMMING STEPS

PROGRAMMING IR COMMANDS

The SEQUENCE
LED lights RED.

The

TUNER 1/2 LED lights

RED indicating Tuner 1.

PROGRAM

ENTER

IR

NEXT

Step 1 - Press and hold

the

PROGRAM button.

Step 2 - T

o program a sequence for Tuner 1, press the keys on the Niles R-8 Remote that correspond to the commands

you wish to include in the sequence. Otherwise, press the

NEXT button and skip to Step 3.

Enter commands and delays from the ZR-8630AV Programming Worksheet in the order you wish them to occur. The
sequence may include as many as 64 commands and/or delays. To include a delay, use the Volume + key (1 second) or
Volume - key (.5 second).

The

ENTER IR LED blinks when

it receives a command.

After entering all commands and/or delays for
the Tuner 1 sequence, press the

NEXT button.

The

SEQUENCE

LED lights RED.

The

TUNER 1/2 LED lights

GREEN indicating Tuner 2.

The

PROGRAM

LED lights RED.
