18

CONFIGURA

TION 3 – DISTRIBUTING SOURCE-COMPONENT AUDIO AND VIDEO SIGNALS

An

AVDA-3 can send video to a maximum of three destinations. If you install three ZR-8630AV units with an

integrated Home Theater Zone (refer to Figure 8), you may connect the cascade output on each AVDA-3 to the
third ZR-8630AV. If a video component has only one composite-video output, look for an S-video or component-
video output (if applicable to the Home Theater). If a video component has two composite-video outlets, connect
one to the Home Theater and the other to an AVDA-3 for distribution to the three ZR-8630AV units. If neither of
those solutions yields suitable results, install two AVDA-3 units per video component.

Important Note: An

AVDA-3 is required whenever you share source components with a Home Theater receiv-

er that shorts its audio inputs. (Some Home Theater receivers short their audio inputs when their power is off
or the input is not currently selected.)

SYSTEM CONFIGURATIONS

MAIN

TUNER 2

3

4

8

HT

L

PAGE

VA

4

Miami, Florida USA

TUNER 2

1

6

8

PAGE

L

R

AUDIO VIDEO

DSS

PHONE

DIGITAL

L

CD CHANGER

R

AUDIO

DIGITAL

L

R

AUDIO

CD

CD

DSS

Video 1

Video 2

VIDEO

FRONT

L

L

R

DIGITAL

1

2

R

CENTER

SURROUND

L

R

Niles IRC-2P

MicroFlashers

Four Pair Twisted Cable

Home Theater Receiver

Source Components

Niles AVDA-3

Distribution Amplifier

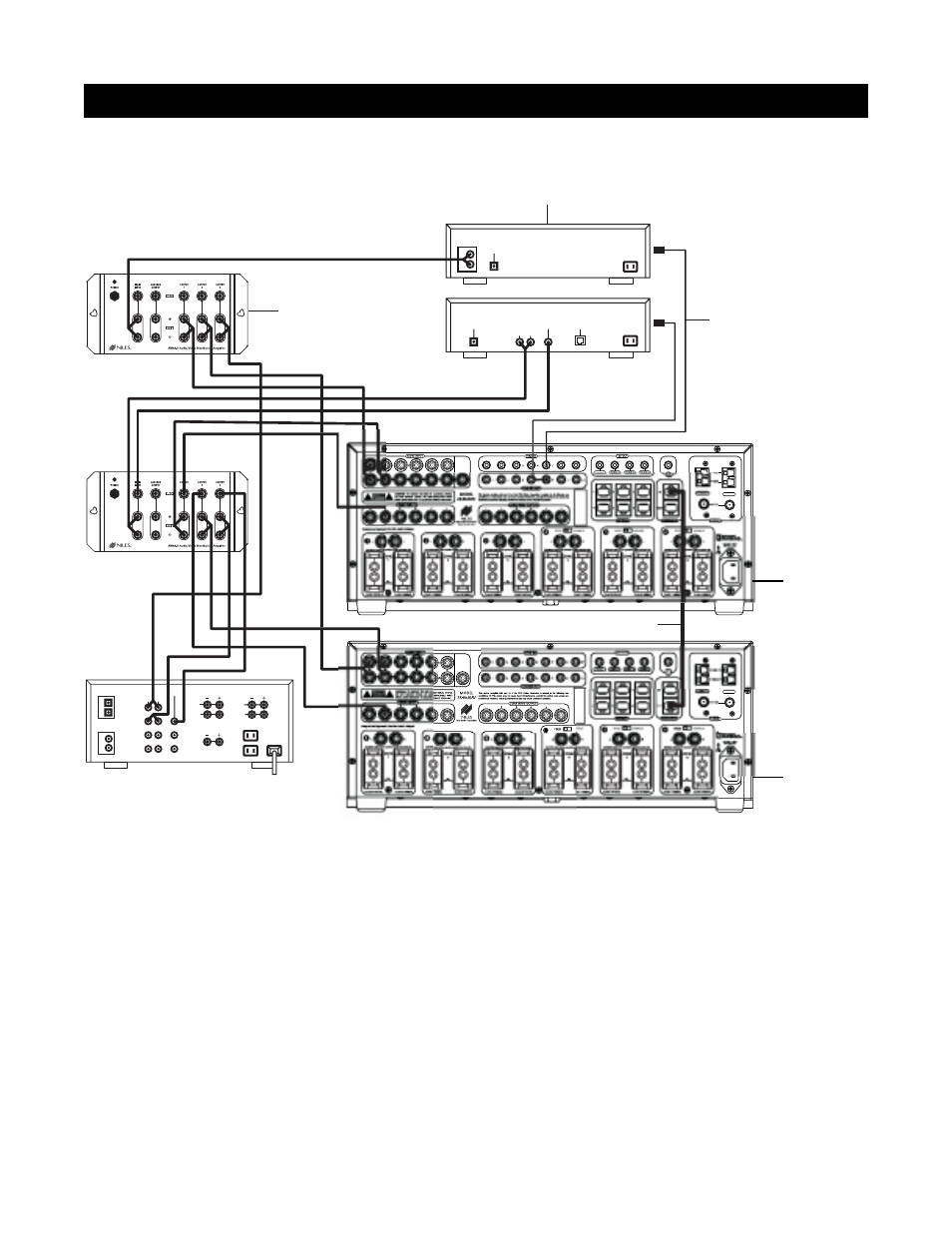

Figure 7

Designated

as the Master

Designated

as Slave #1
