SYSTEM CONFIGURATIONS

CONFIGURATION 3 – DISTRIBUTING SOURCE-COMPONENT AUDIO AND VIDEO SIGNALS

When sharing sour

ce components with three ZR-8630AV units (see Figure 6) or two ZR-8630AV units and a

Home Theater system (see Figure 7), each source—whether audio or video—requires a Niles AVDA-3
Audio/Video Distribution Amplifier.

3

4

8

HT

L

PAGE

Miami, Florida USA

12V OUT

AUDIO INPUT

8

S

IR
IN

VA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Miami, Florida USA

MAIN

12V OUT

TUNER 2

HT

1

6

8

L

PAGE

FLASHER OUT

ALL

Niles IRC-2P

MicroFlashers

Four-Pair Twisted Cable

Source Components

Niles AVDA-3

Distribution Amplifier

L

R

AUDIO VIDEO

DSS

PHONE

DIGITAL

L

CD CHANGER

R

AUDIO

DIGITAL

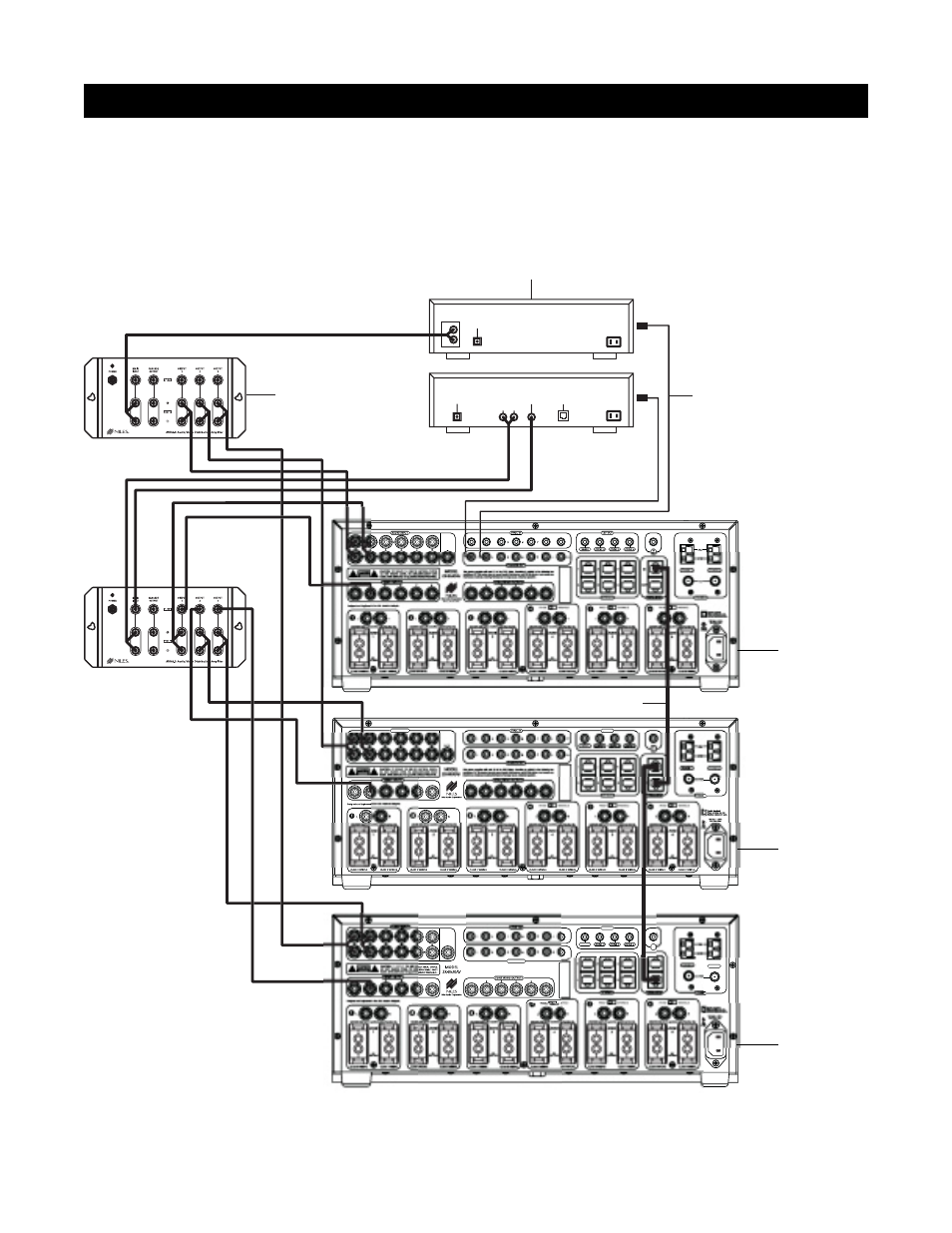

Figure 6

Designated

as the Master

Designated

as Slave #1

Designated

as Slave #2
