49

CONNECTIONS

SOURCE-COMPONENT AUDIO/VIDEO SIGNALS AND
VIDEO SYNCHRONIZATION

1. Video Output from Source Components to the

ZR-8630AV

Connect six external composite video sour

ces with male-

to-male RCA video cables. This connection enables the
ZR-8630AV to know a component’s ON/OFF status by
the presence/absence of a video signal.

2.

Audio Output from Source Components to the
ZR-8630AV

Connect the six external audio sour

ces with male-to-

male RCA audio cables.

TELEPHONE P

AGING

3. Paging Output from Telephone System to the

ZR-8630AV Page Input

Connect the paging output of a telephone system to the

ZR-8630AV with a male-to-male RCA audio cable.

SOURCE-COMPONENT POWER SYNCHRONIZA

TION

SIGNALS

4. Separate 12V Synchronization from a Source

Component to a ZR-8630AV Sync Input

When you obtain a 12V sync signal from a sour

ce com-

ponent (refer to the Source Power Synchronization sec-
tion of this manual for more information), a Niles
Accessory Cable (FG00724) provides proper connection
to any of the six Source Sync Inputs.

IR FLASHERS

5. Low-Output Flasher to the Flasher Outputs

Connect the mini-plug end of a Niles Low-Output

MicroFlasher

, Model IRC-2P (FG00726), into the

Flasher Outputs 3-8. Peel back the tape to attach the
Micro-Flasher portion of the IRC-2P directly over the IR
sensor of the corresponding source component (Source 3
for Flasher 3, etc.).

L

R

1

2

3

4

IR
IN

1

2

LE

4

5

Designed and Engineered in the USA. Made in Malaysia.

L

R

R

L

R

L

Niles Audio Corporation

Miami, Florida USA

.

MAIN

ZONE 5

ZONE 6

12V OUT

TUNER 2

TUNER 1

AM

GND

1

2

3

4

5

6

6

7

8

L

L

L

R

L

R

R

6

7

8

PAGE

5

6

7

ALL

TO REDUCE THE RISK OF ELECTRICAL SHOCK,

ZR-86

R

R

.

.

1

7

18

19

4

6

9

8

13

10

2

16

15

17

3

14

20

5

12

11

1

2

3

4

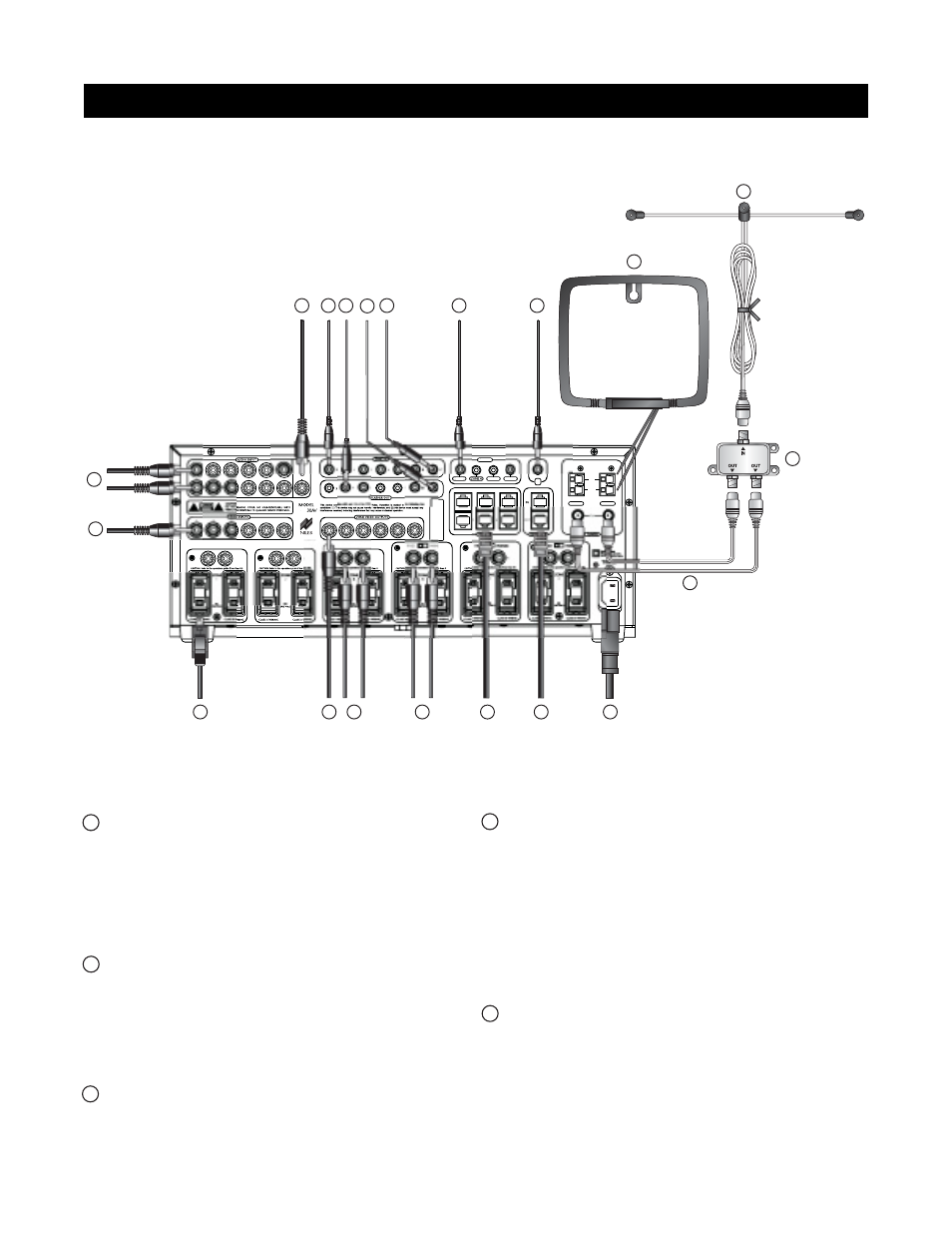

Figure 37
