Source Buttons
T

ap any of these buttons once to turn on the zone and

select a source component. Press and hold these but-
tons to turn on all enabled zones and select the same
source component in all zones.

Zone OFF Button
T

ap this button once to turn OFF your specific zone.

Press and hold this button to turn OFF all zones.

Zone

Volume Buttons

Press and hold these buttons to raise or lower the

volume in your specific zone, or to restore sound in a
muted zone.

Zone Mute Button
T

ap this button once to mute the sound in a zone, or

to restore the sound in a muted zone.

Function Buttons
Press and hold these buttons to issue the individual IR

commands programmed to control the selected
source components.

11

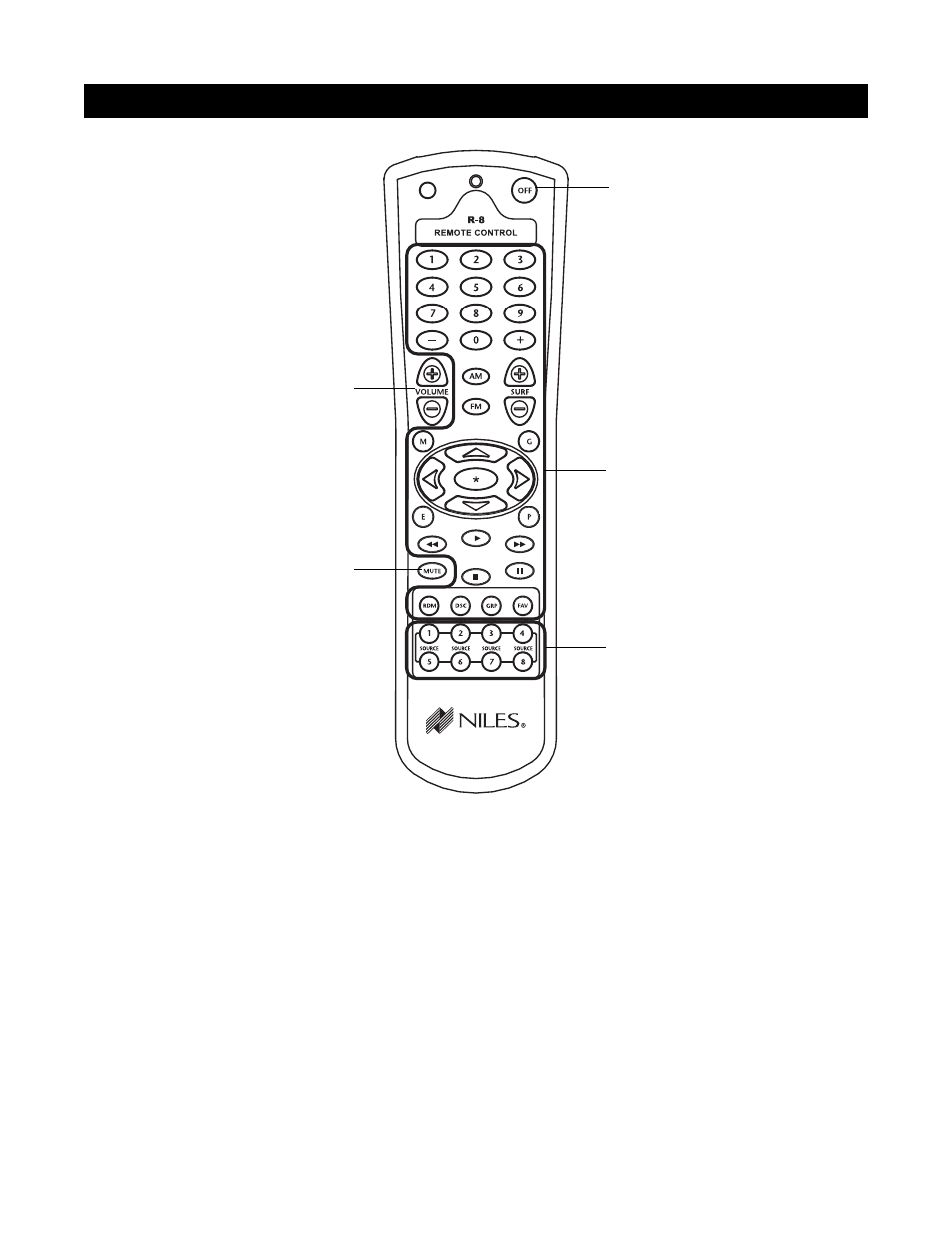

PARTS GUIDE (R-8 R

EMOTE

)

INCLUDED

Zone V

olume Buttons

Zone OFF Button

Function Buttons

Source Buttons

Zone Mute Button

Figure 2
