SYSTEM CONFIGURATIONS

CONFIGURATION 7 – MULTIPLE LISTENING AREAS IN A ZONE

Y

ou can set up a single zone of the ZR-8630AV to contain more than one listening area (i.e., an adjacent liv-

ing room and dining room). Choose this configuration when the speakers in the zone need not play at sepa-
rate volume levels or be ON/OFF separately.

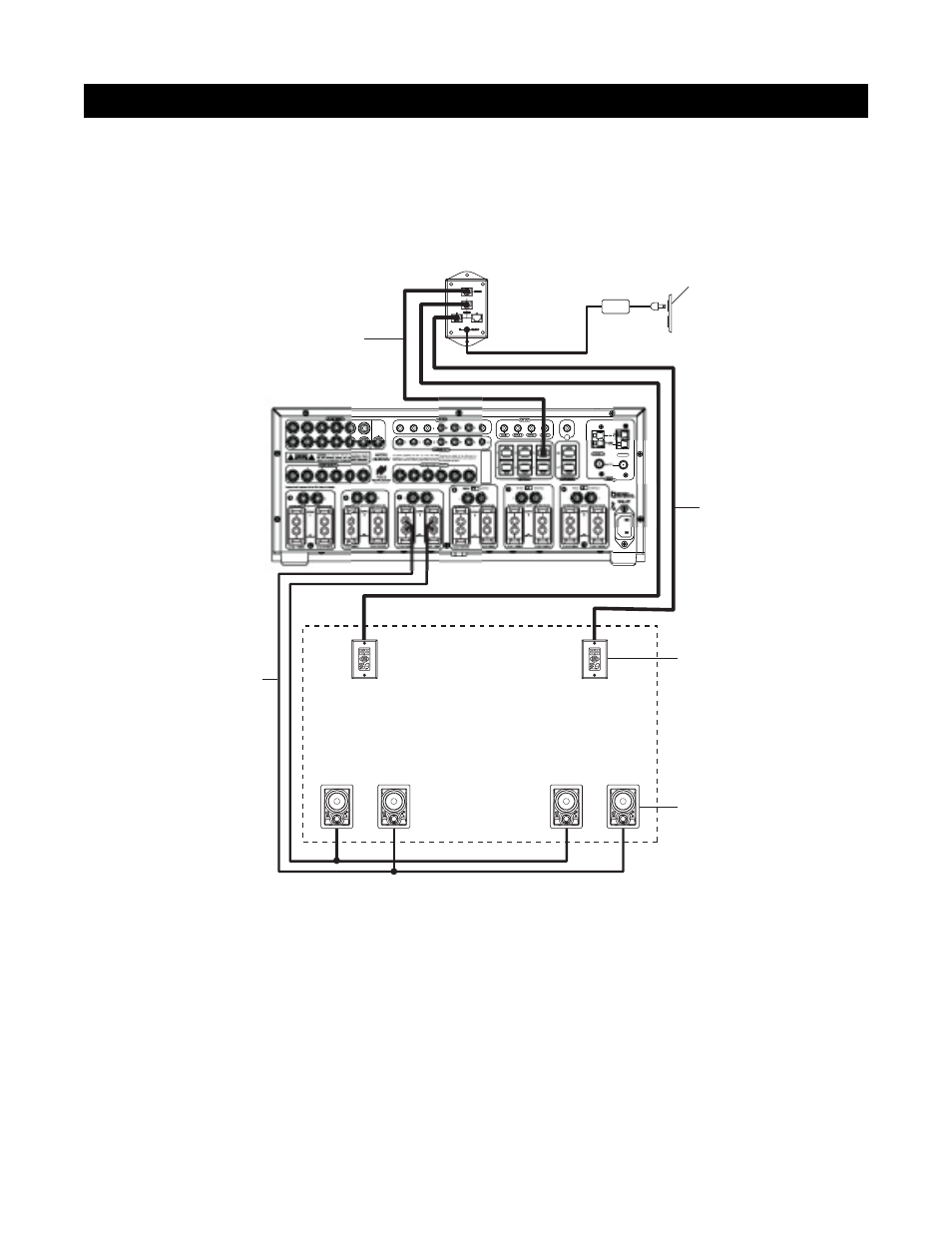

In Figure 11, speaker cable connects to the speaker outputs of Zone 3 and then parallel-connects to the
speakers in both the living room and dining room. Each area has a Master Keypad Module. Use a Niles
IntelliPad

®

Ci Expander

to connect the two Master Keypad Modules in a single zone. All connected keypads

in a zone work in tandem (i.e., all control the same zone and display the same Zone ON/OFF, Mute, and Input
Select Status).

Within a zone, you can use Master Keypad Modules in any combination. All connected keypads in a zone work
in tandem (i.e., all control the same zone and display the same Zone ON/OFF, Mute, and Input Select Status),
except that Solo

and Solo

IR keypads cannot activate or display the status of sources 5, 6, 7, and 8 because they

have only four Master Keys. Activation of these sources in a zone equipped with Solo

or Solo

IR keypads simul-

taneously lights up their Master Keys 3 and 4.

You can add one or two pairs of 8-ohm speakers to a zone in this manner. For zones with more than two pairs
of speakers, an external amplifier is necessary.

IR
IN

TUNER 2

3

4

HT

L

8

PAGE

IN

F

R

AR

E D

SE

N

S

O

R

K

NO

CK

OU

T

IN

F

R

AR

E D

SE

N

S

O

R

K

NO

CK

OU

T

IN

F

R

AR

E D

SE

N

S

O

R

K

NO

CK

OU

T

IN

F

R

AR

E D

SE

N

S

O

R

K

NO

CK

OU

T

Two-Conductor

Speaker Cable

ZONE 3

(Living / Dining Room)

Speakers

Keypads

Living Room

Dining Room

Four-Pair

Twisted Cable

Unswitched

AC Outlet

Four-Pair

Twisted Cable

Power

Supply

Niles

IntelliPad

®

Ci Expander

Figure

11
