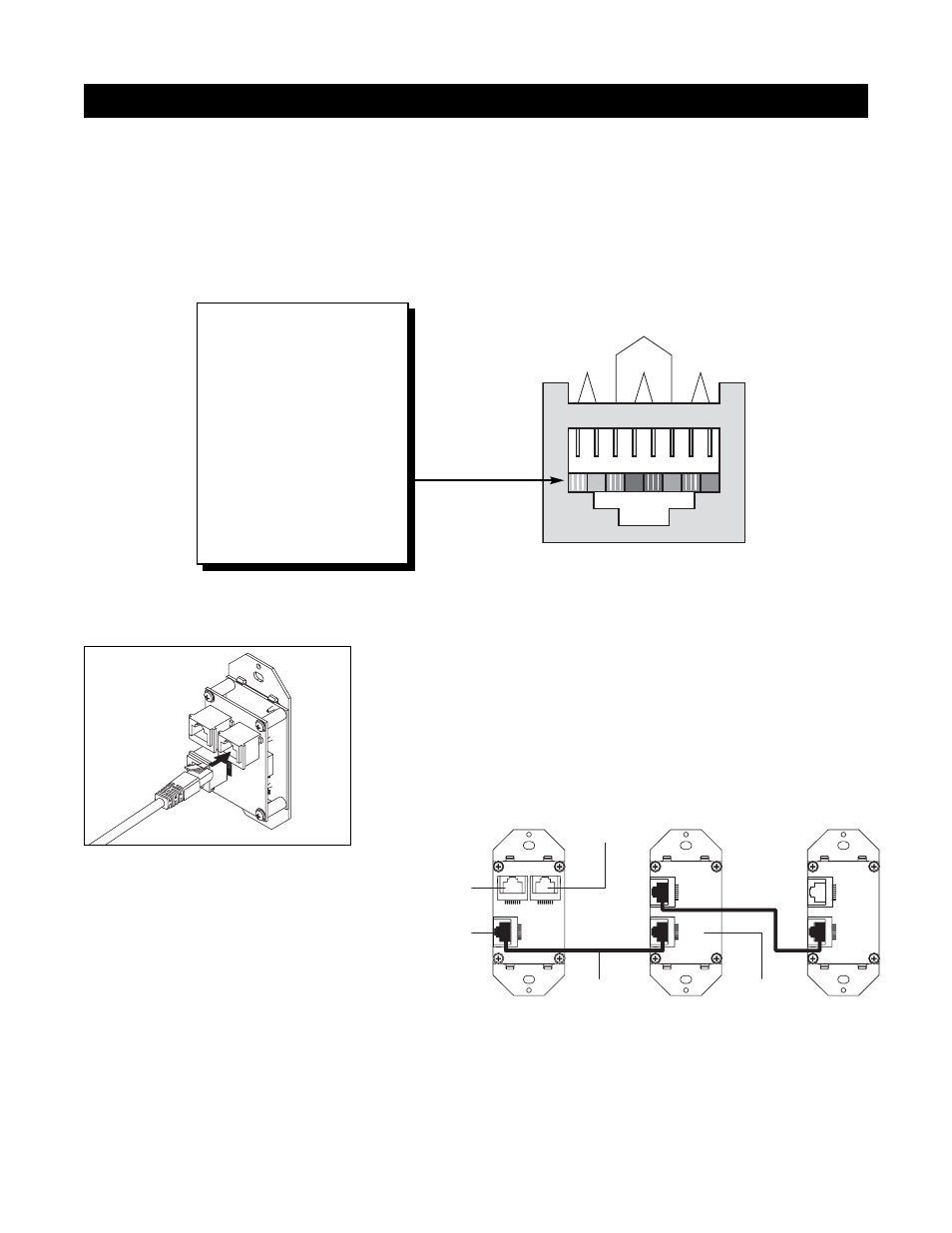

TERMINA

TING FOUR-PAIR TWISTED CABLE

The Select

and Solo

Master Keypad Modules, the Expander, and the ZR-8630AV unit’s system-expansion con-

nections require a four-pair twisted cable with a one-to-one wiring configuration. To maintain consistency
throughout all IntelliPad

®

Ci installations, we recommend the color-coding pattern described in Figure 31, but

you may adopt a different color-coding pattern if you use it consistently throughout the system. IMPORTANT:
use VW-1 rated wire for connection to KEYPADS and 12V OUT terminals.

47

CONNECTIONS

1 2 3 4

Pair 2

Pair 1

T568A

Pair 3

Pair 4

5 6 7 8

1

= Green/White

2

= Green

3

= Orange/White

4

= Blue

5

= Blue/White

6

= Orange

7

= Brown/White

8

= Brown

Figure 31

Select

Master

Keypad Module

Numeric

Accessory

Keypad Module

RJ-45 Connector

for connection to Master

Keypad Module

RJ-45 Connector
for connection to
Numeric

Accessory

Keypad Module

RJ-45 Connector
for connection to
IR Sensors

RJ-45 Connector for

connection to

the ZR-8630AV

Included

Jumper Cable

IR SENSOR

INPUT

OUTPUT

SYSTEM

ACCESSORY

KEYPADS

INPUT

OUTPUT

Transport

Accessory

Keypad Module

Figure 32

Figure 33

CONNECTING ACCESSORY
KEYPADS

Jumper cables (included) mate each

Master Keypad Module with an
optional Accessory Keypad Module.
(See Figure 33.) The Select

Master

Keypad Module mates with both
accessory modules; the Solo

mates

only with the Numeric

.

CONNECTING THE MASTER KEYP

ADS TO THE HOME RUN OF

FOUR-PAIR TWISTED CABLE

T

erminate the home run of four-pair twisted cable with a male

RJ-45 connector. Plug it into the rear-panel SYSTEM jack on the
Select

, Select

IR, Solo

, or Solo

IR Master Keypad Module (see

Figure 32).
