51
CONNECTIONS
CONNECTING AN IR SENSOR FOR LOCAL SYSTEM CONTROL
IR sensors installed in zones for hand-held IR remote control of the ZR-8630A V and its source components also
can control local components (i.e., a TV, DSS, DVD, and a surround-sound system located in the master bed-
room zone as shown in figure 38).
Connect the IR sensor normally to the Master Keypad Module to control the ZR-8630AV and its source com-
ponents. In addition, connect the IR sensor to a local IR repeating system (DATA and GND connections only)
to control local components.
L R
1 2 3
4 5 6
IN
OUT
ZONE 1
KEYPADS EXPANSION
IR
IN
1
ZONE 2
2
ZONE 3
3
FIXED VARIABLE
ZONE 4
4
ZONE 5
5
ZONE 6
6
Double Insulated
When servicing use only
identical replacement parts.
120 Volts ~ 60Hz. 600 Watts Max.
Designed and Engineered in the USA. Made in Malaysia.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
L R L R L R L R L R
FIXED VARIABLE FIXED VARIABLE
Niles Audio Corporation Miami, Florida USA
CLASS II WIRING CLASS II WIRING
CAUTION: Refer to the operations guide if less than 8 Ω .
CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING CLASS II WIRING
MAIN ZONE 4 ZONE 5 ZONE 6
12V OUT
TUNER 2 TUNER 1
AM
FM
GND
SYNC IN AUDIO INPUT
3 4 5 6 7 8 HT
ZONE VIDEO OUTPUTS
1 2 3 4 5 6
VIDEO INPUTS
3 4 5 6 7 8
3
L
R
L
R
L
R
L
R
L
R
4 5 6 7 8 PAGE
FLASHER OUT
3 4 5 6 7 8 ALL
CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. MODEL
ZR-8630AV
CAUTION: Refer to the operations guide if less than 8 Ω . CAUTION: Refer to the operations guide if less than 8 Ω . CAUTION: Refer to the operations guide if less than 8 Ω . CAUTION: Refer to the operations guide if less than 8 Ω . CAUTION: Refer to the operations guide if less than 8 Ω .
TUNERS
8 Ω (4 Ω min.) 8 Ω (4 Ω min.) 8 Ω (4 Ω min.) 8 Ω (4 Ω min.) 8 Ω (4 Ω min.) 8 Ω (4 Ω min.)
TV
Four Pair Twisted Cable
L R
AUDIO VIDEO
DSS
PHONE DIGITAL
L R
AUDIO VIDEO
DVD
RECEIVER
DIGITAL
L R
AUDIO
CD
DVD
Video 3
Video 2
Video 1
VIDEO FRONT
L
L
R
DIGITAL
1
2 R
CENTER
REAR
L
R
12V
D.C.
Niles IRP-6+
(provided for IR control
of local equipment)
Zone 6 – Master Bedroom
ZR-8630AV Distributed Equipment Location
Plugged into
Switched AC outlet
Niles
IRR-4D+
IR Sensor
Select ™ or
Solo ™ Master
Keypad Module
RJ-45 Connector
for connection to
Numeric Accessory
Keypad Module
RJ-45 Connector
for connection to
Master Keypad
Module
RJ-45 Connector
for connection to
IR Sensors
Two Conductor Shielded Cable
(connect DATA and GND only)
Two Conductor
Shielded Cable
Three Wire to
RJ-45 Adapter
RJ-45 Connector
for connection to
the ZR-8630AV
Included
jumper cable
INPUT
OUTPUT
IR SENSOR SYSTEM
ACCESSORY
KEYPADS
Numeric ™ or Transport ™
Accessory Keypad Module

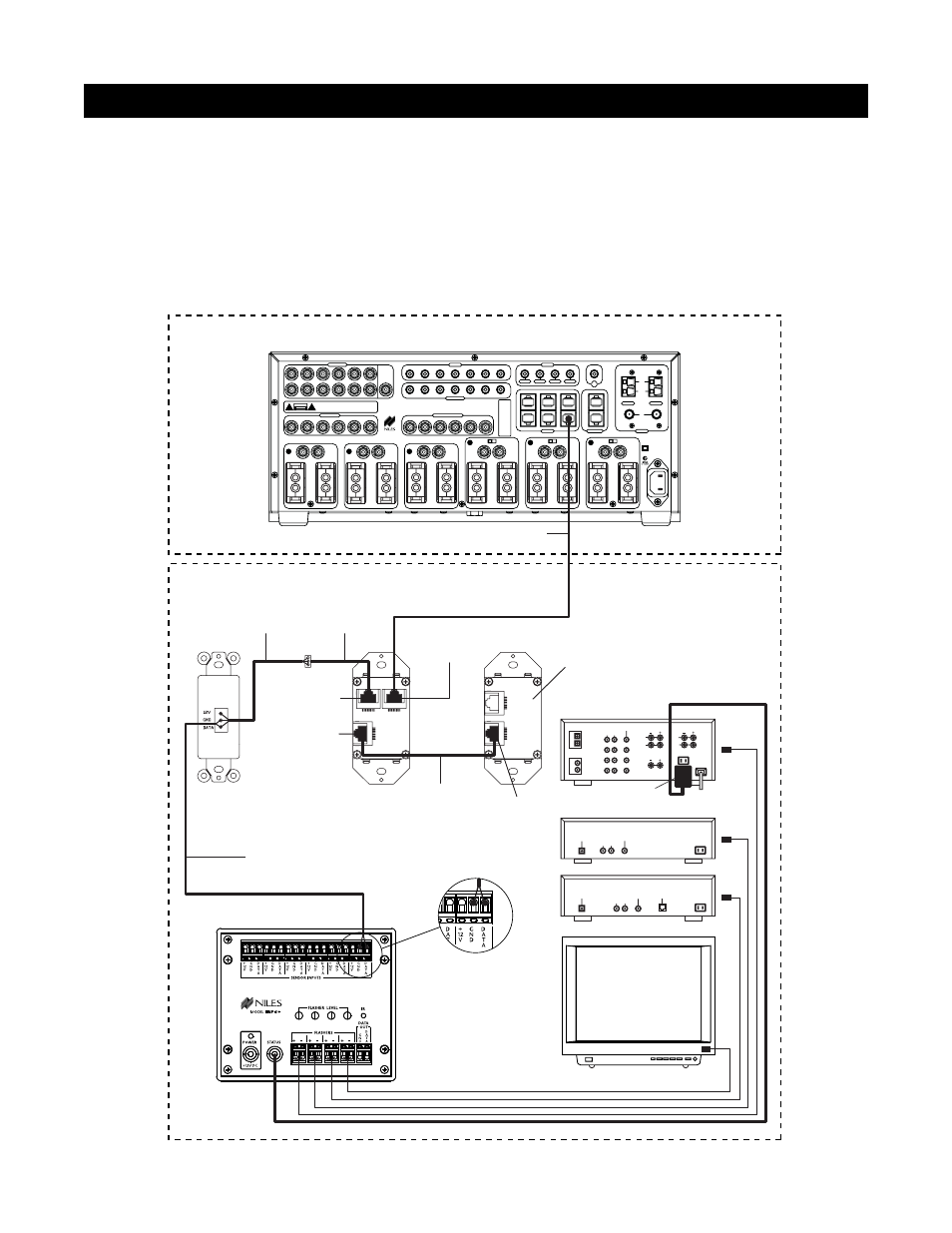

Figure 38
