CONFIGURA TION 11 – SYSTEM PAGING AND EXTERNAL TELEPHONE SYSTEM
For voice paging through the speakers in the listening zones (see Figure 15), a Paging Input connection on the rear panel
of the ZR-8630AV accepts the paging output signal of popular telephone systems. You can adjust the paging volume
level in the ZR-8630AV. (See Installation Settings on page 61 for more information.)
Use a Niles AVDA-3 (see Figure 16) when connecting a telephone system to more than one ZR-8630AV in
larger systems.
SYSTEM CONFIGURATIONS
IR
IN
TUNER 2
3 4 HT L
8 PAGE
PAGE OUTPUT
Telephone
Control Unit
System
Telephones

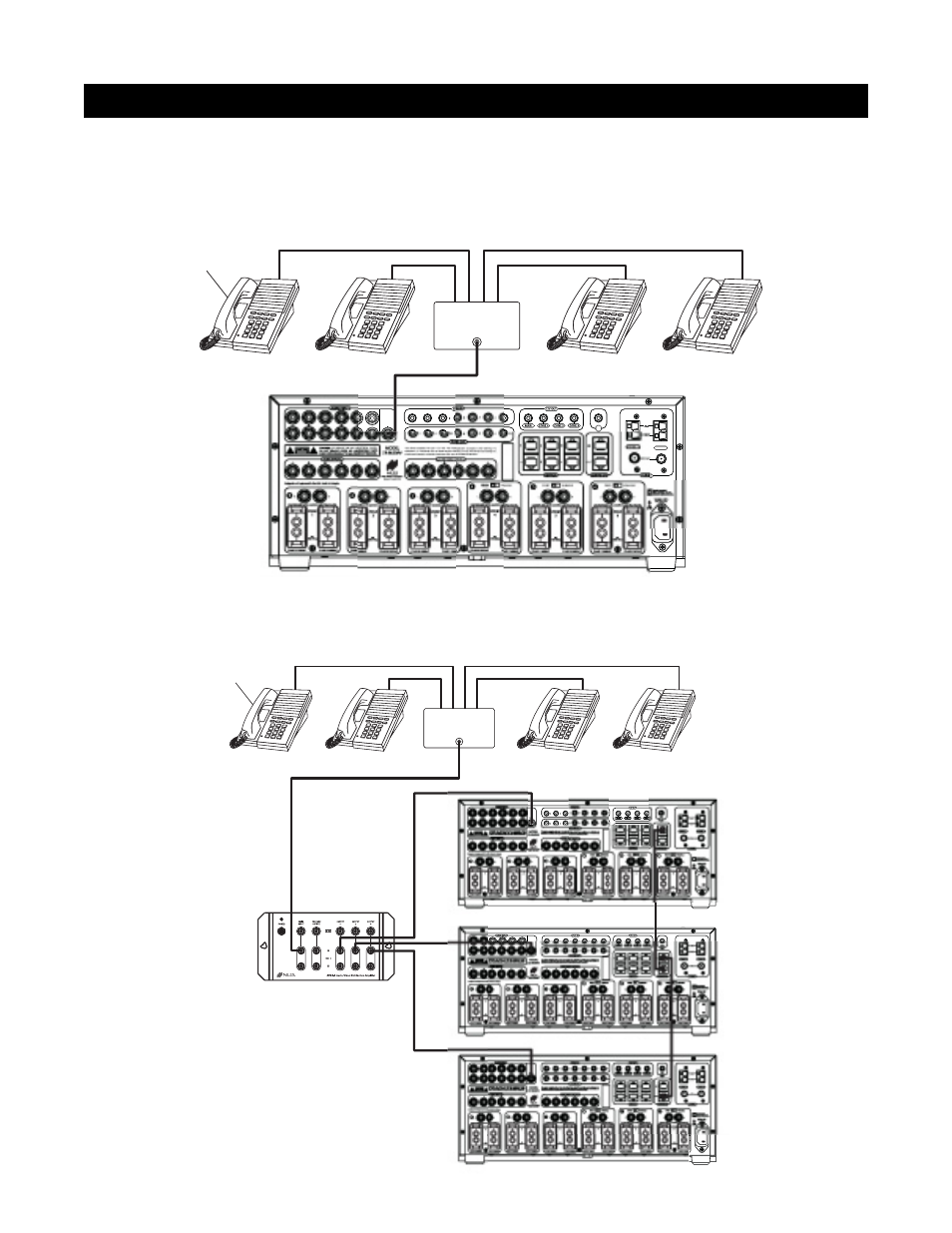

Figure 15
T
8 HT
PAGE OUTPUT
Telephone
Control Unit
System
Telephones
Niles AVDA-3
Distribution Amplifier
Figure 16
