USING THE CONTROL PANEL
EATON Powerware ® 9390 UPS (20–80 kVA) Installation and Operation Manual S 164201603 Rev 2 www.powerware.com 8-8

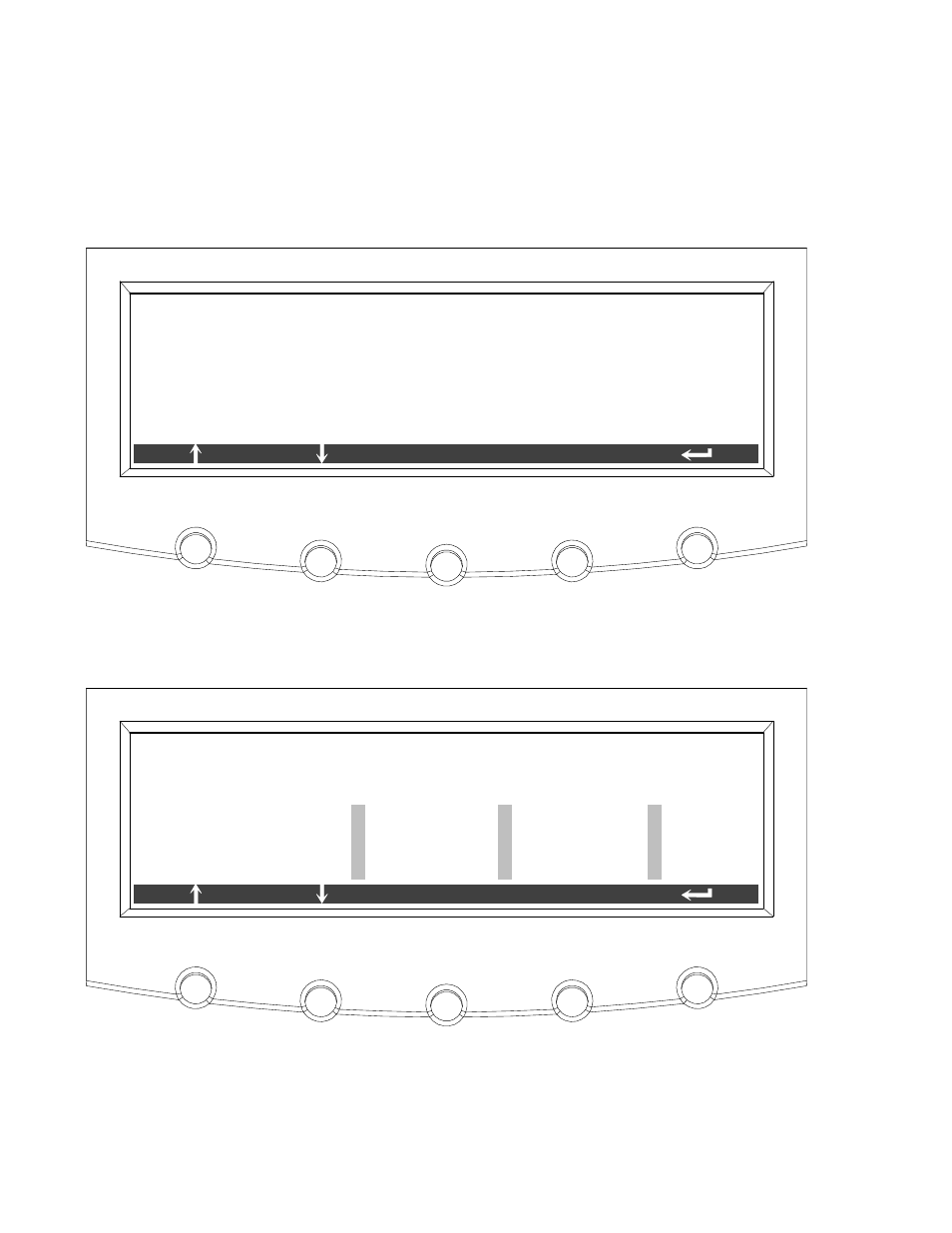

The Battery screen displays the battery voltage (Vdc), the battery current (Idc), the
minutes of battery time remaining, and battery temperature. Battery temperature
must be set up by an authorized Eaton Customer Service Engineer. When battery life
decreases to less than 20%, Check Battery is displayed.
VDC
IDC
TIME REMAINING
***
*** V
A
***
MINUTES
BATTERY - UNIT
UNIT SYSTEM
TEMPERATURE
**
DEGREES C
Figure 8‐9. Unit Battery Meter Screen
The Output Current Screen displays a real‐time bar graph of the output current of the
UPS. The graph shows the current for each phase.
L2 L3 125%
100%
75%
50%
25%
0%
OUTPUT CURRENT - UNIT
L1
UNIT SYSTEM
Figure 8‐10. Unit Output Current (Load) Meter Screen
