INSTALLING THE UPS SYSTEM
EATON Powerware ® 9390 UPS (20–80 kVA) Installation and Operation Manual S 164201603 Rev 2 www.powerware.com 4-4
Rear Shipping Bracket
Skid Bolts (3 places)
Removable Skid
Rear View
Shipping Bracket Bolts
Shipping Bracket
Bolts
Pallet

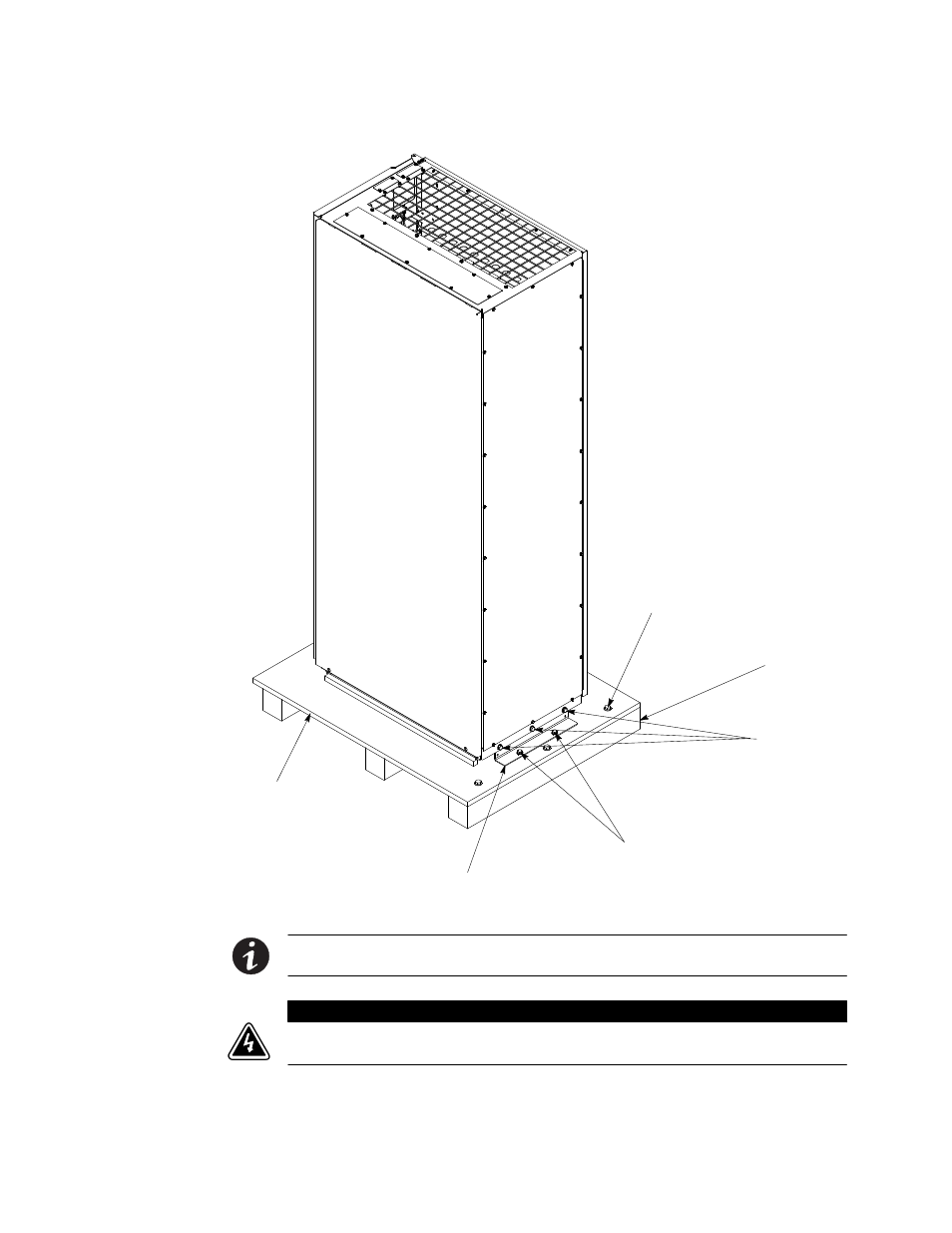

Figure 4‐2. Removing the Rear Shipping Bracket on the Powerware 9390 UPS
NOTE In the following step the pallet tilts and acts as a ramp once the cabinet is rolled beyond the center
of the pallet. Be sure to restrain the cabinet as it continues to roll down the pallet/ramp.
W A R N I N G
Do not stand directly behind the pallet while unloading the cabinet. If unloading instructions are not closely
followed, the cabinet may cause serious injury.
8. Slowly roll the cabinet toward the rear of the pallet. Once the pallet tilts, continue
rolling the cabinet down the pallet until the cabinet is clear of the pallet.
9. Roll the cabinet to the final installation location.
