4 of 6

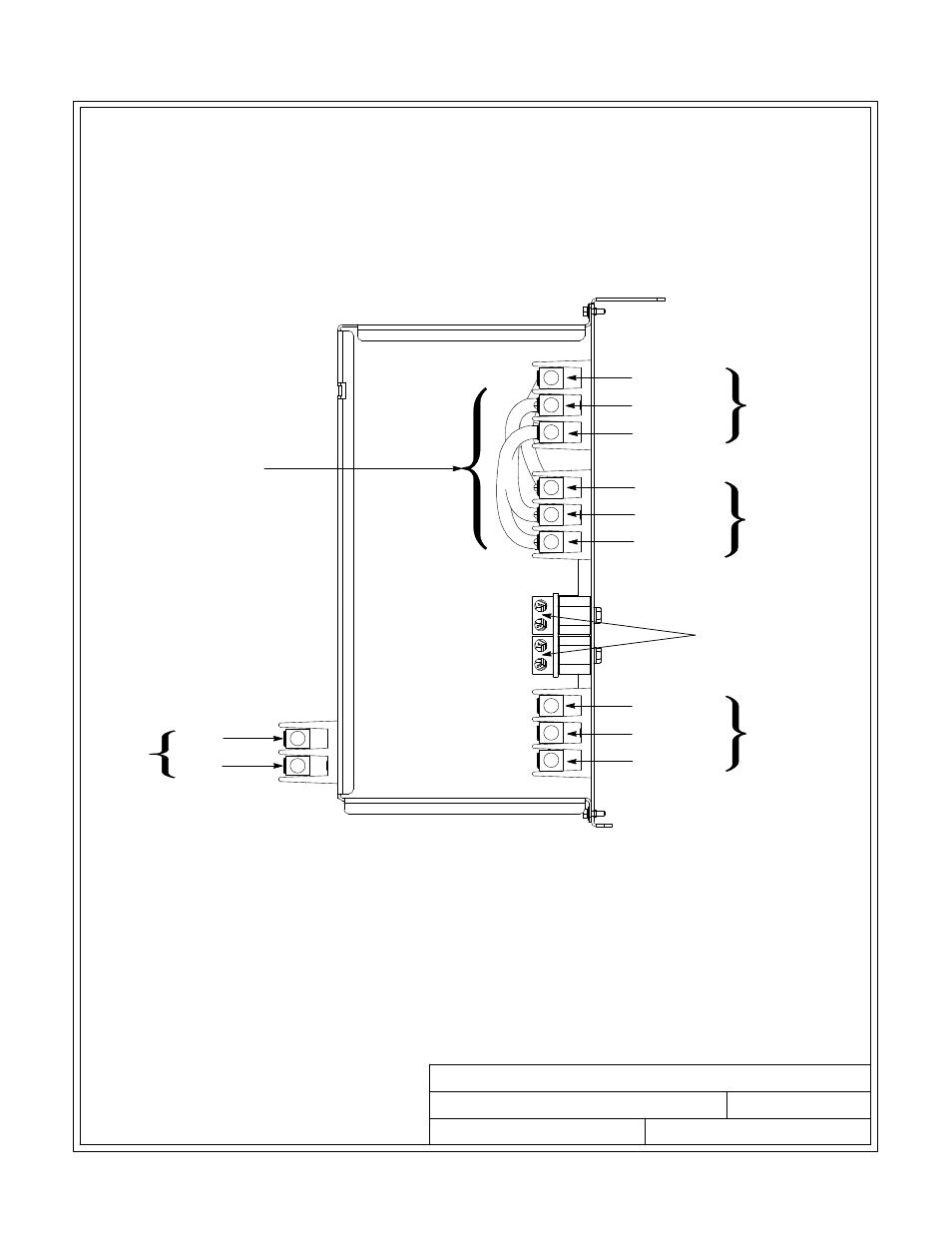

UPS POWER TERMINAL LOCATIONS
071608 B
164201603-7
TERMINAL DETAIL
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVISION:
RIGHT SIDE VIEW
MODEL 40/40
208V/220V INPUT AND 208V/220V OUTPUT
380V/400V/415V/480V INPUT AND
380V/400V/415V/480V OUTPUT
AC INPUT TO
UPS RECTIFIER
(DUAL INPUT)
PHASE A (E1)
PHASE B (E2)
PHASE C (E3)
PHASE A (E9)
PHASE B (E10)
PHASE C (E11)
AC OUTPUT TO
CRITICAL LOAD
PHASE A (E6)
PHASE B (E7)
PHASE C (E8)
AC INPUT TO
UPS RECTIFIER
AND BYPASS
(SINGLE INPUT)
AC INPUT TO
BYPASS
(DUAL INPUT)
DC INPUT
FROM
BATTERY + (E4)
- (E5)
NEUTRAL
TERMINALS
(E12)
SINGLE‐FEED JUMPERS
INSTALLATION INFORMATION
EATON Powerware ® 9390 UPS (20–80 kVA) Installation and Operation Manual S 164201603 Rev 2 www.powerware.com A-39
