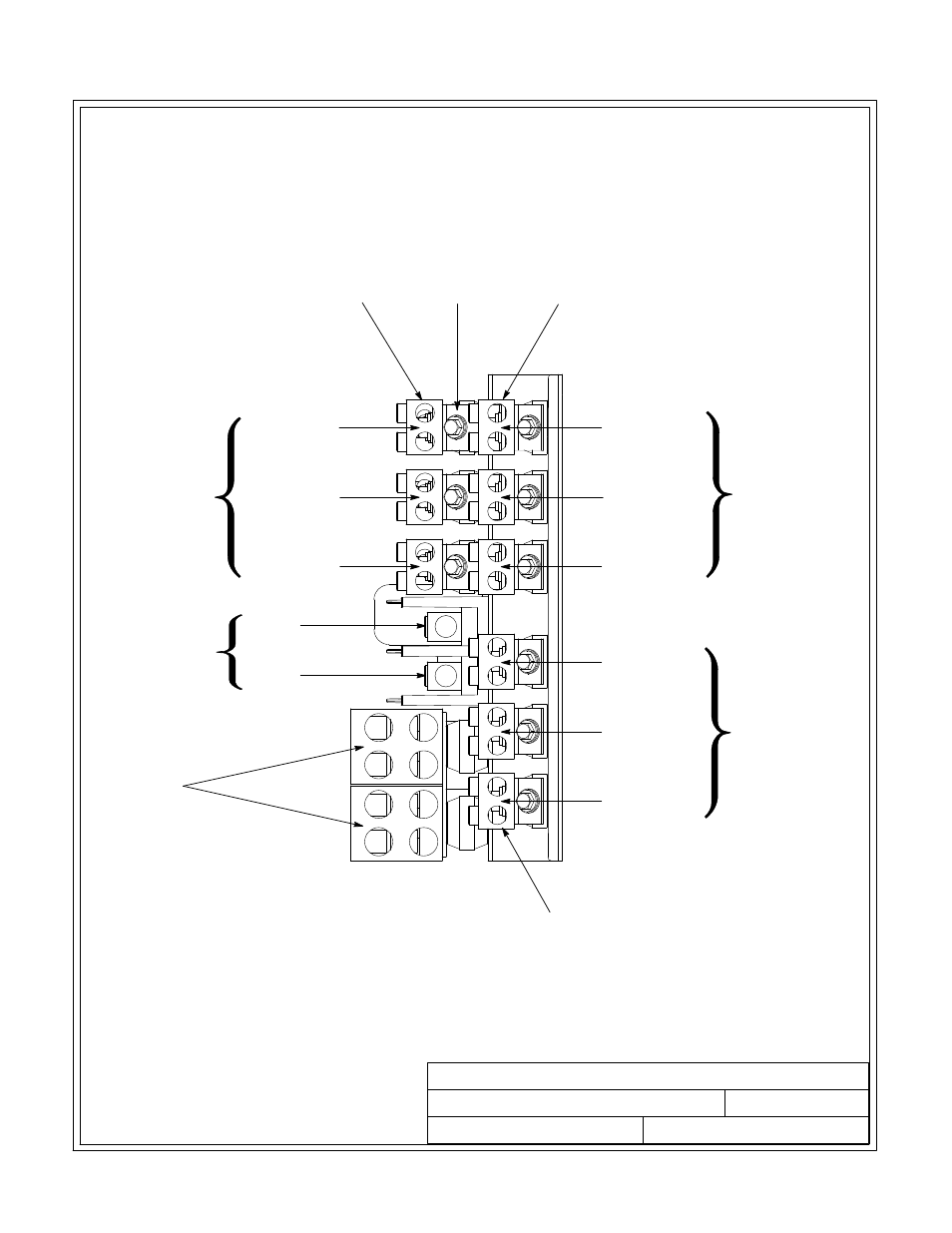

UPS POWER TERMINAL LOCATIONS
091505
A
DESCRIPTION:
DATE:
DRAWING NO:
SHEET:
REVISION:
RECTIFIER INPUT
TERMINALS
BYPASS INPUT
TERMINALS
OUTPUT
TERMINALS
DC INPUT
FROM
BATTERY
+
(E4)
-
(E5)
AC INPUT TO
UPS RECTIFIER
(DUAL INPUT)
AC INPUT TO UPS
RECTIFIER
AND BYPASS
(SINGLE INPUT)
AC INPUT TO
BYPASS
(DUAL INPUT)
PHASE A (E1)
PHASE B (E2)
PHASE C (E3)
PHASE A (E9)
PHASE B (E10)
PHASE C (E11)
AC OUTPUT TO
CRITICAL LOAD
PHASE A (E6)
PHASE B (E7)
PHASE C (E8)
TERMINAL DETAIL
MODELS 80/40, 80/50, 80/60, AND 80/80
208V/220V INPUT AND 208V/220V OUTPUT
RIGHT SIDE VIEW
NEUTRAL
TERMINALS
(E12)
SINGLE‐FEED
JUMPERS
INSTALLATION INFORMATION
