Turning Power On and Off

This section describes the procedures for connecting the power cable to the ATM
Switch and the procedures for turning the power on and off.

Connecting the
Power Cable

Make sure the power unit fastening screw on the back of the ATM Switch is
properly screwed. Connect the power cable to the power connector and the other
end of the cable to power supply, for example, the power outlet.

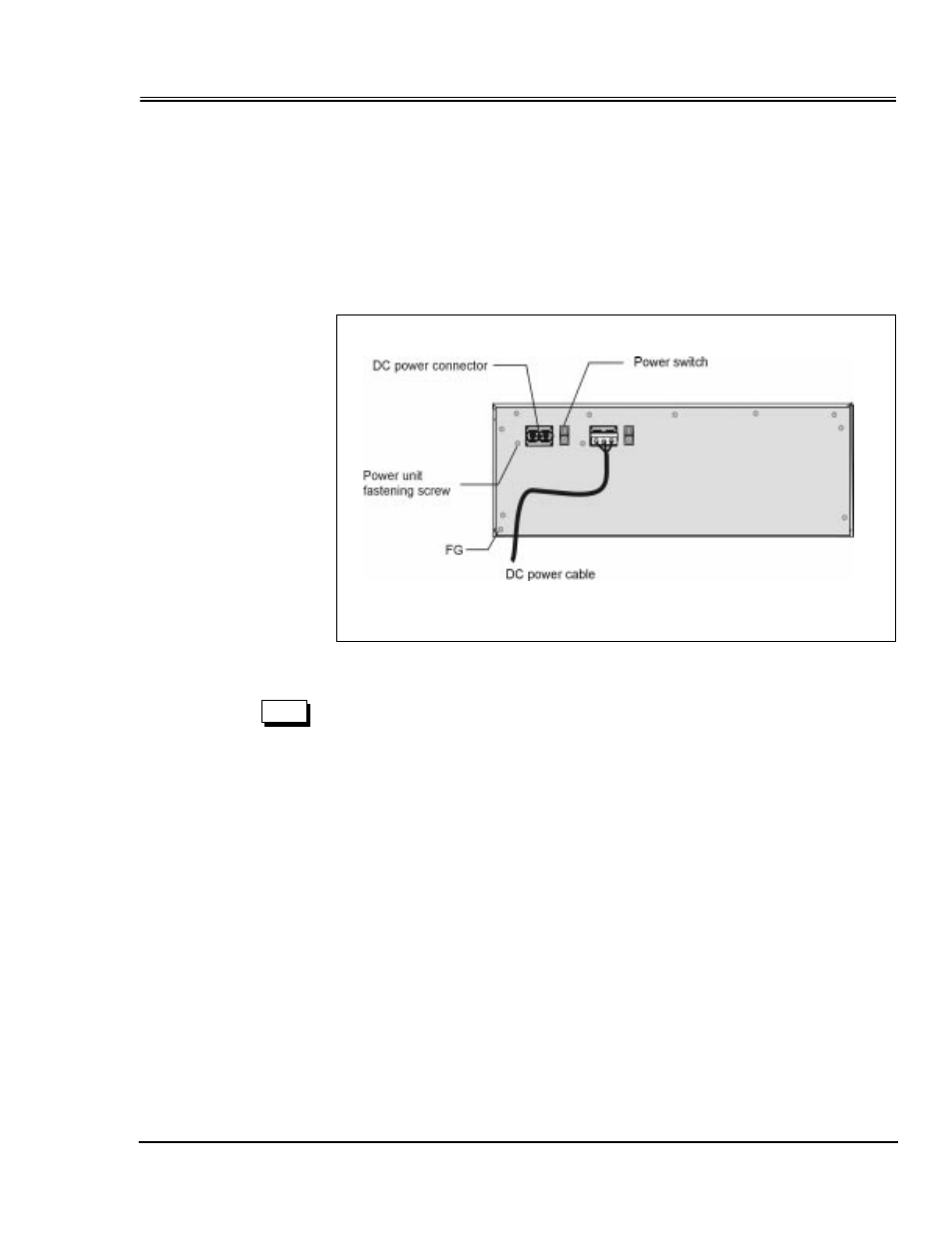

Figure 7-12: Connecting the Power Cable

DC power cable : White (0V), Brack (-48V), Green(FG)

Since maximum power consumption is large, be sure to draw power directly from
an outlet. Never share the same outlet with other devices. Never connect the
ground wire to a gas pipe.

NOTE
