Installation
Installation Conditions
Centillion 1200N ATM Switch User Manual
7-3
NTP 297-8103-903
Installation
Space

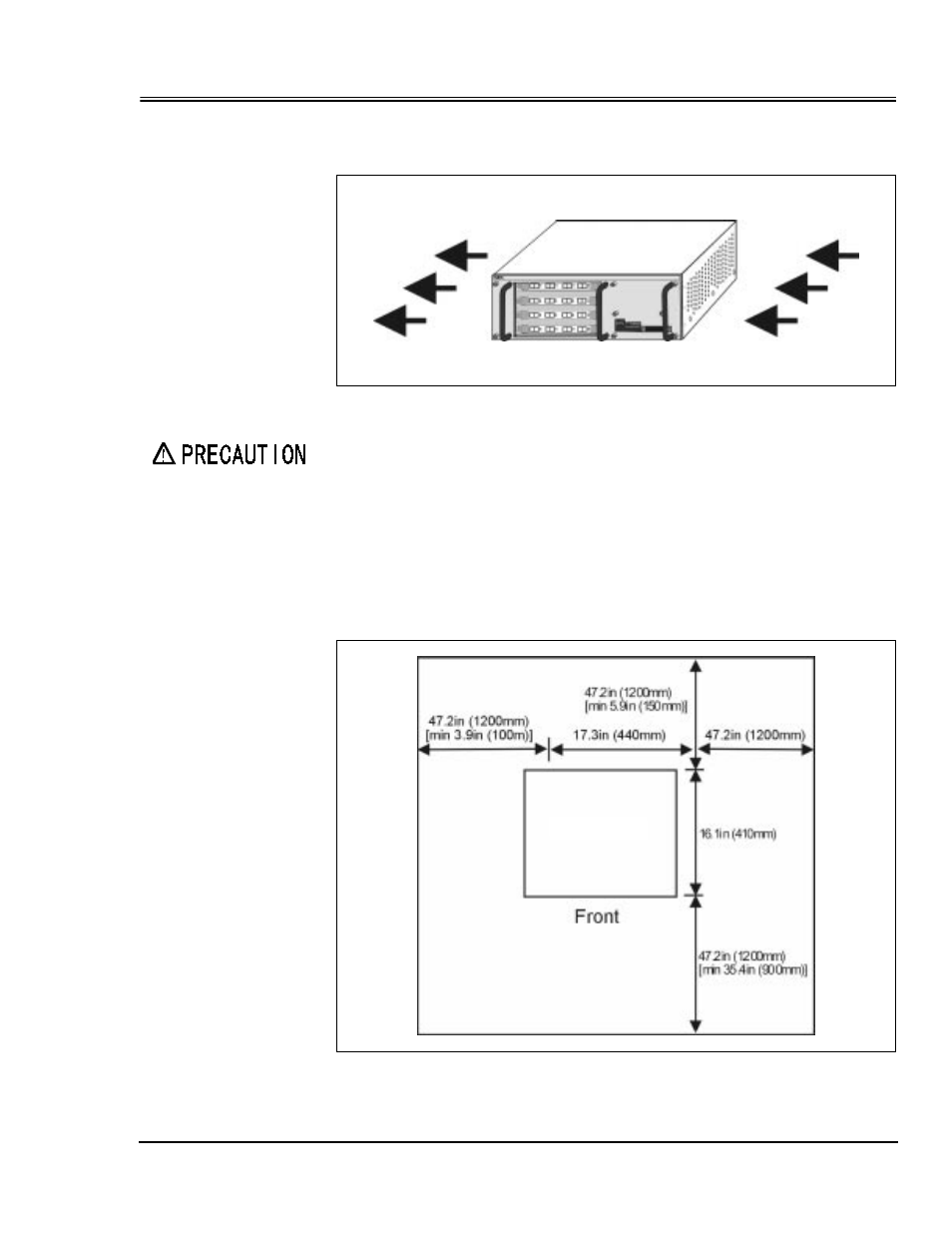

The air flows from the right to left as shown in
Figure 7-2: Air Flow
To allow the ATM Switch to radiate heat, be sure to install it sufficiently
away from walls and other equipment.
Allow adequate distance away from areas prone to heavy foot traffic and from
doors.
Installation area necessary when installing the ATM Switch is as follows.
Floor Space Requirements
Figure 7-3: Floor Space Requirements
Centillion
Centillion
