Description and Function of Components
Nomenclature and Functions
3-8
Centillion 1200N ATM Switch User Manual
NTP 297-8103-903
155 Mbps UTP5
Line Card

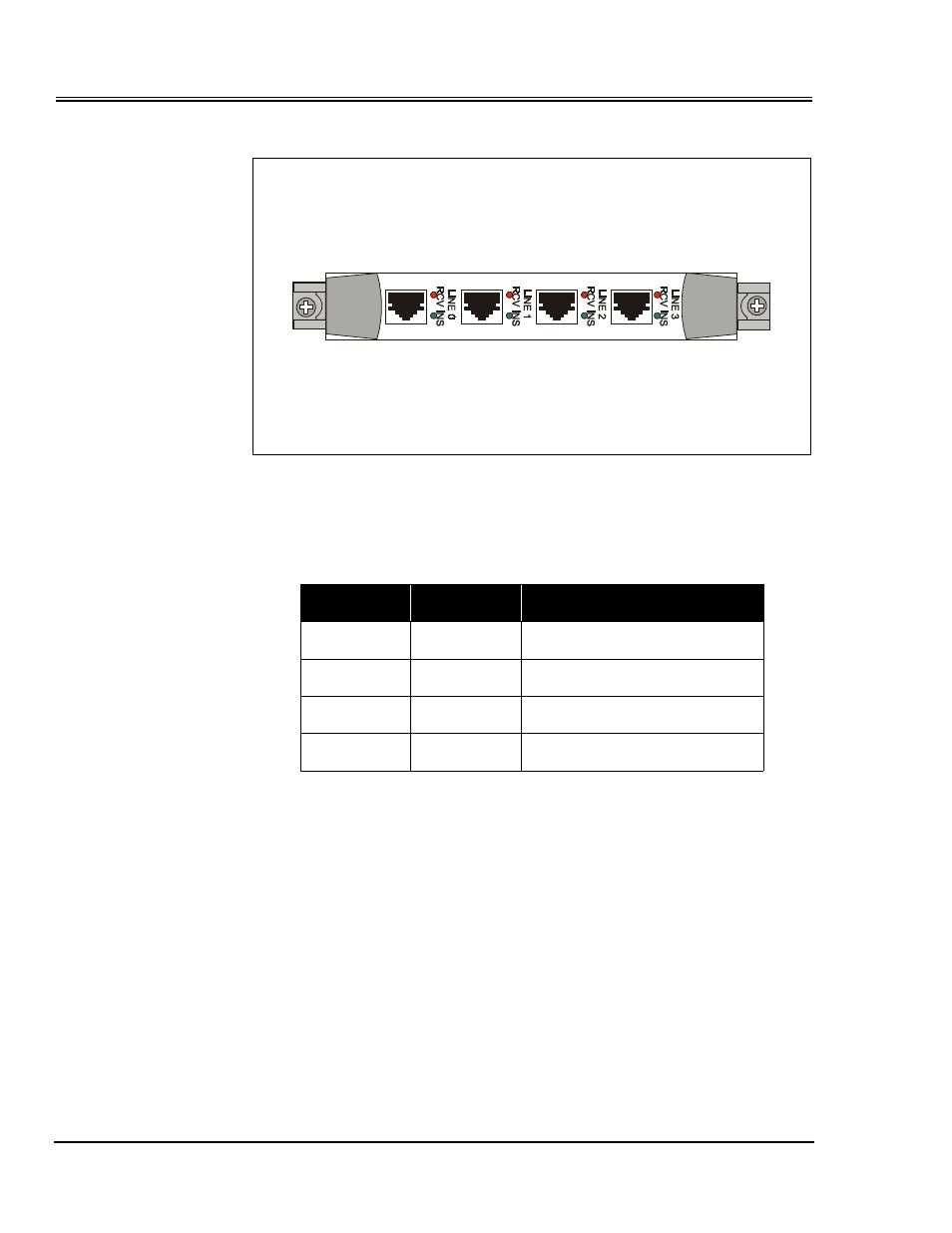

Figure 3-6: Front View of 155 Mbps UTP5 Line Card
RCV/INS
Available for each line, these lamps indicate the status of that particular line.
RCV (red)
INS (green)
Status
Off
Lighted
Line status normal
Lighted
Off
Line error (reception error)
Off
Flashing
Line error (transmission error)
Off
Off
Hardware error
