Nomenclature of the ATM Switch
Nomenclature and Functions
3-4
Centillion 1200N ATM Switch User Manual
NTP 297-8103-903
Back View
Power Switch
This switch is used to turn the ATM Switch on and off.
DC Power Connector
This connector is used to connect the power cable.
Power Unit Fastening Screw
This screw is used to fasten the power unit to the main unit and ground the ground
wire inside the main unit for safety.

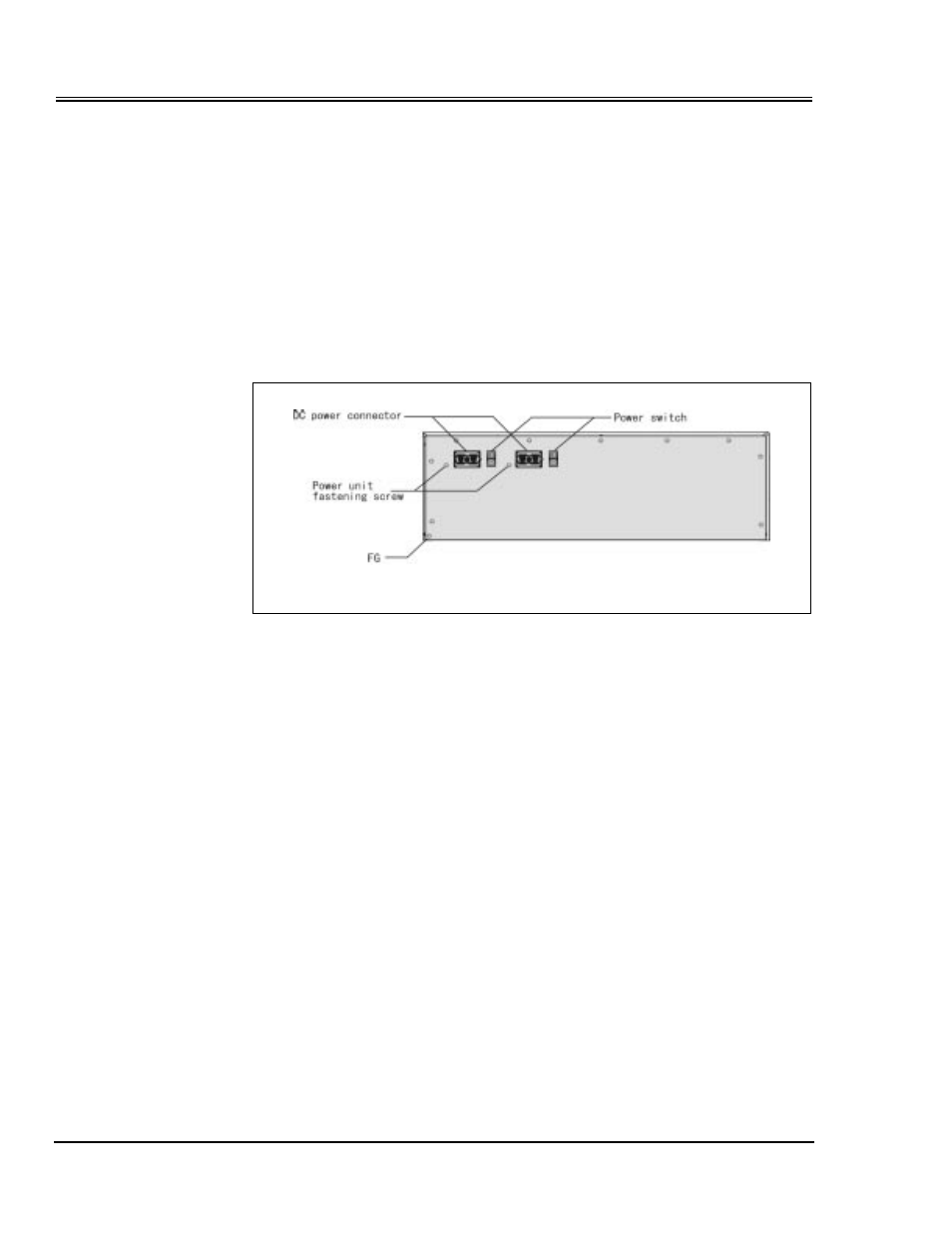

Figure 3-2: Back View of the ATM Switch
