Line Card Installation
Centillion 1200N ATM Switch User Manual
10-9
NTP 297-8103-903
Line Card Installation
This section describes the procedures for installing a line card. It also describes the
procedures for installing a front plate over an idle line card slot.
Several types of line cards are available (listed below). They are all installed the
same way.
„
OC-12c-SMF(622 Mbps) (from November 1996)
„
OC-3c/STM-1 -MMF
„
SMF, -UTP-5 (155 Mbps)
„
TAXI-MMF(100 Mbps)
„
J2 (6.3 Mbps), DS3 (45 Mbps)
„
E3 (34 Mbps)
„
FR-DS1
„
CE-DS1
„
CE-E1
Inserting a Line
Card
1.
Clean the connector with cleaner before inserting the line card.
2.
Each line card is equipped with ejectors. Close the ejectors before inserting
the card.

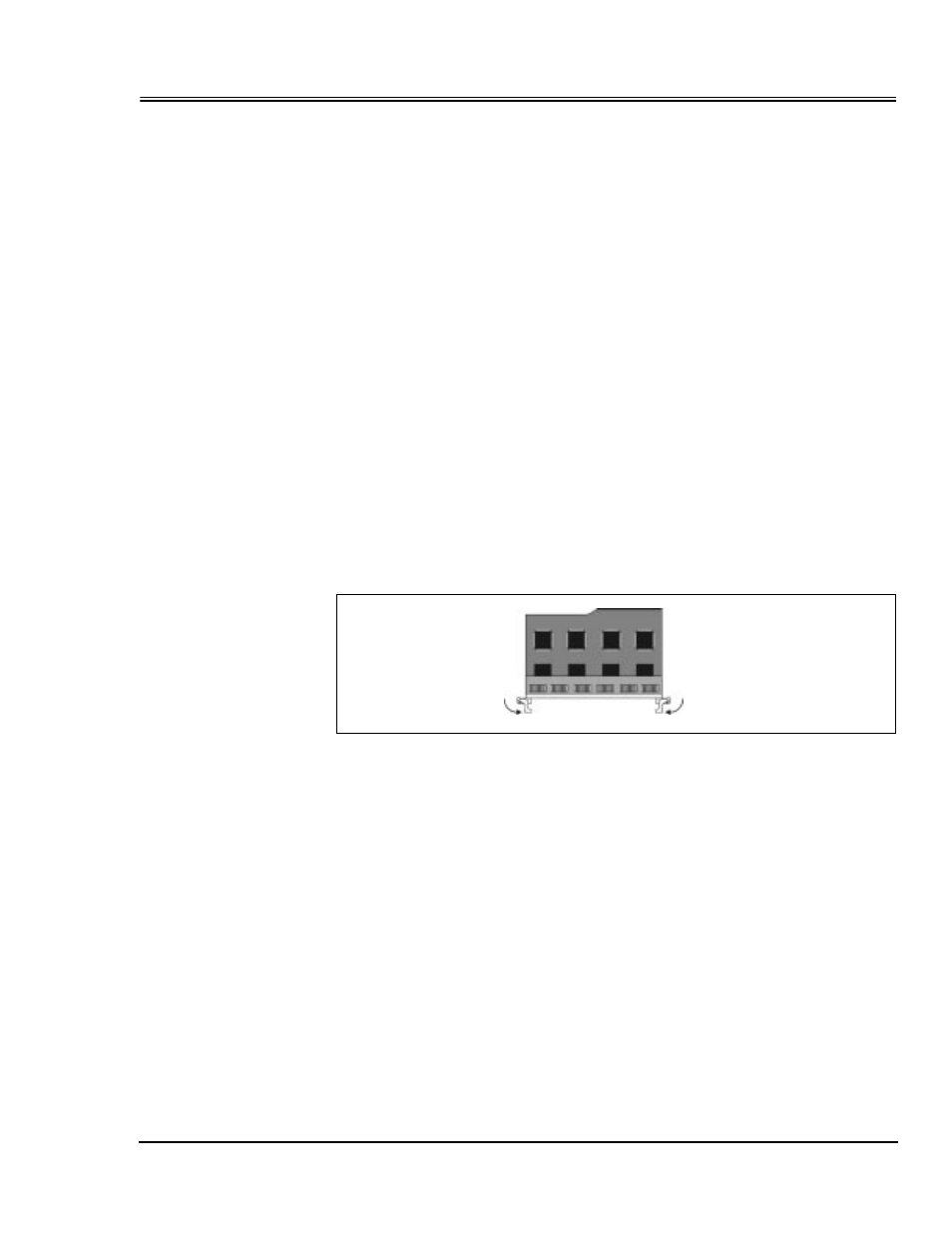

Figure 10-10: Line Card Ejectors - Closed Position
3.
Insert the line card all the way into the line card slot slowly and positively by
running the card through the guide rails. As shown in
, securely
