Installing the front cover, Removing the front cover, Installing the front cover -15 – Panasonic 1200N User Manual
Page 131
Modifications
Installing the Front Cover
Centillion 1200N ATM Switch User Manual
10-15
NTP 297-8103-903
Installing the Front Cover
This section explains the procedure for installing the front cover.
Installing the
Front Cover
1.
The front cover fit on the front of the main unit.

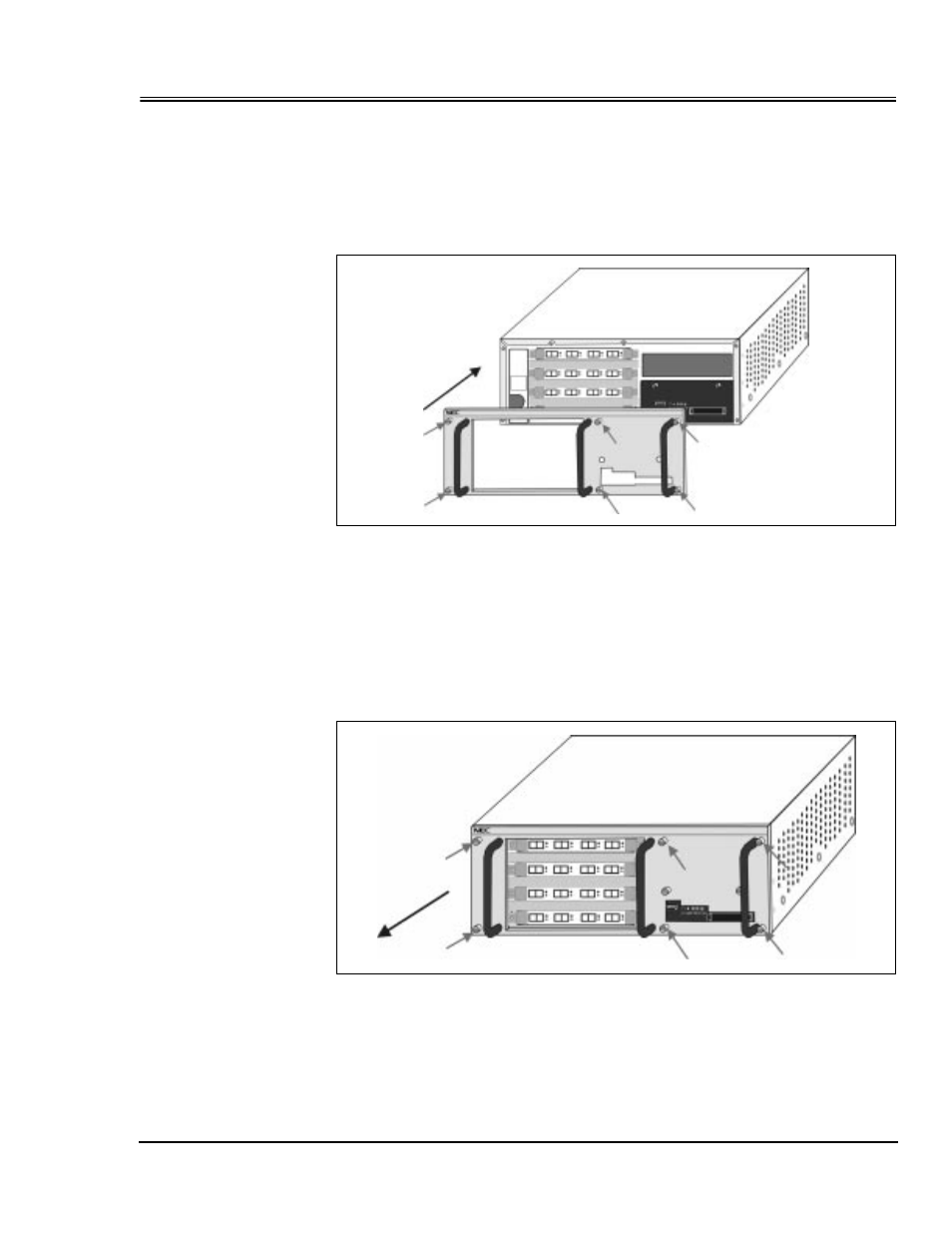

Figure 10-18: Installing the Front Cover
2.
Tighten the six screws of the front cover to securely fasten the front cover to
the main unit.
Removing the
Front Cover
1.
Remove the six screws of the front cover.
2.
Remove the front cover slowly.
Figure 10-19: Removing the Front Cover
