Maintenance and Operations

MAT and NMS

Centillion 1200N ATM Switch User Manual

9-5

NTP 297-8103-903

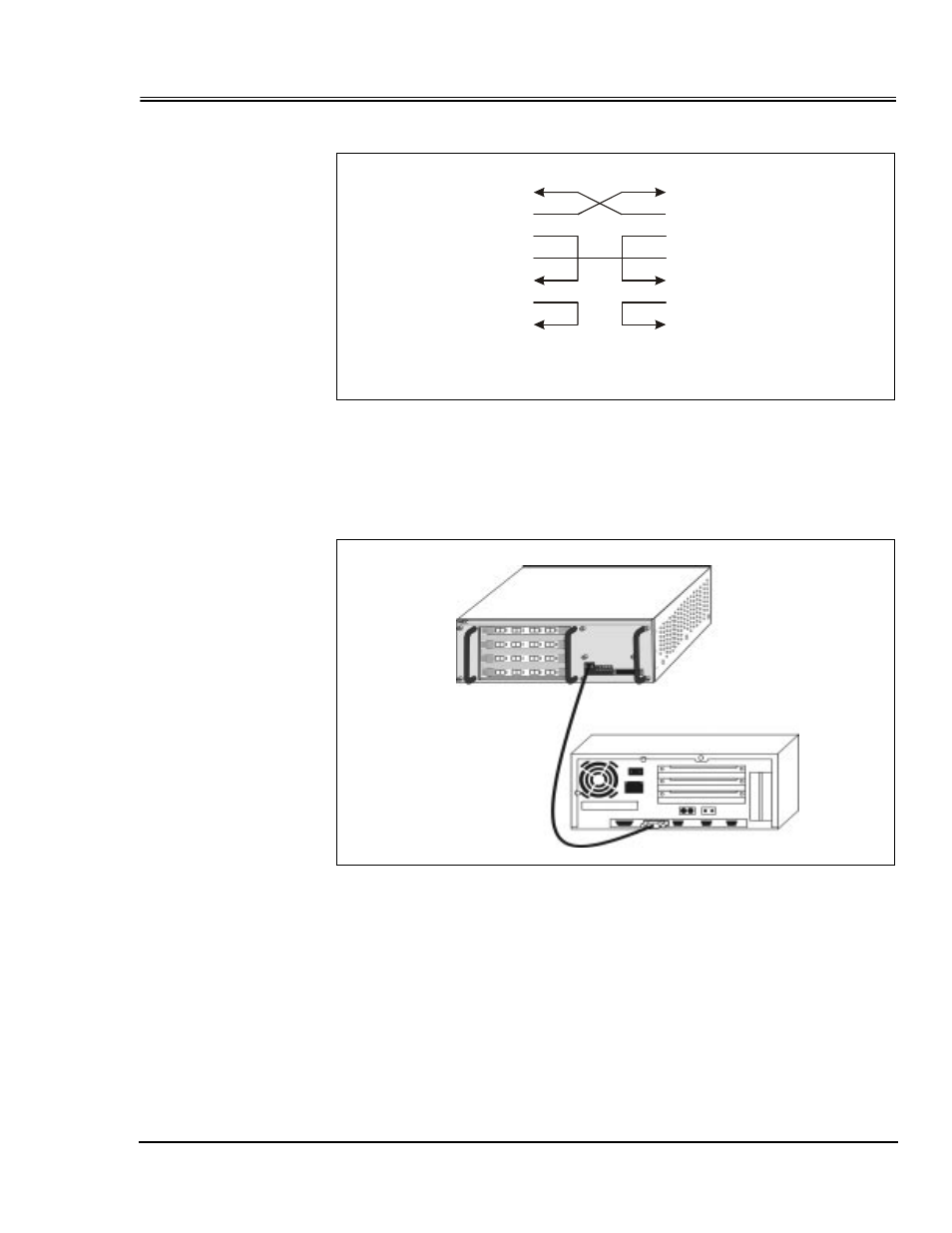

Figure 9-5: Connection with IBM-PC

Connection

The ATM Switch is equipped with a RS-232C connector on the front of the switch/
CPU card. The RS-232C cable may be inserted or removed whether or not power
is supplied to the ATM Switch.

Figure 9-6: Example of the ATM Switch MAT Connection

1 (D C D )
2 R xD

3 T xD
4 D T R

5 S G
6 D S R

7 R T S

8 C T S
9 (R I)

1 (D C D )
2 R xD

3 T xD
4 D T R

5 S G
6 D S R

7 R T S

8 C T S
9 (R I)

N E T

85 50

N E X

IB M -P C
