Nomenclature and Functions Description and Function of Components
Centillion 1200N ATM Switch User Manual 3-7
NTP 297-8103-903
Line Cards
■ 155 Mbps Multi-mode Line Card
■ 155 Mbps Single Mode (short) Line Card
■ 100 Mbps TAXI Line Card

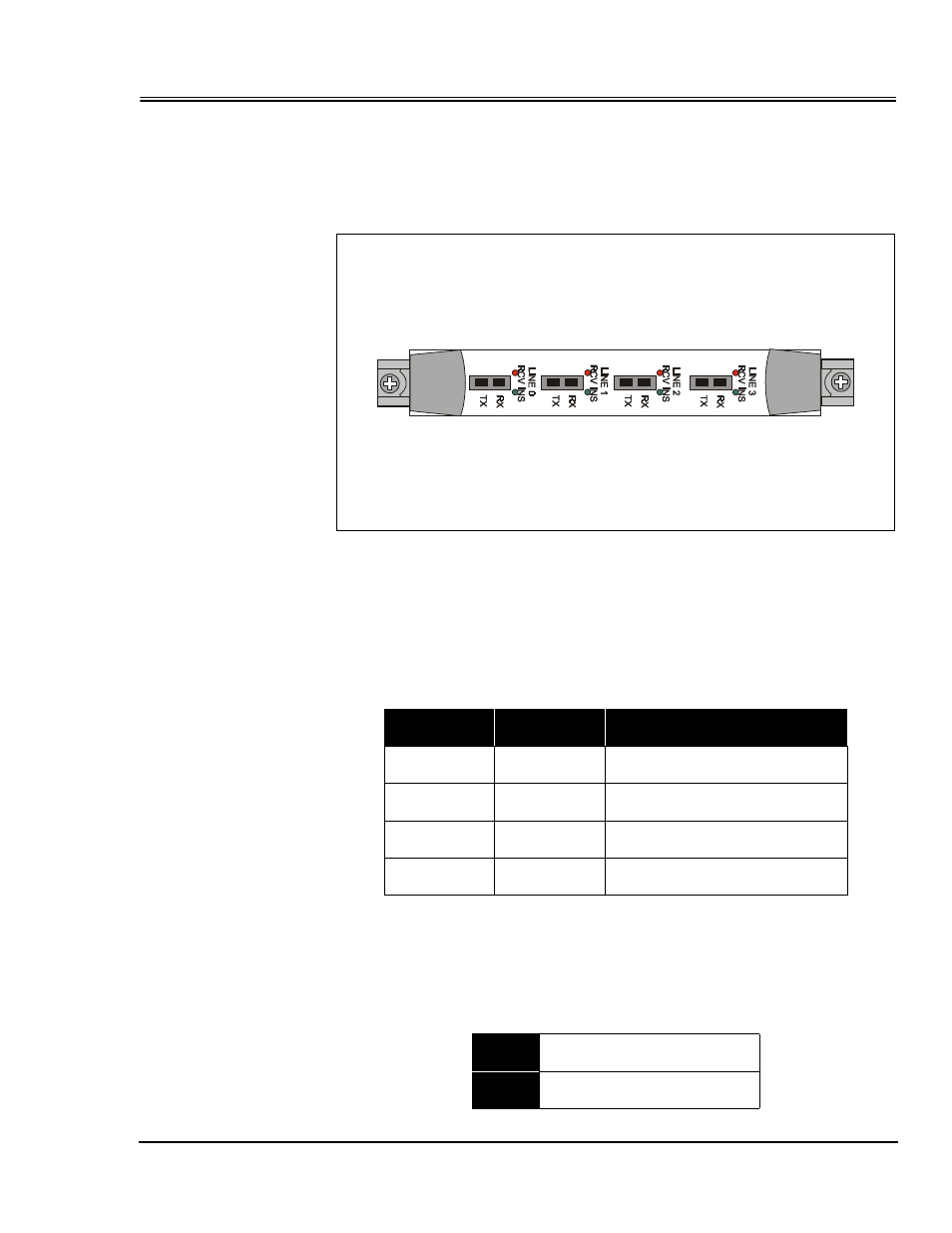

Figure 3-5: Front View of 155 Mbps Multi-Mode, 155 Mbps Single Mode
(Short), and 100 Mbps TAXI Line Card
RCV/INS
Available for each line, these lamps indicate the status of that particular line.
Rx/Tx
These codes indicate the reception side and transmission side of the SC connectors.
RCV (red) INS (green) Status
Off Lighted Line status normal
Lighted Off Line error (reception error)
Off Flashing Line error (transmission error)
Off Off Hardware error
Rx Reception side connector
Tx Transmission side connector
