Page 38: Ds3 line card and e3 line card -10
Description and Function of Components
Nomenclature and Functions
3-10
Centillion 1200N ATM Switch User Manual
NTP 297-8103-903
DS3 Line Card
and E3 Line Card

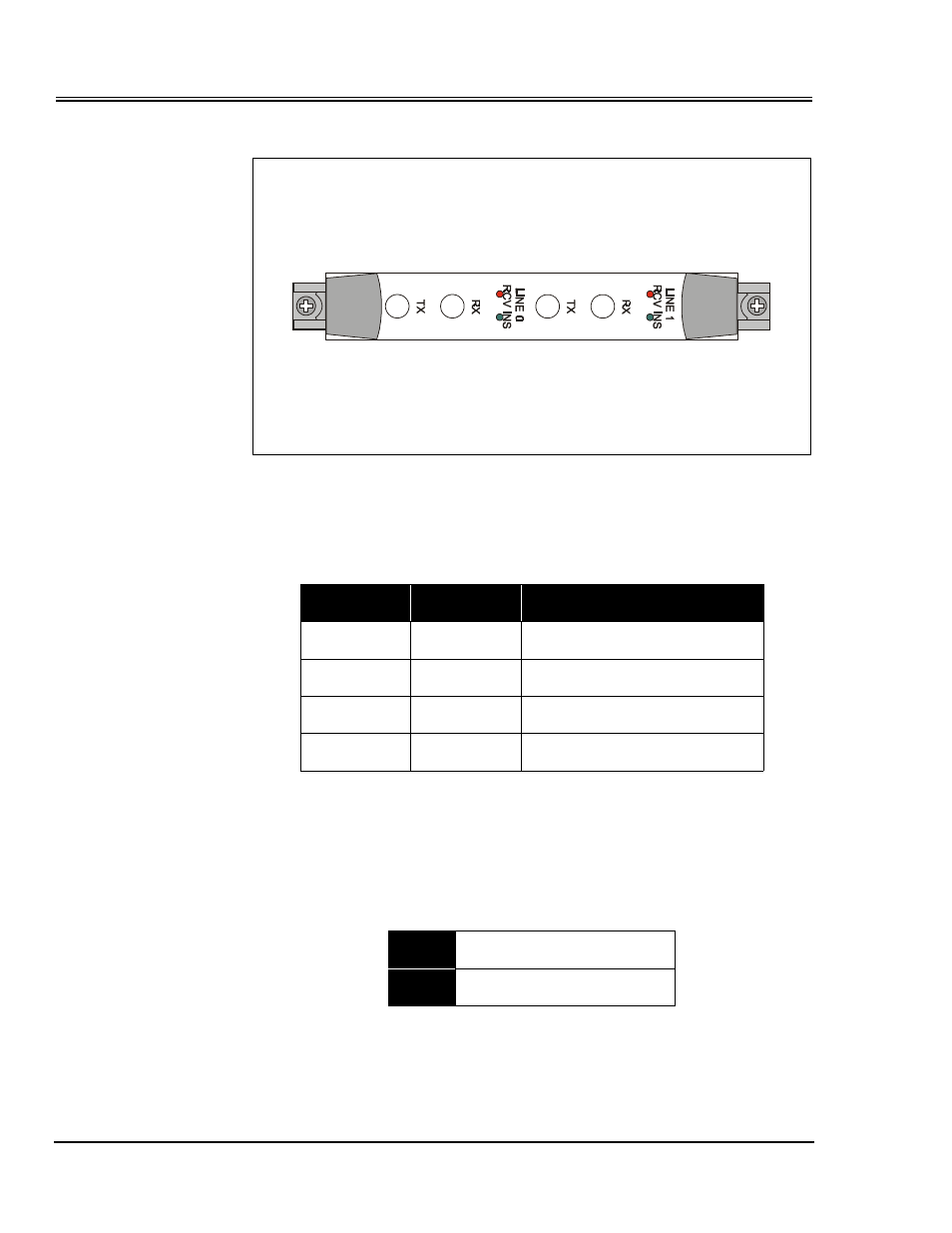

Figure 3-8: Front View of DS3 and E3 Line Card
RCV/INS
Available for each line, these lamps indicate the status of that particular line.
Rx/Tx
These codes indicate the reception side and transmission side of the BNC
connectors.
RCV (red)
INS (green)
Status
Off
Lighted
Line status normal
Lighted
Off
Line error (reception error)
Off
Flashing
Line error (transmission error)
Off
Off
Hardware error
Rx
Reception side connector
Tx
Transmission side connector
