Upgrading Software Modifications
10-22 Centillion 1200N ATM Switch User Manual
NTP 297-8103-903
INITIALIZE Mode
Load the software from the Ether network server connected via the LAN card
mounted in the PCMCIA slot #1. The office data is included in the software in the
initial setting status. The software and office data are not saved.

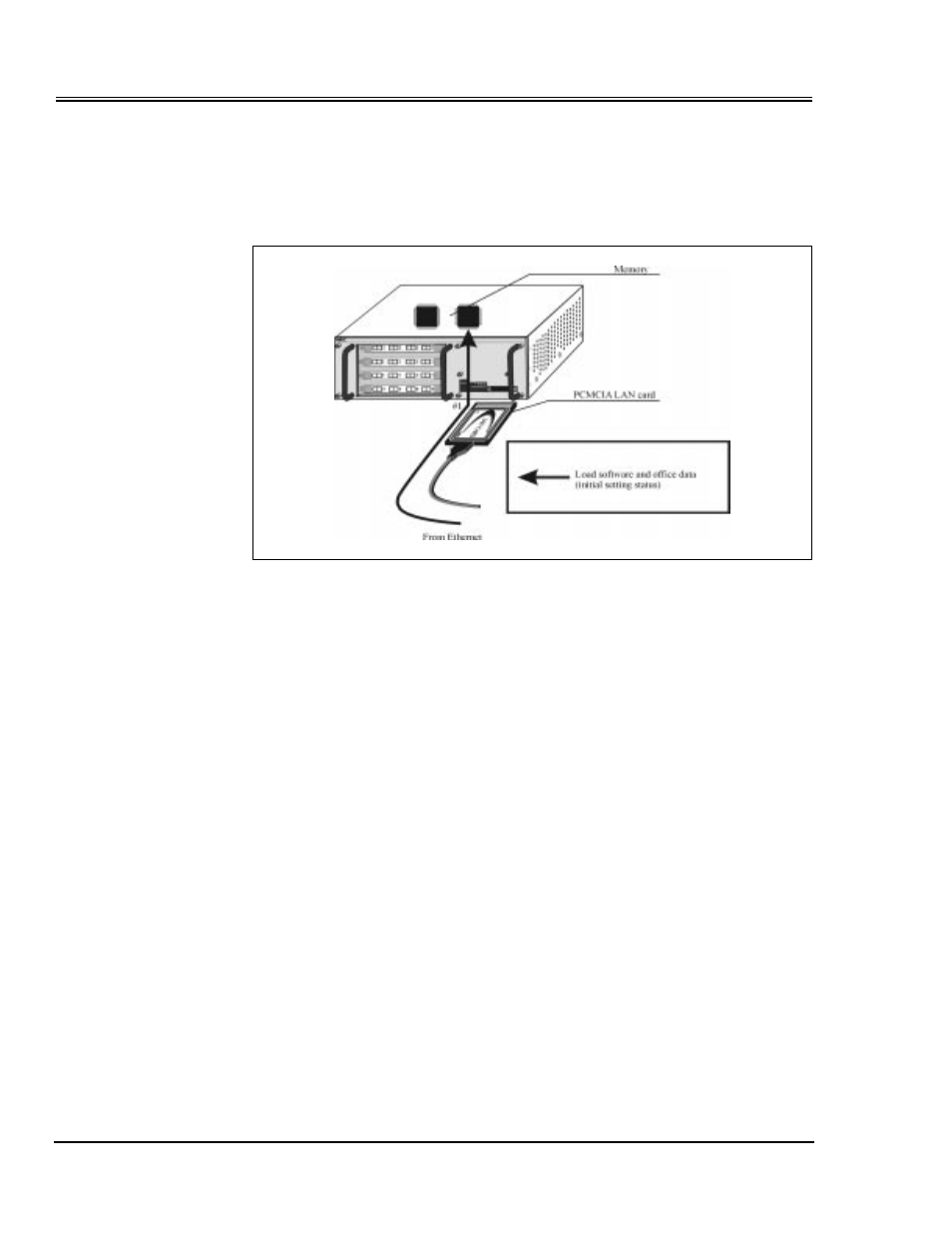

Figure 10-26: INITIALIZE Mode
Procedure
1. Turn off the power of the ATM Switch.
2. Insert into PCMCIA slot #1 the LAN card connected to the Ether network.
3. Turn on the power of the ATM Switch and start the boot monitor.
4. Set the IP address of the ATM Switch
BOOT# SET local ***.***.***.***
5. Set the server's IP address and boot file name.
BOOT# SET server ***.***.***.*** *****.bootfiles
6. Set the IP address of the default router.
BOOT# SET route ***.***.***.***
7. Set the boot mode as follows:
BOOT# SET boot initialize
8. End the boot monitor.
BOOT# QUIT
